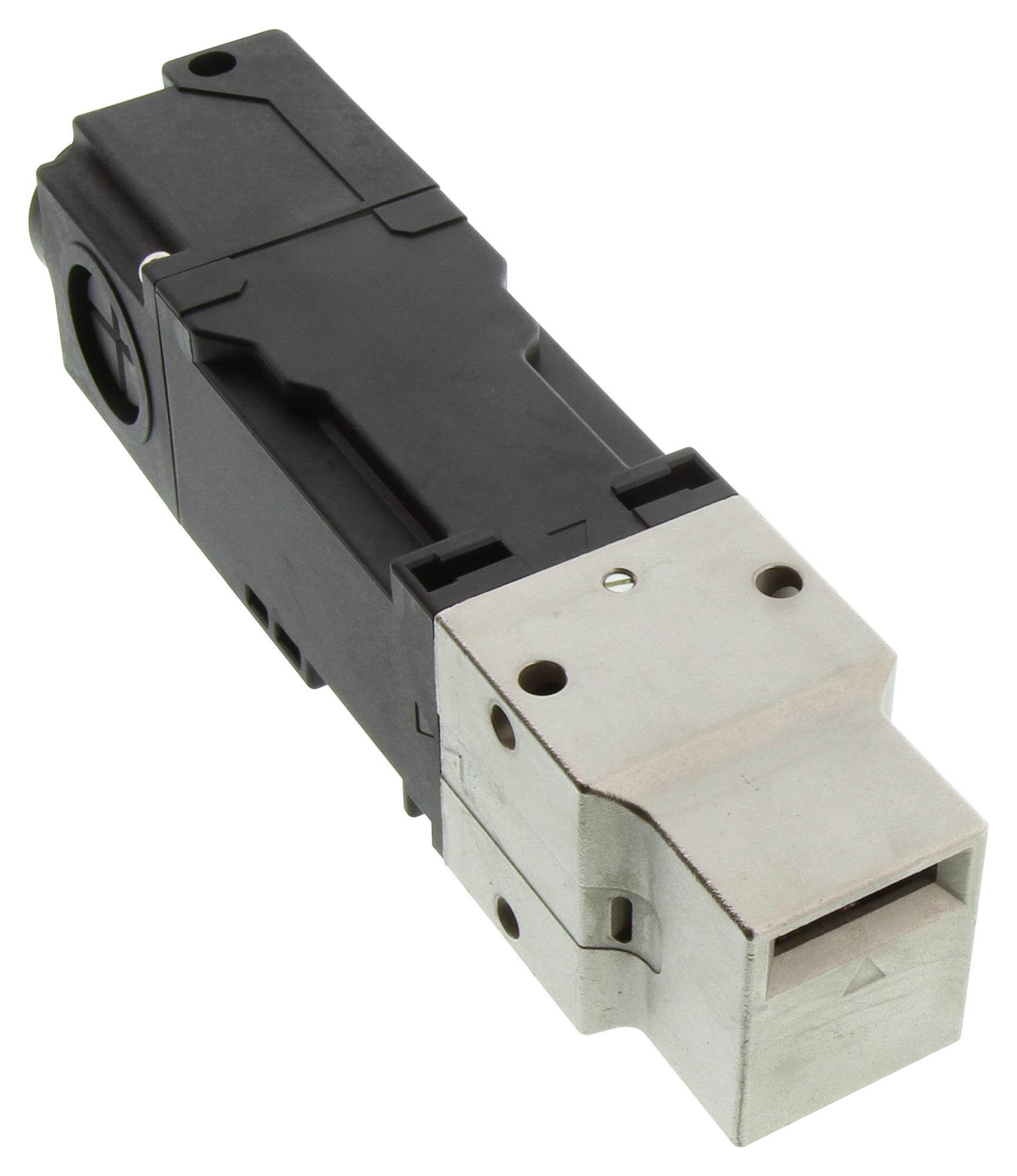

IDEC Corporation HS1TVA44ZSMG Safety Interlock Switch
The HS1T series includes safety interlock switches with solenoid locking, designed for industrial applications requiring high locking force up to 5000N. These switches feature rotating heads to change actuator entry direction easily, with a compact size—among the smallest in the industry. They support lock monitoring via integrated circuits, and feature manual unlocking and rear unlocking buttons for safety and emergency use. Suitable for large doors and equipment, these models operate reliably with high durability—up to 2 million cycles—and include side-conduit options with spring clamp terminals for vibration resistance. Ideal for systems needing robust security and safety monitoring.
IDEC Corporation HS1TVA44ZSMG Safety Interlock Switch Specifications:
- Operating Temperature: -25°C to +65°C (no freezing)
- Relative Humidity: 20 to 95% (no condensation)
- Storage Temperature: -40°C to +80°C (no freezing)
- Pollution Degree: 3
- Insulation Resistance: 100MΩ min. (500V DC megger)
- Degree of Protection: IP67, IP69K (dependent on model)
- Shock Resistance: 100m/s² (approximate)
- Vibration Resistance: 30Hz to 55Hz, amplitude 1.5mm
- Mechanical Durability: 2,000,000 cycles (spring lock), 100,000 cycles (solenoid lock)
- Electrical Durability: 2,000,000 cycles (24V AC/DC, 100mA)
- Rated Voltage: 30V, 125V, 250V (AC/DC)
- Rated Current: 2.58A (varies by model and contact configuration)
- Locking Force: Up to 5000N
- Contact Configuration: 2NC, 2NO, 3NO, 1NC/1NO (various models)
- Cable Connection: Spring clamp terminals adaptable for wire sizes AWG22 to AWG16
- Size/Dimensions: Compact size with standard mounting hole layouts; specific dimensions vary by model
- Materials: Metal and high-strength plastics, heat-resistant cables included
- Standards Compliance: EN ISO 14119, UL, c-UL, CSA, IEC60947-5-1, GS-ET-19
Buy the IDEC HS1TVA44ZSMG – Reliable Safety Interlock for Industrial Applications
Secure your industrial safety system with the IDEC HS1TVA44ZSMG interlock switch. Its high locking force, lock monitoring, manual and emergency unlocking features ensure reliable operation in demanding environments. Compact and durable, this switch supports large door safety, provides easy head rotation for flexible installation and features vibration-resistant terminals. Order online now to upgrade your safety system with a proven, high-performance interlock switch designed to meet international standards and ensure operator safety in your manufacturing process.
Buy IDEC HS1TVA44ZSMG now and experience unmatched reliability and safety monitoring in industrial environments.
Frequently Asked Questions
Where can I buy IDEC Corporation HS1TVA44ZSMG?
You can click on the BUY or RFQ button to purchase HS1TVA44ZSMG from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part HS1TVA44ZSMG?
You can download the HS1TVA44ZSMG datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of HS1TVA44ZSMG?
IDEC Corporation
