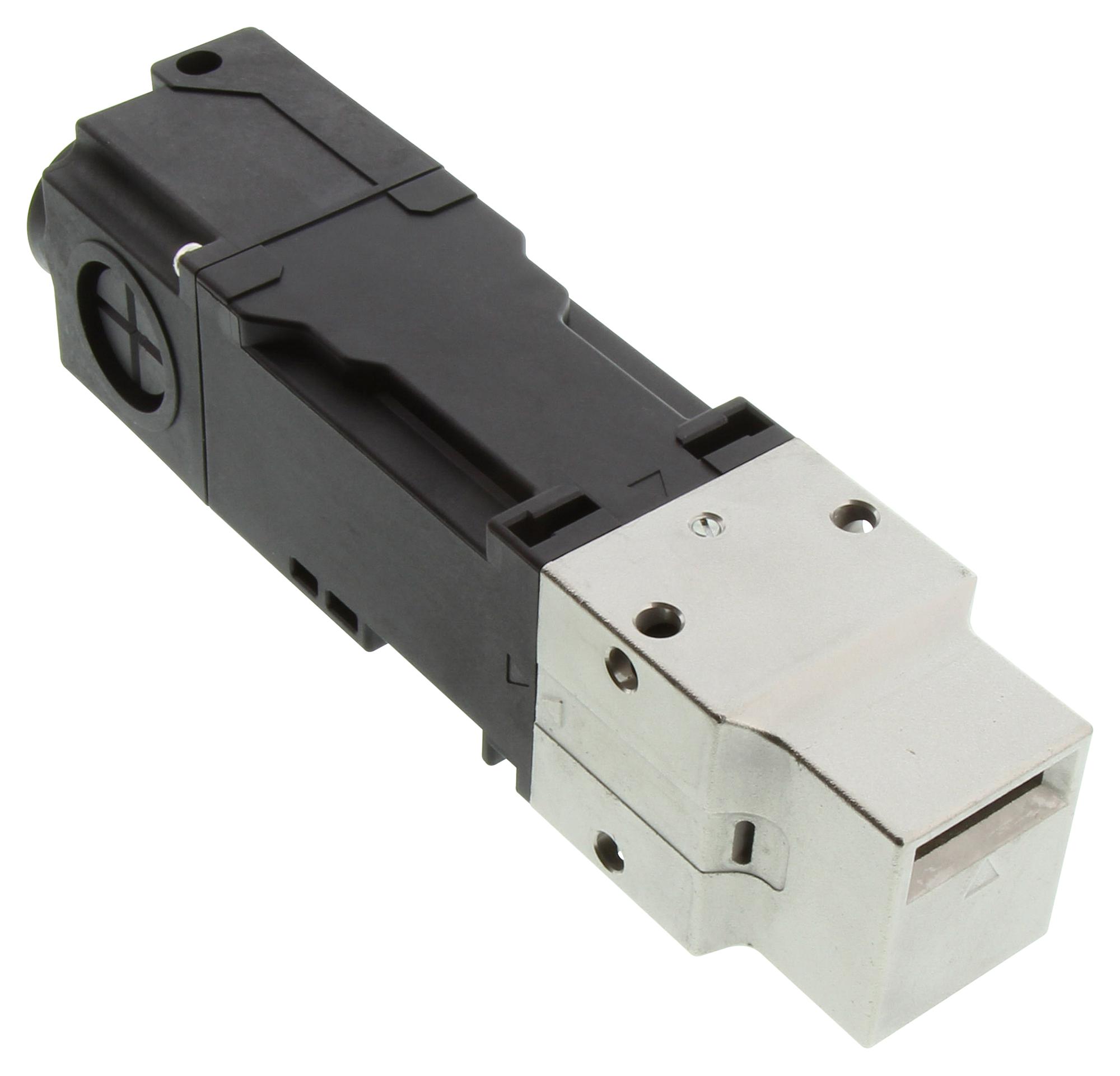

IDEC Corporation HS1TVD44ZSMG Interlock Switch
The HS1T series interlock switches with solenoid provide reliable door locking solutions for industrial safety applications. Featuring either spring or solenoid lock mechanisms, these switches offer high locking force of 5000N, compact size, and head rotation for easy actuator entry direction change. They include lock and door monitoring contacts, manual unlocking, rear unlock buttons, and are compliant with international safety standards such as EN ISO 14119. Suitable for large doors and equipment requiring strong locking force, these modules are energy-efficient, durable, and fitted with vibration-resistant spring clamp terminals for robust wiring connections.
IDEC Corporation HS1TVD44ZSMG Interlock Switch Specifications:
- Locking Force: 5000N
- Contact Configuration: 2NC, 2NO, 3NC, 3NO options
- Power Supply: 24V AC/DC (typical), 30V rated voltage
- Electric Durability: 2,000,000 cycles (Spring Lock), 100,000 cycles (Solenoid Lock)
- Residual Lock Monitoring: Marked for lock monitoring (EN ISO 14119 compliant)
- Insulation Resistance: 100MΩ min. (500V DC megger)
- Degree of Protection: IP67 (IEC60529)
- Operating Temperatures: -25°C to +65°C (No freezing)
- Vibration & Shock Resistance: 30Hz, 100m/s² damage, 1000m/s² damage limits
- Material: Metal and plastic components, rubber bushings on actuators
- Dimensions: 114mm length; compatible with various actuator orientations
- Wiring: Spring clamp terminals suitable for AWG22, 16 stranded or solid wire
- Certifications: EN ISO 14119, UL, CSA, and TÜV approvals
- Mechanical Durability: 2 million operations
- Operating Speed: 0.05 to 1.0 m/s
- Applicable Standards: EN ISO 14119, IEC 60947-5-1, UL, CSA
- Additional Features: Head rotation for entry direction change, lock status indicator, compatible with large doors
Buy the IDEC HS1T – Reliable Interlock Switches with Solenoid for Industrial Applications
Purchase IDEC HS1T interlock switches with solenoid today online to enjoy high locking force, robust safety monitoring, easy rotation head, manual and rear unlocking options, and compliance with international safety standards. Designed for industrial doors and machinery requiring strong locking mechanisms, these durable, energy-efficient modules provide reliable safety assurance and simplified wiring with vibration-resistant terminals. Secure your safety solutions now with swift online ordering and benefit from a proven industrial component for demanding safety environments.
Buy IDEC HS1T interlock switches with solenoid now and ensure high safety, durable locking, and easy installation for large doors and equipment.
