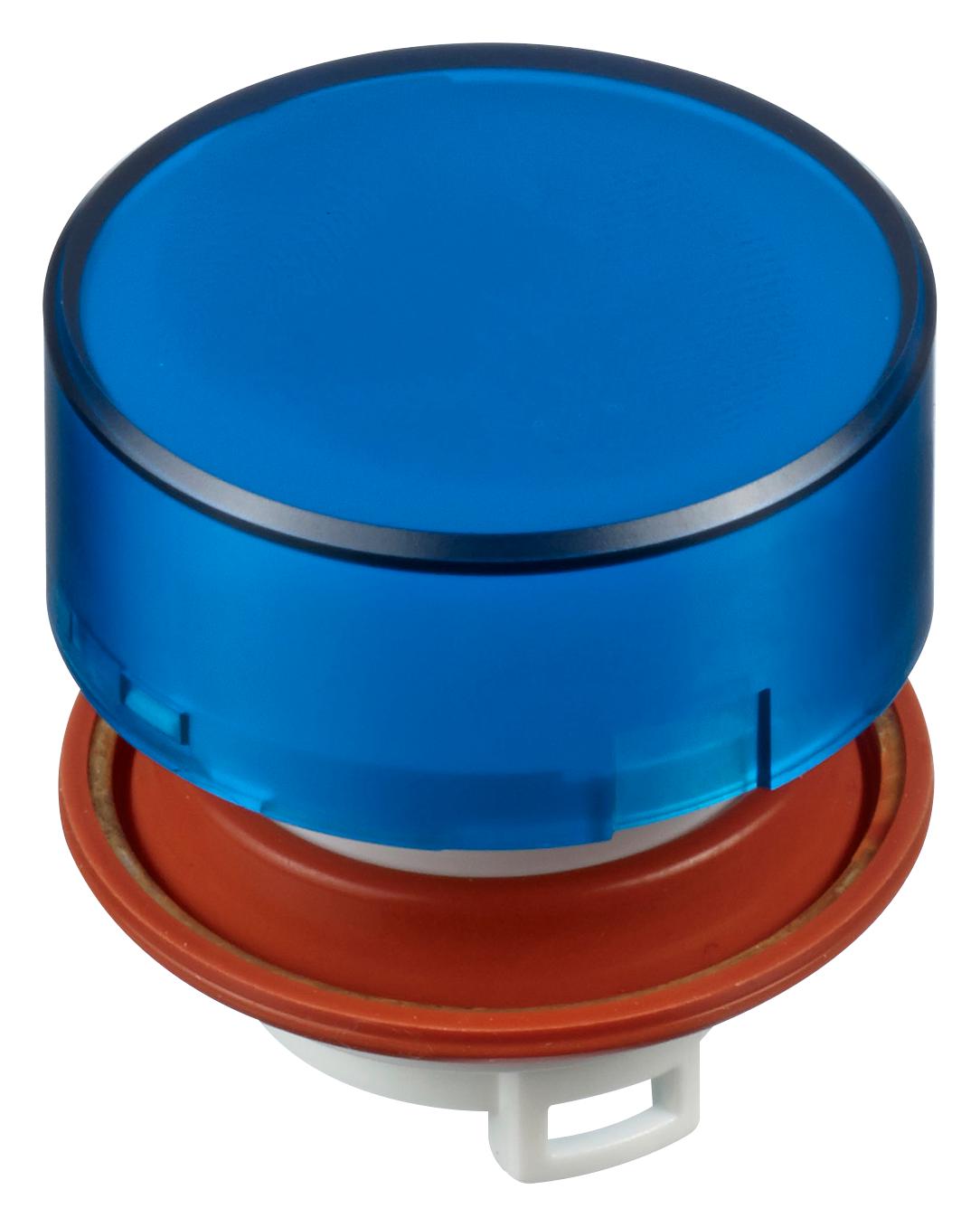

IDEC Corporation HW1AL2S Industrial Pushbutton Switch
The HW series pushbuttons and E-stop switches are rugged, high-quality control components designed for global use in industrial automation. Incorporating finger-safe IP20 contacts, safety locking levers, and tamperproof construction, these switches meet international standards including EN418 and SEMI S2. They are available with incandescent or LED illumination, various contact configurations, and different bezel materials. Suitable for panel mounting, they ensure reliable operation in demanding environments, with comprehensive approvals such as UL, CSA, TUV, and CE, making them ideal for controlling machinery, emergency stops, and process automation across worldwide applications.
IDEC Corporation HW1AL2S Industrial Pushbutton Switch Specifications:
- Operating Voltage: 600V rated insulation voltage, various for switch types
- Electrical Ratings: AC-15 up to 600V at 10A, DC-13 up to 125V at 1.1A
- Contacts: 1NO-1NC, 2NO, 2NC, 2NO-2NC configurations, fingersafe IP20 contacts standard
- Illumination: Incandescent (1W), LED options available (6V/12V/24V/120V/240V AC/DC)
- Material: Black or metallic bezels, plastic or metal operator handles, silicone covers IP65 for protection
- Environmental: Operating temperature -25°C to +50°C, vibration resistance 10-55Hz, shock resistance conforming to IEC standards
- Standards & Approvals: UL508, CSA, TUV, CE, SEMI S2, EN60947-5-5, EN60947-1
- Dimensions: Switches are 22mm in diameter, panel cutout approximately 29mm, with various mounting depth options
- Certifications: UL Listed, CSA Certified, CE marked, IEC conformity
- Mounting: Panel thickness 0.8mm to 6mm, using locking rings and optional anti-rotation rings for secure installation
- Additional Features: Tamperproof EN compliance, mechanical safety locking, switch contact self-cleaning, slow make/break contacts, and wide approval coverage.
Buy the Buy HW Series Pushbutton Switch Part Number HW1AL2S Online
Purchase HW series pushbutton switches online to ensure reliable control in machinery, emergency stops, and automation systems. Designed with finger-safe IP20 contacts, these switches meet global standards including UL, CSA, TUV, and CE, providing excellent safety and quality. They are available with incandescent or LED illumination and various contact configurations to suit your application. Easy panel mounting with secure locking rings and tamperproof design guarantees safety and durability. Order now for fast delivery and robust performance that withstands demanding industrial environments.
Get HW series pushbutton switches today—built for precision and long-lasting durability in industrial automation applications.
Frequently Asked Questions
Where can I buy IDEC Corporation HW1AL2S?
You can click on the BUY or RFQ button to purchase HW1AL2S from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part HW1AL2S?
You can download the HW1AL2S datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of HW1AL2S?
IDEC Corporation
