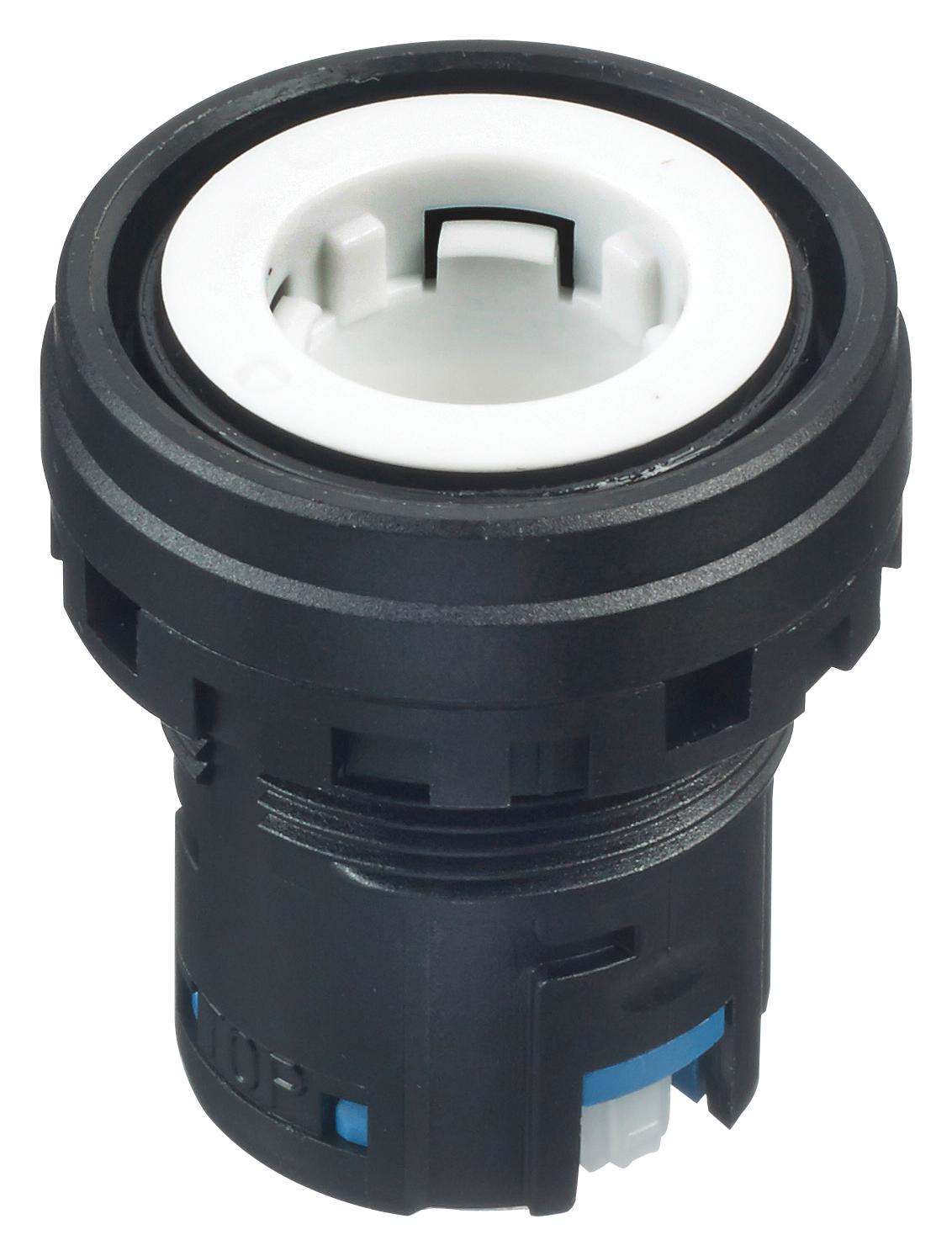

IDEC Corporation HW1F3 Industrial Control Switch
The HW series is a range of industrial pushbuttons, selector switches, and emergency stop switches designed for worldwide applications. These switches feature finger-safe IP20 contacts, tamper-proof construction, and are UL, CSA, CE, TUV, and SEMI S2 approved. They include illuminated and non-illuminated options with incandescent or LED lamps, transformer or full voltage operation, and are suitable for panel installations with easy assembly, lockable levers, and various bezel styles in plastic or metal. They are engineered for safety, durability, and compliance with international standards, offering multiple contact and mounting configurations for industrial control systems.
IDEC Corporation HW1F3 Industrial Control Switch Specifications:
- Flammability: UL 94V-0
- Contact Material: Copper Alloy, Silver contacts available
- Temperature Rating: -25°C to +50°C for operation, -40°C to +70°C storage
- Rated Insulation Voltage: 600V
- Rated Operational Characteristics: AC-15 up to 250V, DC-13 up to 125V; switching current 0.9A to 3A depending on mode
- Rated Impulse Withstanding Voltage: 2.5kV lamp circuit, 4kV contact circuit
- Minimum Switching Capacity: 5mA at 3V AC/DC
- Electrical Reliability: MTBF over 10 million cycles at specified load
- Vibration Resistance: 10-55Hz, 98 m/sec², IEC standard
- Shock Resistance: 980 m/sec², IEC standard
- Mechanical Life: 900,000 to 5,000,000 operations depending on switch type
- Degree of Protection: IP20 standard, IP65 with silicon cover
- Approval Standards: UL508, CSA C22.2, EN60947-5-1, IEC 60947-1, IEC 60947-5-1, SEMI S2
- Contact Ratings: up to 10A at 600V AC, 3A DC depending on contact type
- Vibration and Shock Resistance conform to IEC standards
- Physical Dimensions: depend on model (typically 22mm diameter), detailed in catalog pages
Buy the Buy IDEC Industrial Control Switch Part Number HW1F3 Online
Order the IDEC HW1F3 control switch online today for reliable operation with easy assembly, international approvals, and a selection of illuminated or non-illuminated options built to meet industrial safety standards. This switch offers tamper-proof, finger-safe contacts, lockable levers, multiple contact configurations, and robust construction for demanding environments. Enhance your control panel with a durable, compliant switch that ensures safety, precision, and ease of maintenance, all available for quick purchase and shipment from authorized distributors.
Get IDEC HW1F3 today—built for precision and long-lasting durability in industrial settings.
Frequently Asked Questions
Where can I buy IDEC Corporation HW1F3?
You can click on the BUY or RFQ button to purchase HW1F3 from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part HW1F3?
You can download the HW1F3 datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of HW1F3?
IDEC Corporation
