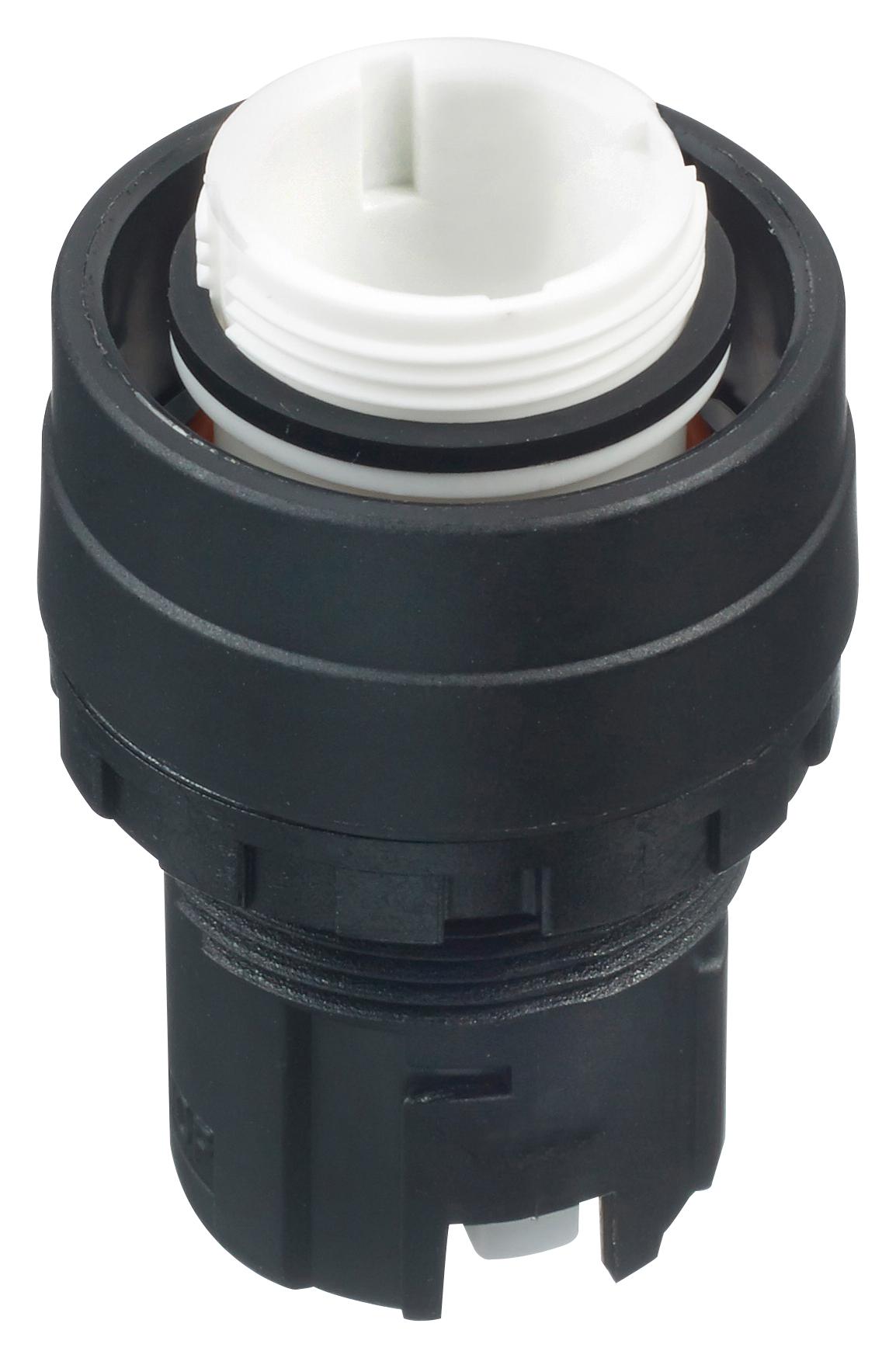

IDEC Corporation HW1LM0L Industrial Control Switch
The HW series control units feature pushbuttons, selector switches, emergency stop buttons, and pilot lights suitable for industrial applications. These devices are designed for panel mounting with various contact configurations, including illuminated and non-illuminated options, with IP40 or IP65 protection levels when used with covers. They meet international standards such as UL, CSA, and IEC, and incorporate features like tamperproof operation, mechanically keyed safety locking levers, and finger-safe contacts. Suitable for automation, power management, and safety systems, these switches are engineered for durability and reliable performance in demanding environments.
IDEC Corporation HW1LM0L Industrial Control Switch Specifications:
- Panel Cutout Diameter: 22mm
- Contact Configurations: 1NO, 1NC, 2NO, 2NC, 2NO-2NC, up to 6 contacts in some models
- Protection Degree: IP40 standard, IP65 with covers
- Voltage Ratings: 6V to 480V AC/DC, full voltage and transformer options available
- Current Ratings: Up to 10A for switching, smaller currents for control and signaling
- Insulation Voltage: 600V
- Switching Capacity: Up to 1/2 HP at 125V, 240V as per standards
- Material: Contact blocks with fingersafe and exposed screw types, bezels in plastic and metal options
- Standards & Approvals: UL, CSA, IEC, TUV, SEMI S2, EN60947-5-5
- Operating Temperature: -25°C to +50°C, storage: -40°C to +70°C
- Vibration Resistance: 10-55Hz, 98m/sec²
- Shock Resistance: Conforming to IEC standards
- Mechanical Life: 500,000 to 10 million cycles depending on model
- Utilization Categories: AC-15, DC-13, control resistive loads, electromagnets
Buy the IDEC HW Series U+2013 Reliable Industrial Control Switch for Power and Safety Applications
Discover the IDEC HW series control switches designed for demanding industrial environments. Featuring a wide range of pushbuttons, selector switches, emergency stops, and pilot lights, all compliant with international standards. These switches offer durable finger-safe contact blocks, IP65 protection with covers, and options for various voltage and contact configurations. Ideal for automation, power management, and safety applications, they ensure safe, reliable operation with easy panel mounting and tamperproof features—perfect for heavy-duty industrial use.
Buy IDEC HW series control switches now and experience unmatched reliability and performance in industrial automation and safety systems.
Frequently Asked Questions
Where can I buy IDEC Corporation HW1LM0L?
You can click on the BUY or RFQ button to purchase HW1LM0L from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part HW1LM0L?
You can download the HW1LM0L datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of HW1LM0L?
IDEC Corporation
