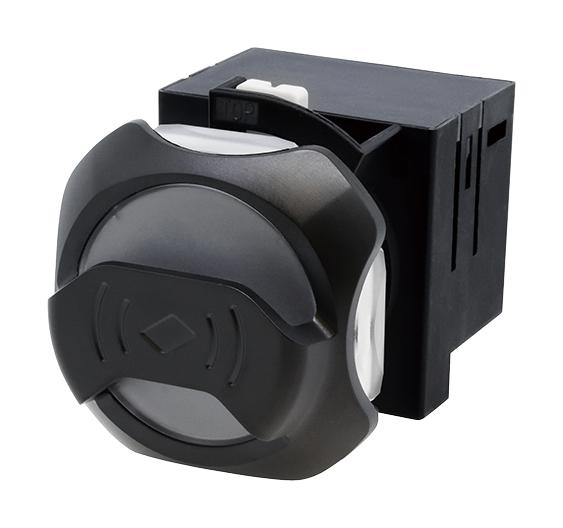

IDEC Corporation KW2DRH100Q4E Industrial RFID Reader
The KW2D-RH100Q4E is a compact, lightweight RFID reader optimized for industrial environments. It features a 13.56 MHz HF module supporting ISO/IEC14443 Type A, Type F, and ISO/IEC15693 standards, with a read distance up to 15mm depending on tag type. Equipped with an Ethernet port supporting Modbus TCP, it enables seamless PLC and HMI integration. The device has push-in terminals for safety wiring, LED indicator, buzzer for status notifications, and robust IP65/IP67 ratings for water, dust, and oil resistance. Ideal for factory automation and metal surface applications, it supports various RFID tags including key fobs and cards with enhanced encryption, and comes with configuration software for easy setup.
IDEC Corporation KW2DRH100Q4E Industrial RFID Reader Specifications:
- Operating Frequency: 13.56MHz
- Standards Supported: ISO/IEC14443 Type A, A(1-4), ISO/IEC18092 (Type F), ISO/IEC15693
- Read Distance: Up to 15mm (dependent on tag type)
- Environmental Rating: IP65/IP67
- Connection: Ethernet (Modbus TCP), push-in terminals
- Indicators: Red/Green/White LEDs, buzzer
- Dimensions: Compact size suitable for panel mounting
- Power Supply: 24V DC, 2W maximum
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -25°C to 75°C
- Humidity Range: 20% to 90% RH
- Supported Tags: Key fobs, cards with encryption
- Software Support: Free configuration tool for setup and customization
Buy the IDEC Series KW2D RFID Reader: KW2DRH100Q4E
Order the IDEC KW2DRH100Q4E RFID reader today for reliable industrial identification. Its robust IP65/IP67 rating ensures operation in dusty, wet, and oily factory conditions. Easy Ethernet integration via Modbus TCP, plus security features, make it perfect for factory automation. The compact design fits easily into control panels, offering quick setup with software support. Enhance your production line with secure, high-performance RFID reading technology that withstands demanding environments. Purchase online now for fast delivery and seamless installation assistance.
Get IDEC KW2DRH100Q4E today—built for industrial automation, water-proof design, and secure RFID identification for challenging environments.
Frequently Asked Questions
Where can I buy IDEC Corporation KW2DRH100Q4E?
You can click on the BUY or RFQ button to purchase KW2DRH100Q4E from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part KW2DRH100Q4E?
You can download the KW2DRH100Q4E datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of KW2DRH100Q4E?
IDEC Corporation
