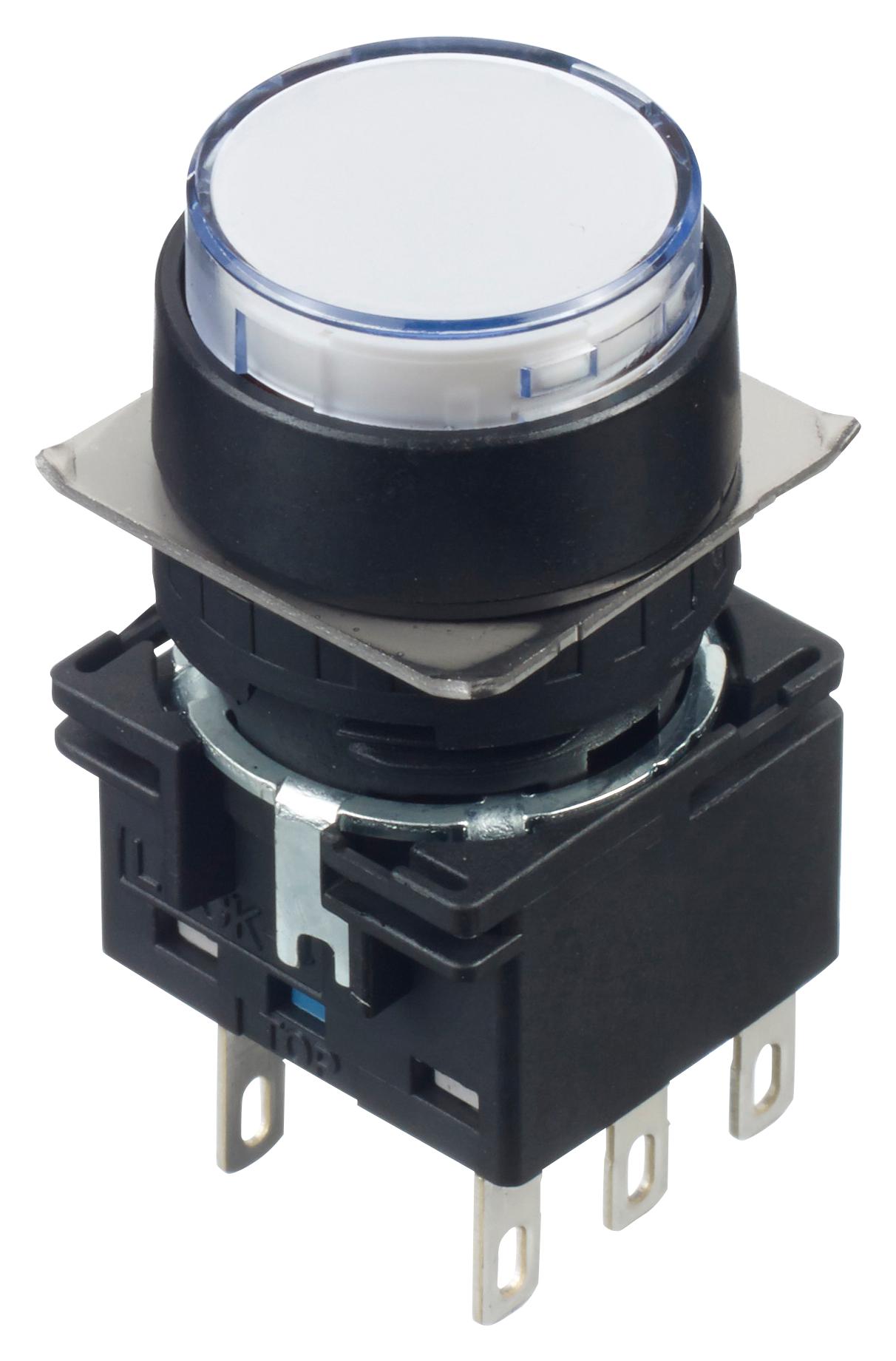

IDEC Corporation LB1BA1T6LW Miniature Switch
The LB1BA1T6LW is a 16mm miniaturized switch designed for sleek panel integration, featuring a durable construction, IP65 protection, and LED illumination. It offers versatile contact configurations, including SPDT, DPDT, and 3PDT, with options for gold or high-capacity silver contacts. Ideal for space-saving applications, this switch supports various mounting methods and allows custom legends through engraving or films. Its compact size and high protection rating make it suitable for industrial control panels requiring reliable, stylish, and illuminated switching solutions.
IDEC Corporation LB1BA1T6LW Miniature Switch Specifications:
- Size: 16 mm diameter
- Protection Degree: IP65 (IEC 60529)
- Contact Types: SPDT, DPDT, 3PDT (gold or silver contacts)
- Operation: Maintained or spring return (two-way, three-position)
- Illumination: LED with various color options (amber, green, white, red, blue, yellow)
- Panel Thickness: 0.5 to 3.2 mm
- Mounting: Snap-in or panel mounting with optional guards
- Power Supply: 24V AC/DC or 5V DC, 12V AC/DC (LED), specify in part number
- Protection: IP65 with optional switch guard, IP40 without guard
- Material: Plastic bezel, metal contacts, sealed for dust and water resistance
- Standards: UL, CSA recognition, IEC 60947-5-1 compliant
- Operating Temperature: -25°C to +60°C
- Mechanical Life: 50,000 to 100,000 operations depending on contact type
- Electrical Life: 50,000 operations under rated load
Buy the IDEC Series Miniature Switch: LB1BA1T6LW
Enhance your control system with the IDEC LB1BA1T6LW miniature switch. Featuring LED illumination, dust-proof IP65 protection, and versatile contact options, this 16mm switch is perfect for compact, high-reliability applications. Its stylish, easy-to-mount design ensures seamless integration into industrial panels. Choose from various color options and configurations to match your specific needs. Order online now to enjoy fast delivery and superior quality, ensuring long-lasting, efficient operation of your automation or control setups.
Get IDEC LB1BA1T6LW mini switch today—built for durability, sleek design, and reliable illumination in space-constrained control panels.
Frequently Asked Questions
Where can I buy IDEC Corporation LB1BA1T6LW?
You can click on the BUY or RFQ button to purchase LB1BA1T6LW from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part LB1BA1T6LW?
You can download the LB1BA1T6LW datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of LB1BA1T6LW?
IDEC Corporation
