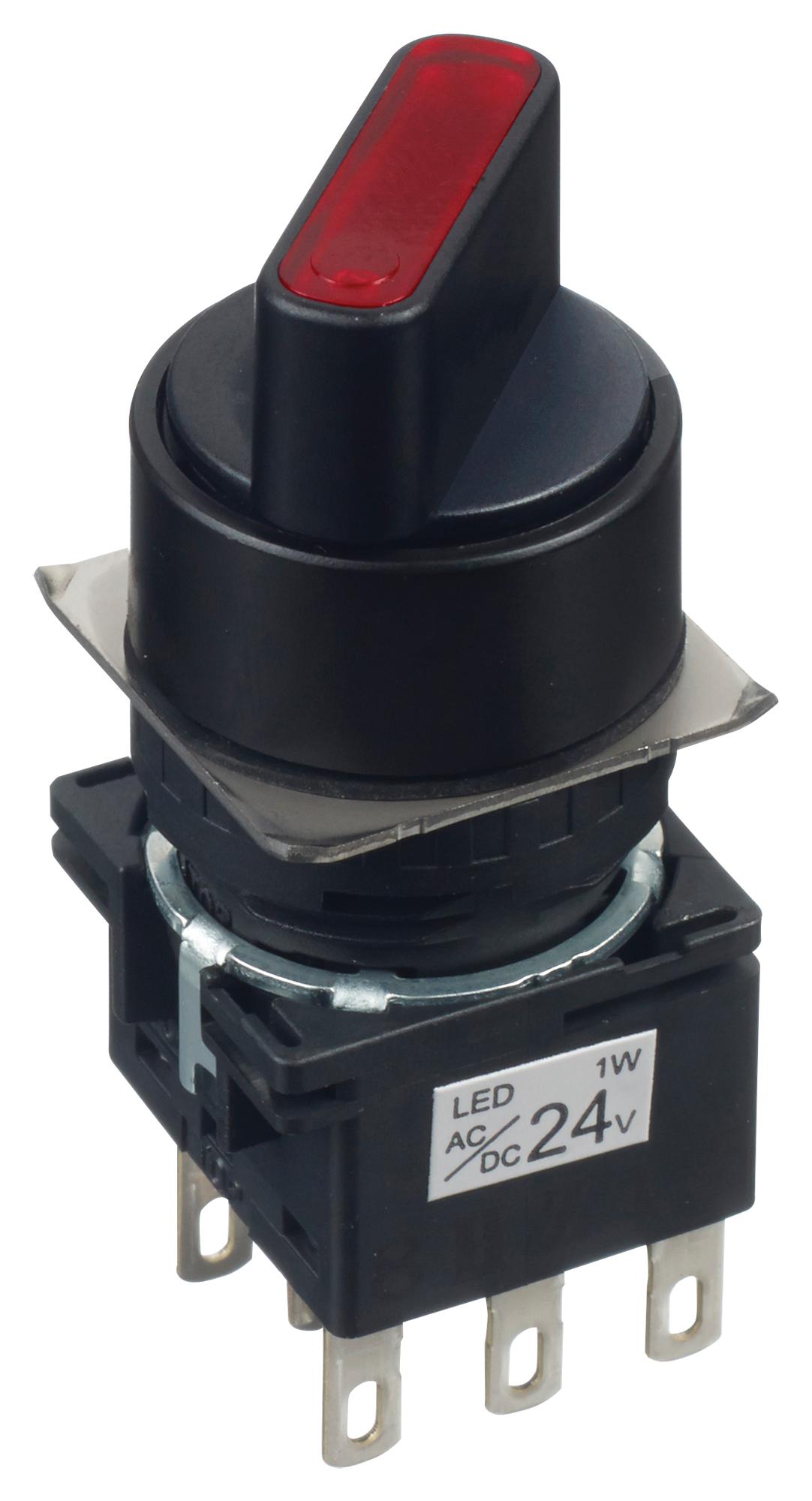

IDEC Corporation LB1F2T64R Pushbutton Switch
The LB series is a versatile line of flush and non-illuminated pushbuttons, pilot lights, selector switches, and key selector switches, designed for panel mount applications. Featuring IP65 protection, these switches offer a slim profile with a 27.9mm depth, making them ideal for small control panels and machinery. They include removable contact blocks suitable for single board mounting, with options for gold or silver contacts and various color and lens configurations. Suitable for industrial environments, the LB series ensures durability, reliable operation, and flexible customization for diverse control system needs.
IDEC Corporation LB1F2T64R Pushbutton Switch Specifications:
- Protection Degree: IP65 (IEC 60529)
- Panel Thickness: 0.5 to 3.2 mm
- Profile Depth: 27.9 mm
- Contact Material: Gold or Silver contacts
- Operation Types: Maintained, Spring return
- Contact Configurations: SPST, SPDT, DPST, DPT, 3PDT
- Lens Colors: Amber, Green, Red, Blue, White, Yellow
- Bezel Materials: Black plastic, Metallic
- Lumination: LED units with 30,000 hours life expectancy
- Operating Temperature: -25 to +60°C, illuminated units -25 to +55°C
- Operating Humidity: 45-85% RH (no condensation)
- Switch Rating: Max 3A at 250V AC, 5V DC min load 1 mA
- Dimensions: Panel mounting hole dia. 23.2mm for standard, 24mm for rectangular, with mounting hole layout as specified.
- Mechanical Life: Maintained switches 250,000 operations; momentary switches 50,000–100,000 operations
- Vibration & Shock Resistance: Meets IEC standards
- Standards Compliance: UL508, CSA, TUV Rheinland, EN60947-5-1, GB14048.5
Buy the IDEC Series Switches & Pilot Lights: LB1F2T64R
Purchase your IDEC SeriesLB1F2T64R pushbutton switch online today. This industrial-grade control switch features IP65 protection, a slim 27.9mm profile, and customizable LEDs and lens options. Its removable contact blocks are perfect for single board mounting, offering high durability and reliable switching operations suitable for factory automation, machinery control, and panel installations. With easy installation, various contact configurations, and a bright LED face, this switch provides excellent performance in demanding environments. Secure your order now for fast delivery and dependable operation!
Order your IDEC SeriesLB1F2T64R switch today and enhance your control system with reliable, IP65-rated durability and easy single board mounting.
Frequently Asked Questions
Where can I buy IDEC Corporation LB1F2T64R?
You can click on the BUY or RFQ button to purchase LB1F2T64R from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part LB1F2T64R?
You can download the LB1F2T64R datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of LB1F2T64R?
IDEC Corporation
