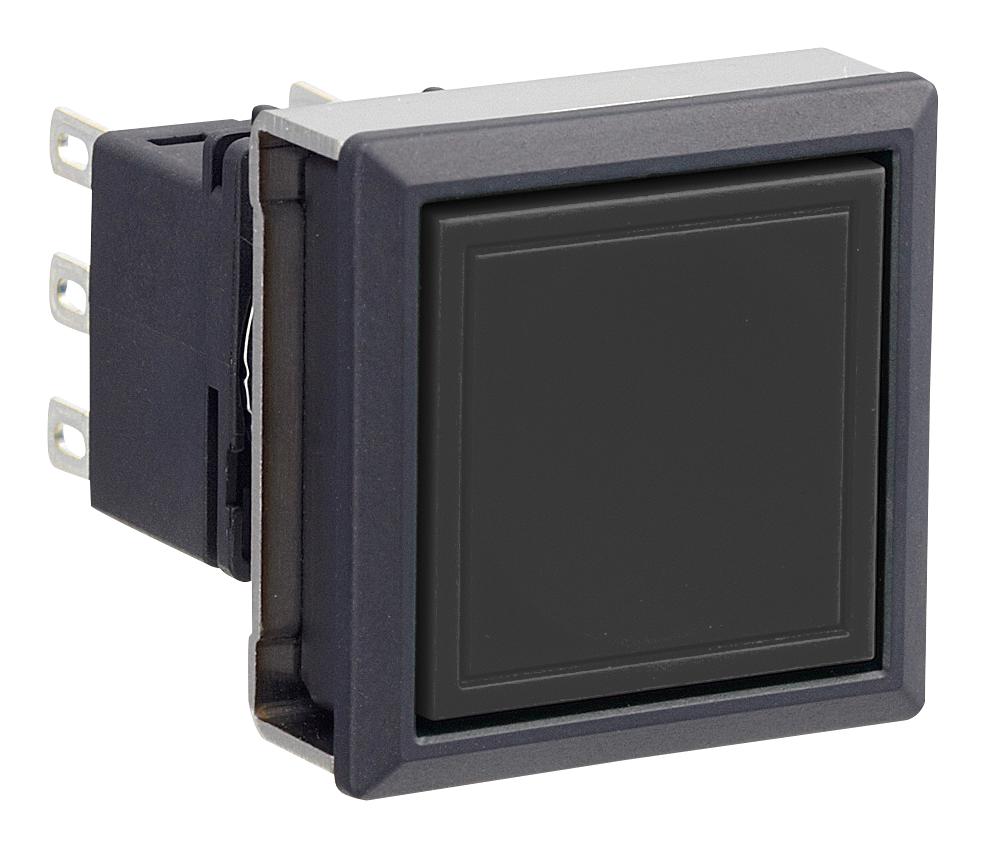

IDEC Corporation LBW7BM1T5B Control Switch
The LBW series are compact, reliable switches and pilot lights designed for industrial automation. Featuring various contact configurations such as SPDT, DPDT, and 3PDT, these devices are suitable for panel mounting and control applications. They offer illumination with multi-color LED options, IP65 front protection, and are compatible with solder/tab or PC board terminals. Suitable for operation within -25°C to +60°C, they enable efficient switching and signaling in rugged environments. Options include extended, flush, and guard styles for diverse control needs.
IDEC Corporation LBW7BM1T5B Control Switch Specifications:
- Contact Material: Silver/Gold/3PDT contacts available
- Rated Insulation Voltage: 250V
- Rated Operating Voltage: 30V DC, 125V AC
- Rated Operating Current: 3A resistive load
- COntact Resistance: 50 mΩ max
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -30°C to +80°C
- Degree of Protection: IP65 front, IP66 available with guard
- Vibration Resistance: 55 Hz, amplitude 0.5 mm
- Illumination: Multi-color LEDs (amber, green, red, blue, white, yellow), operating voltage 5V DC or 12V AC/DC
- Switching frequency: Up to 1800 operations per hour
- Physical Size: Bezel diameter 22mm, panel thickness 0.5 to 3.2mm
- Dimensions: Length varies with model, typical panel cut-out 22mm diameter
- Weight: approximately 17-29g depending on style
Buy the IDEC LBW7BM1T5B – Reliable Control Switch for Industrial Applications
Purchase the IDEC LBW series control switch online for dependable performance in industrial automation. With multi-color LED illumination, IP65 protection, and various mounting options, these switches are perfect for rugged environments. Designed for easy installation with solder/tab or PC board terminals, they operate reliably at temperatures from -25°C to +60°C. Whether you need illuminated pushbuttons, selector switches, or guard models, buy online now to ensure long-lasting, precise control for your machinery and control panels.
Get IDEC LBW7BM1T5B today—designed for durability and precise control in harsh environments.
Frequently Asked Questions
Where can I buy IDEC Corporation LBW7BM1T5B?
You can click on the BUY or RFQ button to purchase LBW7BM1T5B from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part LBW7BM1T5B?
You can download the LBW7BM1T5B datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of LBW7BM1T5B?
IDEC Corporation
