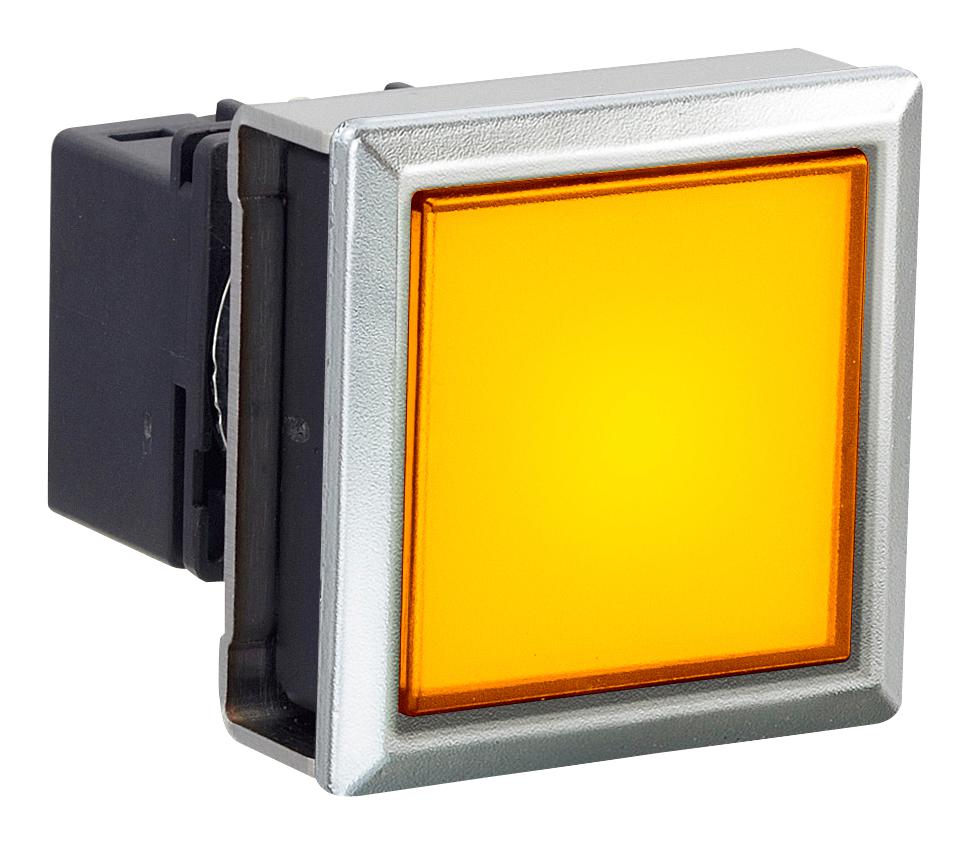

IDEC Corporation LBW7MP1T04A Control Pushbutton
The LBW series pushbuttons and pilot lights from IDEC are compact, panel-mount devices designed for control panels with 22mm hole diameter. They feature illuminated and non-illuminated options, including round and square bezels with black or metallic finishes. These units are available in various configurations, including maintained and momentary operation, with options for gold or silver contacts. Suitable for industrial control systems, they support IP65 front protection, multiple LED illumination colors, and a wide operating temperature range, ensuring reliable performance and easy wiring with solder/tab or PC board terminals.
IDEC Corporation LBW7MP1T04A Control Pushbutton Specifications:
- Panel Mounting Diameter: 22mm
- Protection Class: IP65 front protection
- Operation: Maintained, Momentary, Extended
- Bezel: Black or Metallic, Round or Square
- LED Illumination Colors: Amber, Green, Red, Blue, White, Yellow
- Rated Voltage: 5V DC, 12V AC/DC, 24V AC/DC
- Contact Material: Gold or Silver contacts
- Contact Configuration: SPST, DPST, 3PDT
- Rated Operating Voltage: 30V DC, 125V AC
- Rated Current: 3A resistive load
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -30°C to +80°C
- Vibration Resistance: 10-55Hz(0.5mm amplitude)
- Weight: Approximately 17g to 29g depending on configuration
Buy the Buy IDEC LBW Series Pushbuttons and Pilot Lights Part Number LBW7MP1T04A Online
Order the IDEC LBW series control pushbutton LBW7MP1T04A online now for dependable panel control. Featuring LED illumination in multiple colors, IP65 front protection, and easy solder/tab or PC board wiring, these compact units ensure durability and optimal performance in industrial environments. Suitable for various configurations with maintained or momentary operation, they support quick installation, offer a wide temperature range, and are ideal for control panels requiring robust and reliable switch components. Buy online today for fast delivery and quality assurance.
Get IDEC LBW7MP1T04A control pushbutton with LED illumination today—designed for industrial control panels, durable IP65 protection, and easy wiring for reliable operation.
