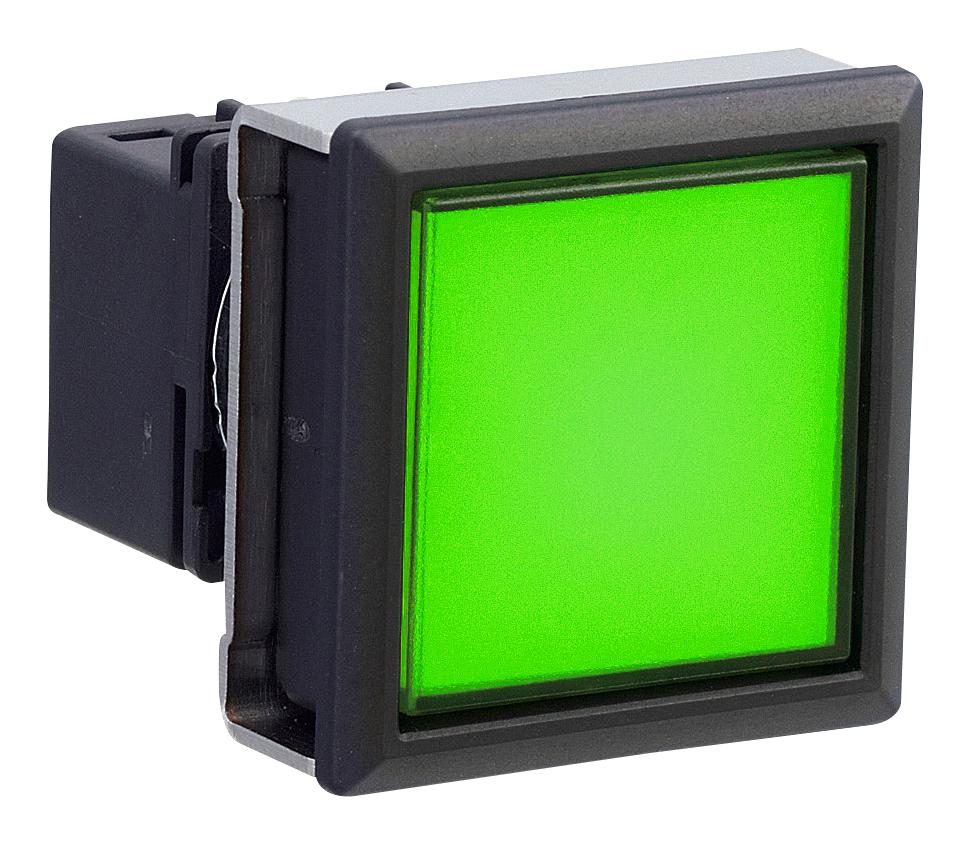

IDEC Corporation LBW7P1T04G Pushbutton Switch
The LBW7P1T04G is a high-quality, compact illuminated pushbutton switch designed for industrial control panels. It features a durable plastic bezel, various illumination color options, and a reliable gold contact switch mechanism. Suitable for a wide range of automation and control applications, this switch provides easy operation with maintained or momentary contact modes. Its IP65 protection rating ensures resistance against dust and water ingress, making it an ideal component for rugged industrial environments. Easy to install and solder, it supports flexible wiring options including solder/tab and PC board terminals.
IDEC Corporation LBW7P1T04G Pushbutton Switch Specifications:
- Operation: Maintained or Momentary
- Bezel Material: Plastic, Metallic available
- Illumination Colors: Amber, Green, Red, Blue, White, Yellow
- Rated Current: 7mA (Red), 2mA (Green, White), 5mA (Other colors)
- Rated Operating Voltage: 24V AC/DC, 12V AC/DC, 5V DC
- Protection: IP65 front panel, dust and water resistant
- Terminal Style: Solder/Tab, PC Board
- Contact Material: Silver, Gold contacts available
- Contact Ratings: 5A resistive load, 250V AC/DC
- Temperature Range: -25°C to +55°C
- Weight: Approx. 4.3g
- Panel Thickness: 0.5 to 3.2mm
- Soldering Temperature: 350°C for 3 seconds
- Vibration Resistance: 1,000 m/s²
- Insulation Resistance: 500V DC, 100 MΩ minimum
Buy the IDEC LBW7P1T04G – Reliable Pushbutton Switch for Industrial Applications
Order the IDEC LBW7P1T04G pushbutton switch online today for your industrial control needs. This high-quality, IP65-rated switch offers reliable operation with various illumination colors, supporting both maintained and momentary modes. Its durable construction, easy soldering, and flexible wiring options make it ideal for automation applications, control panels, and manufacturing systems. Ensure your equipment’s safety and efficiency by choosing this trusted control component, designed to withstand tough conditions and provide long-term service life.
Get IDEC LBW7P1T04G today—built for precision and long-lasting durability in rugged industrial environments.
Frequently Asked Questions
Where can I buy IDEC Corporation LBW7P1T04G?
You can click on the BUY or RFQ button to purchase LBW7P1T04G from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part LBW7P1T04G?
You can download the LBW7P1T04G datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of LBW7P1T04G?
IDEC Corporation
