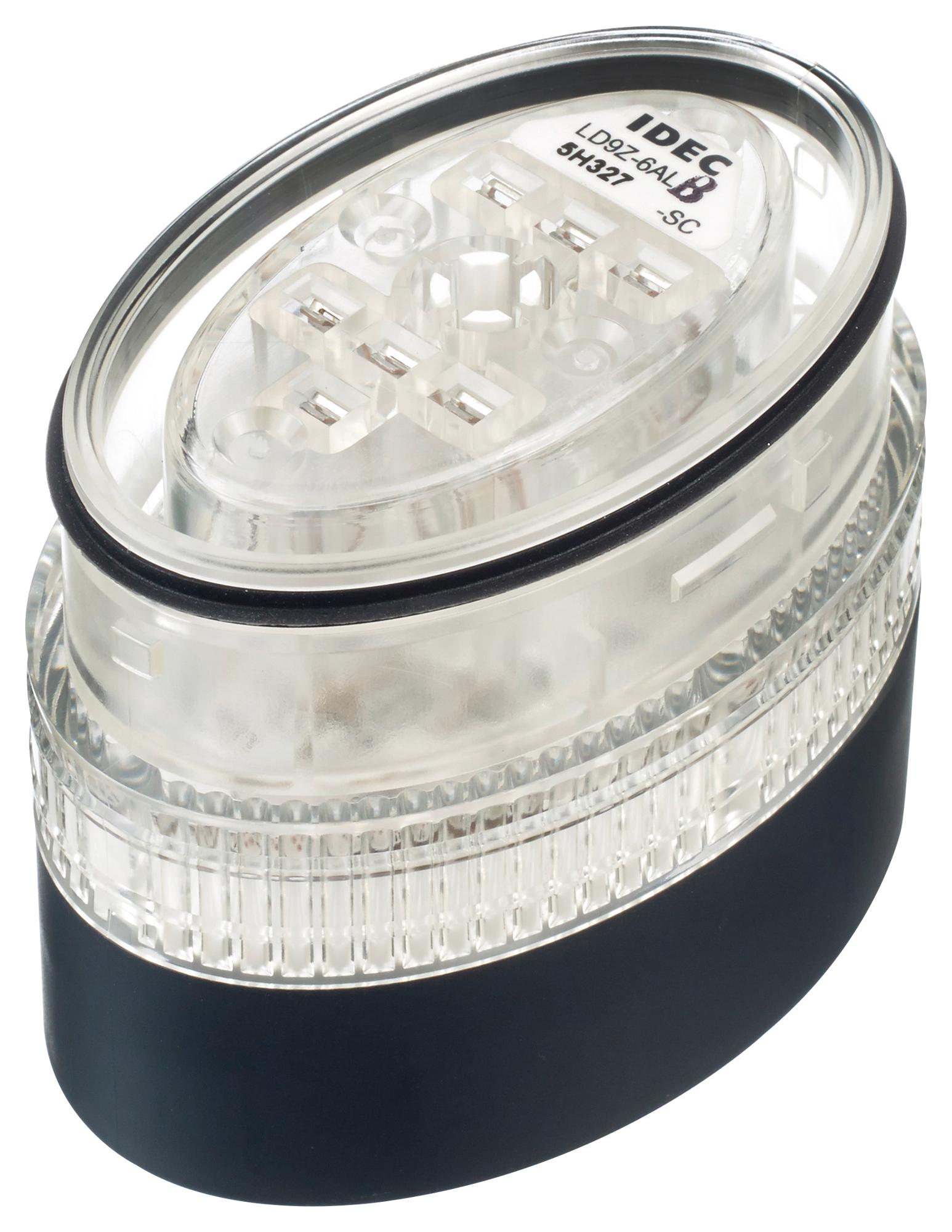

IDEC Corporation LD9Z6ALBSC Signaling Light Tower
The LD6A LED SignaLight Towers combine high visibility with unique striped and oval lens designs. They offer multiple mounting options, including frame, wall, direct, and pole mounts. The towers feature adjustable flashing cycles, alarm sounds, IP65/IP54 protection, and customizable configurations. Suitable for industrial signaling, their durable ABS housing and steel components ensure reliable operation in various environments. The LED modules are available in multiple colors, with options for clear lenses and multiple tiers, making them ideal for warning or status indication systems.
IDEC Corporation LD9Z6ALBSC Signaling Light Tower Specifications:
- Mounting options: Frame, wall, direct, pole with base or L-shaped bracket
- Housing material: ABS resin, Steel pole (nickel-chrome plated), Diecast aluminum base
- Protection rating: IP65 for steady, IP54 for flashing units
- LED colors: Red, Yellow, Blue, Green, White with optional clear lens
- Flashing cycle: 1.75Hz (approx. 105 flashes per minute) conforms to IEC 60073
- Alarm sound frequency: 3.3kHz, adjustable volume 70 to 90dB
- LED life span: Approx. 30,000 hours at 25°C
- Operating temperature: -25°C to +55°C, Storage temperature: -40°C to +75°C
- Dimensions vary by mounting style: Frame mount height 156mm, Wall mount 156mm, Direct mount 98mm, Pole mount with base 408mm, with L-shaped bracket 312mm
- Power supply: 24V AC/DC, Power consumption approximately 0.75W
- Electrical ratings: Contact capacity 100mA min., Dielectric strength 36V min., Insulation resistance 100MΩ min.
- Vibration and shock resistance: operating extremes from 10-56Hz and shocks of 147m/s²
- Mounting hardware includes: screws, washers, gaskets, and optional mounting brackets
- External contact ratings: 35V AC/DC, Contact capacity 100mA min., with dielectric strength 35V AC min.
Buy the IDE Series Signaling Lights: LD6A LED SignaLight Towers
Enhance your industrial signaling setup with the reliable and high-visibility LED towers. The IDE Series LD6A towers offer multiple mounting styles, vivid LED colors, customizable configurations, and IP65/IP54 ratings for durability. Designed for warning, status indication, or alarm systems, these towers feature a long LED lifespan, adjustable flashing cycles, and robust construction materials. Easily integrate into existing systems with a variety of accessory options. Order online today and ensure your projects benefit from efficient, durable, and visually impactful signaling solutions.
Order your IDE Series LD6A LED SignaLight Tower today and give your industrial signaling systems the dependable visibility and durability they need.
Frequently Asked Questions
Where can I buy IDEC Corporation LD9Z6ALBSC?
You can click on the BUY or RFQ button to purchase LD9Z6ALBSC from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part LD9Z6ALBSC?
You can download the LD9Z6ALBSC datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of LD9Z6ALBSC?
IDEC Corporation
