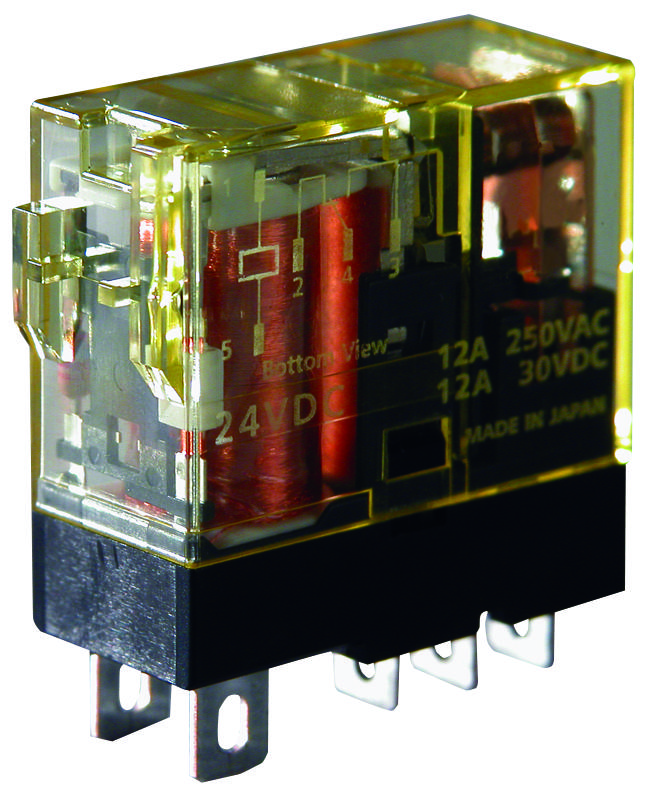

IDEC Corporation RJ22SCLA120 Industrial Power Relay
The RJ series Slim Power Relay is a compact, durable device suitable for industrial and power management applications. Featuring bifurcated contacts and a unique light guide structure, it ensures high visibility of coil status via an LED indicator. With a width of only 12.7mm, it offers large switching capacity, high contact ratings, and reliability up to 200,000 operations under AC load. The relay supports 2-pole or bifurcated contact configurations, includes diode protection with 1000V reverse withstand voltage, and has a mechanical lifespan of approximately 30 million operations, making it ideal for space-constrained environments.
IDEC Corporation RJ22SCLA120 Industrial Power Relay Specifications:
- Number of Poles: 2-pole
- Contact Configuration: DPDT (bifurcated), DPST-NO (bifurcated)
- Contact Material: AgNi (gold clad)
- Degree of Protection: Flux-tight structure
- Contact Resistance: 50 mΩ maximum (initial value)
- Operating Time: 10 ms maximum (at 20°C)
- Release Time: 10 ms maximum (at 20°C)
- Impulse Withstand Voltage: 10,000V AC (contact and coil)
- Insulation Resistance: 100 MΩ minimum (600V DC megger)
- Vibration Resistance: 10 to 55 Hz, amplitude 0.75 mm
- Shock Resistance: Operating extremes, NO contact: 200 m/s², NC contact: 100 m/s²
- Switching Operations: 200,000 operations minimum (DC), 100,000 (AC)
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Weight: Approx. 17g
Buy the IDEC RJ22S – Reliable Industrial Power Relay for Power Management
Boost your automation and power management setups with the IDEC RJ22S relay. Its compact size of just 12.7mm width saves space while providing high reliability with a contact rating suitable for demanding industrial applications. Featuring bifurcated contacts, a durable flux-tight structure, and high operation count of up to 200,000 cycles, it ensures long-term performance. The relay simplifies installation with standard screw terminals, includes diode protection with 1000V reverse withstand voltage, and offers a mechanical lifespan of approximately 30 million operations. Buy online now for dependable, space-efficient control.
Order your IDEC Series RJ22S compact relay today and enhance your power control systems with reliable, space-saving performance.
Frequently Asked Questions
Where can I buy IDEC Corporation RJ22SCLA120?
You can click on the BUY or RFQ button to purchase RJ22SCLA120 from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part RJ22SCLA120?
You can download the RJ22SCLA120 datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of RJ22SCLA120?
IDEC Corporation
