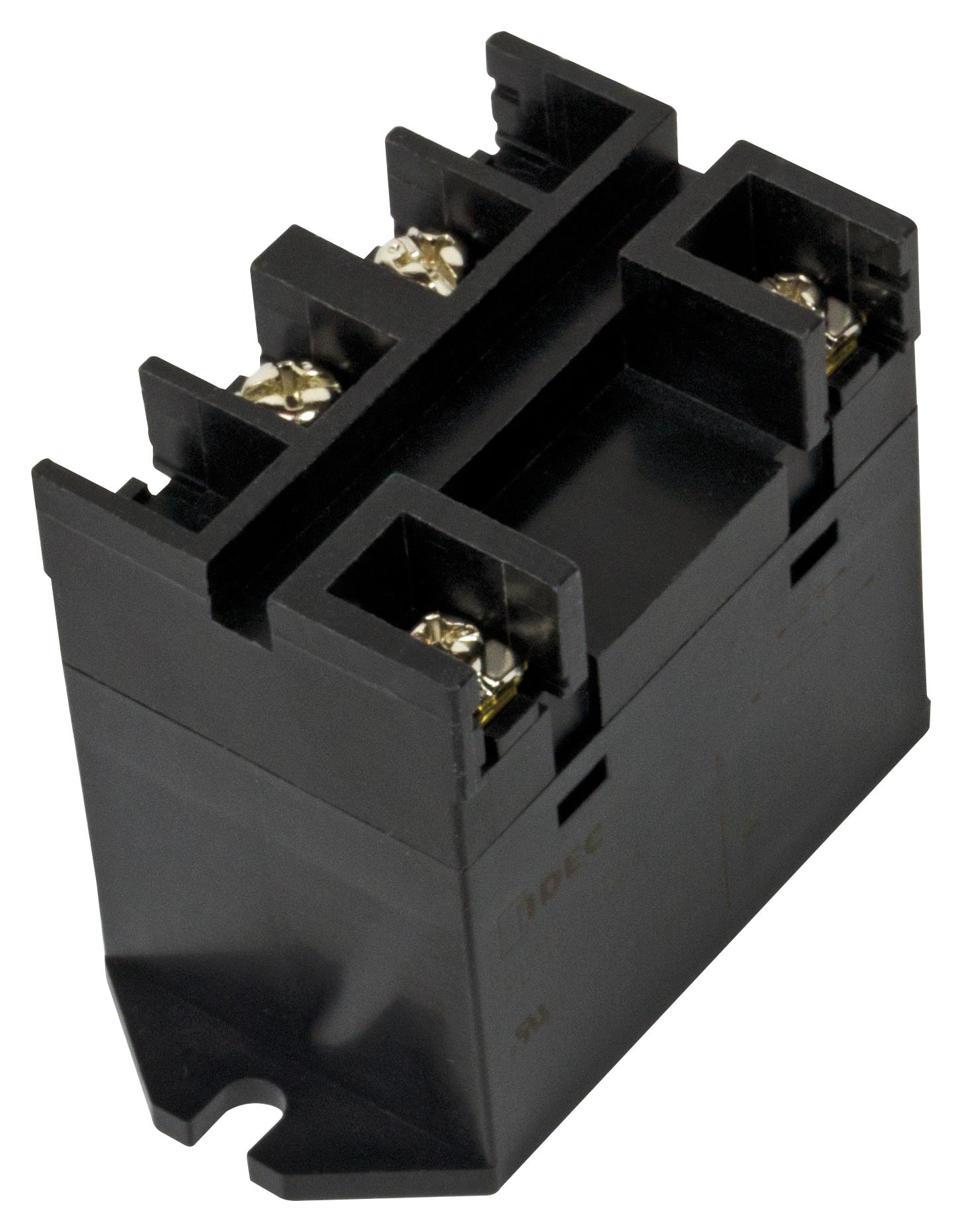

IDEC Corporation RL1NDA100 Power Relay
The RL series power relays are compact, versatile, and capable of handling high voltage loads with ratings up to 30A at 277VAC, suitable for HVAC, energy management, and industrial applications. They feature quick connect and screw terminal options, with flange or DIN rail mounting to enable flexible installation. The relays provide double make contacts, withstand electrical stresses, and operate reliably across a wide temperature range, making them ideal for motor, lighting, and heater loads. Their robust construction ensures durability for over a million mechanical operations.
IDEC Corporation RL1NDA100 Power Relay Specifications:
- Number of poles: 1 pole
- Contact Configuration: 1X (SPST, double make)
- Contact Material: Ag Alloy
- Operating Time and Release Time: 30ms max
- Degree of Protection: IPao
- Between contact and coil withstand voltage: 4,000V AC for 1 min
- Dielectric strength between pole: 2,000V AC for 1 min
- Frequency range: 10 to 55 Hz, Amplitude: 0.75mm
- Vibration Resistance: 100 m/s²
- Shock Resistance: 1,000 m/s²
- Mechanical Life: 1,000,000 operations min
- Operating Temperature: -25°C to +55°C
- Operating Humidity: 5 to 85% (without condensation)
- Weight: 90-135 grams depending on model
- Rated Load: 30A, 277VAC; 1.5HP at 277VAC; 1.5HP at 120VAC
- Electrical Life: 100,000 cycles
- Coil Voltage Ratings: 12V, 24V, 100V-120V, 200V-240V (AC/DC)
- Power Consumption: 1.7-25VA
- Maximum switching power: Up to 7500 VA
Buy the Buy IDEC RL Series Power Relay Part Number RL1NDA100 Online
Enhance your control systems with the reliable IDEC RL series power relay RL1NDA100, rated for 30A at 277VAC. Its versatile mounting options, quick connect or screw terminals, and robust construction enable effortless installation and long-term operation. Designed for HVAC, motor, lighting, and heater loads, this relay offers a mechanical life of over a million cycles. Its compact design, wide voltage compatibility, and high withstand voltage make it the ideal choice for industrial applications, ensuring efficiency and durability in demanding environments.
Order your IDEC RL series power relay RL1NDA100 today and ensure reliable switching for your industrial and HVAC control projects.
Frequently Asked Questions
Where can I buy IDEC Corporation RL1NDA100?
You can click on the BUY or RFQ button to purchase RL1NDA100 from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part RL1NDA100?
You can download the RL1NDA100 datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of RL1NDA100?
IDEC Corporation
