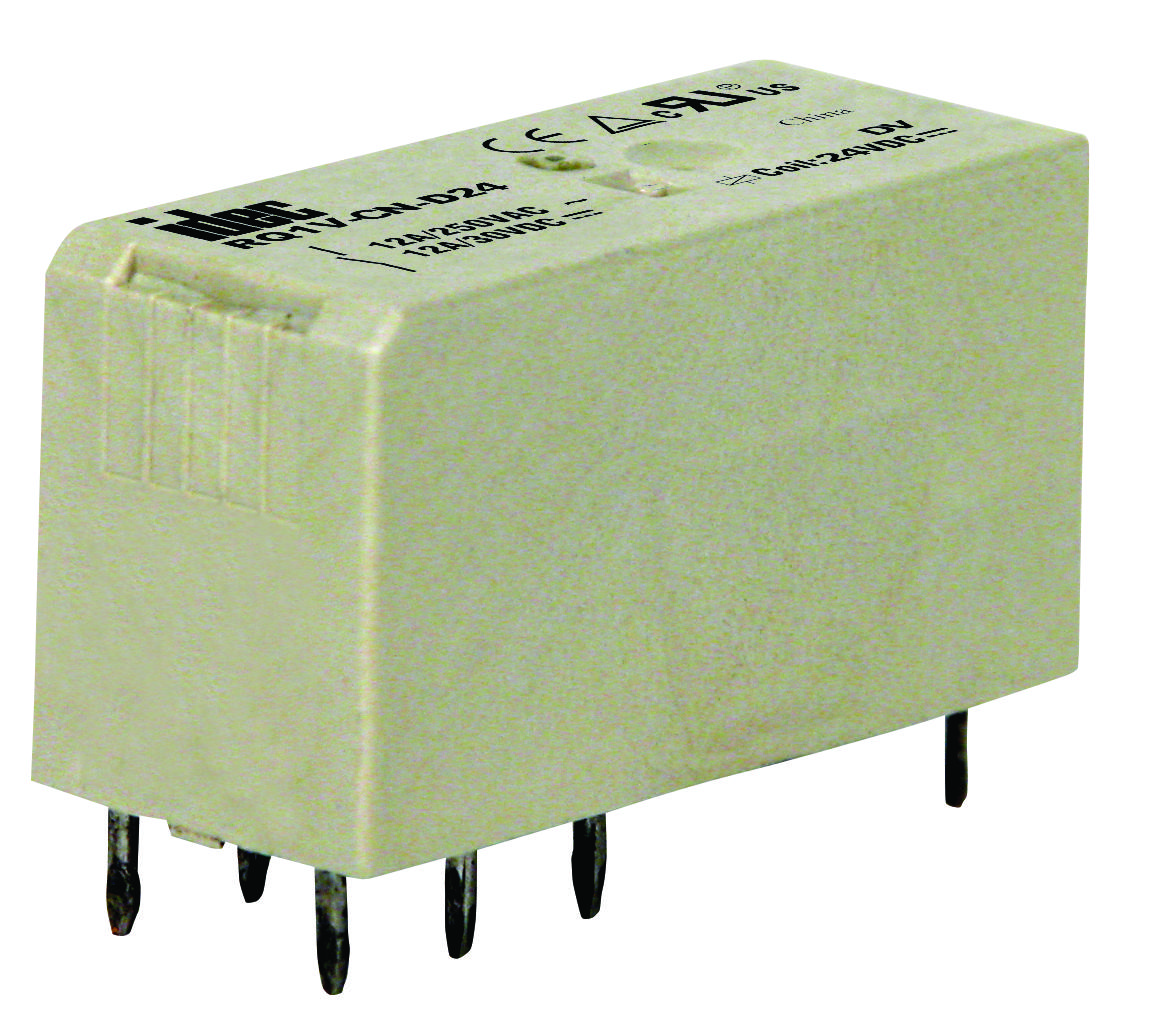

IDEC Corporation RQ1VCHD12 Industrial PCB Relay
The RQ series relays are compact, low-profile PCB relays designed for various industrial automation applications. They feature high contact ratings of 8A (DPDT) and 12A (SPDT), with a power relay model rated at 16A. These relays have a small size of 29 x 12.7 x 15mm, ensuring space efficiency while providing long operational life—up to 10 million cycles no load and 100K cycles at full resistive load. The relays operate from various coil voltages including 12V, 24V, 110V, and 230V AC/DC, and are UL Recognized, lead-free, with LED/diode plug-in modules available for easy integration.
IDEC Corporation RQ1VCHD12 Industrial PCB Relay Specifications:
- Size: 29 x 12.7 x 15mm
- Contact Rating: 8A (DPDT), 12A (SPDT), 16A (power model)
- Poles: 1 (SPDT), 2 (DPDT)
- Contact Material: Silver-Nickel alloy
- Coil Voltages: 12V, 24V, 110V, 230V AC/DC
- Resistance: Max 100 milliohms
- Operational Life: 10 million cycles no load, 100K cycles at full load
- Operating Temperature: -40°C to +85°C
- UL Recognized, Lead-Free
- Dimensions: 29 x 12.7 x 15mm
- Operating Time: Max 8 ms release time
- Operating Humidity: 45% to 85% RH
- Shock Damage Limits: 100 m/s² min
- Mounting: PCB mounting with optional screw or socket connections
- Additional Features: LED/diode plug-in modules available, DIN rail socket compatibility
Buy the Buy IDEC RQ Series Relay Part Number RQ1VCHD12 Online
Purchase the IDEC RQ series relay online today for reliable industrial automation. These compact relays feature high contact ratings up to 12A, UL recognition, long operational life, and a variety of coil voltages including 12V, 24V, 110V, and 230V AC/DC. Designed for PCB mounting, they are suitable for automation, control systems, and power switching with options for LED and diode modules. Ensure seamless integration into your projects with high-quality relays that combine space efficiency, durability, and easy installation.
Get IDEC RQ1VCHD12 relay today—built for industrial automation, offering long-lasting durability and high contact ratings for reliable performance.
Frequently Asked Questions
Where can I buy IDEC Corporation RQ1VCHD12?
You can click on the BUY or RFQ button to purchase RQ1VCHD12 from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part RQ1VCHD12?
You can download the RQ1VCHD12 datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of RQ1VCHD12?
IDEC Corporation
