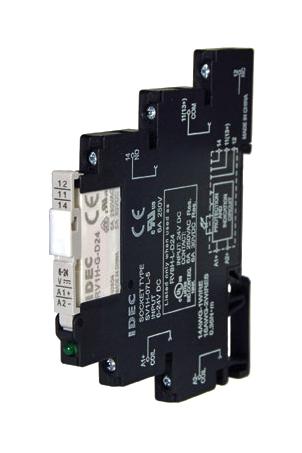

IDEC Corporation RV8HLAD110HD Interface Relay
The RV8H series 6mm higher dropout voltage interface relay features an IP20 degree of protection and universal screw terminals compatible with flat and Phillips screws. It is equipped with a lever for easy locking and removal, making it ideal for PLCs, electronic systems, industrial automation, panel building, and assembly machines. The relay comes with a universal AC/DC socket that includes built-in surge suppression and a green LED indicator. It is pre-assembled with the relay and a DIN mount socket for convenient installation.
IDEC Corporation RV8HLAD110HD Interface Relay Specifications:
- Number of Poles: 1-pole
- Contact Material: Silver alloy (gold-plated)
- Degree of Protection: IP20 (Socket), IP67 (Relay)
- Operate Time: Max 20 ms
- Release Time: Max 20 ms
- Contact Resistance (initial): 100mΩ
- Operating Temperature: -40°C to +70°C (except models 110/220V: -40°C to +55°C)
- Vibration Resistance: 10 to 55 Hz, amplitude 0.5mm (NO contact)
- Shock Resistance: 49 m/s² (NO contact)
- Electrical Life: Minimum 30,000 operations
- Mechanical Life: Minimum 10 million operations
- Weight: Approximately 269 g
- Operating Humidity: 5 to 85% RH
- Storage Temperature: -40°C to +85°C
- Coil Voltage Range: 6V DC to 220V AC/DC options available
- Certification: UL, c-UL, VDE (for specific models)
Buy the WESCE RV8H – Reliable Interface Relay for Industrial Applications
Purchase the WESCE RV8H series interface relay online today and enhance your industrial automation systems with reliable switching, robust protection, and easy installation. This high-performance relay offers versatile voltage options including AC and DC, with IP20 protection and a built-in LED indicator for easy status monitoring. Its universal screw terminals and pre-assembled DIN rail socket simplify installation. Whether for PLC control, panel building, or automated machinery, this relay delivers safety, durability, and consistent operation, making it an essential component for reliable industrial control systems.
Order your WESCE series RV8H interface relay today and ensure dependable control in your industrial automation projects.
Frequently Asked Questions
Where can I buy IDEC Corporation RV8HLAD110HD?
You can click on the BUY or RFQ button to purchase RV8HLAD110HD from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part RV8HLAD110HD?
You can download the RV8HLAD110HD datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of RV8HLAD110HD?
IDEC Corporation
