IDEC Corporation SA1PUC24V Sensor Tester
The USB-powered sensor checker allows easy testing of 24V DC sensors without nearby power outlets. It connects via USB, supports both NPN and PNP outputs, and features push-in terminals for tool-free wiring. The device provides simultaneous connections for two sensors, includes signal indicators, buzzer alerts, and a belt fastening strap for portability. Suitable for on-site sensor operation verification, the checker ensures quick, reliable testing, reducing setup time and enhancing maintenance efficiency in industrial environments.
IDEC Corporation SA1PUC24V Sensor Tester Specifications:
- Power Supply: USB Type-C with 5V, max. 2A; compatible with USB 2.0/3.0
- Output Current: Max. 200mA (total), Buzzer ON: 1.8A, Buzzer OFF: 1.58A
- Detection Distance Settings: 1000mm, 500mm, 100mm (diffuse-reflective sensors)
- Input Voltage: 24V DC (±10%)
- Input Signal: NPN or PNP open collector outputs
- Signal Indicators: Red LED for input signals, Green LED for power
- Additional Features: Dual sensor connection, buzzer output, push-in terminals, belt fastening strap
- Operating Temperature: -10°C to +50°C, Storage: -25°C to +70°C
- Humidity Range: 30% to 85% RH (non-condensing), EMC Compliance: IEC/EN 61000-6-2, IEC/EN 61000-6-4
- Dimensions: Approximate size 100mm x 50mm x 20mm, cable length 0.25m

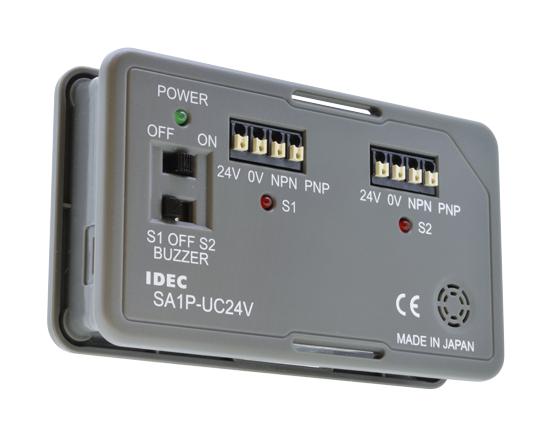

Buy the Buy IDEC Sensor Checker Part Number SA1PUC24V Online
Enhance your sensor maintenance with this portable USB-powered sensor checker designed for 24V DC sensors. It facilitates on-site testing without the need for power outlets, using a USB connection to a mobile battery or PC. With dual sensor connection capability, signal indicators, buzzer alerts, and tool-free push-in terminals, it ensures quick, reliable diagnostics during installation and troubleshooting. Its compact design and belt fastening strap make it convenient for field use, improving operational efficiency in industrial environments.
Buy IDEC SA1PUC24V now and experience unmatched reliability and quick sensor testing without nearby power outlets.
Frequently Asked Questions
Where can I buy IDEC Corporation SA1PUC24V?
You can click on the BUY or RFQ button to purchase SA1PUC24V from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part SA1PUC24V?
You can download the SA1PUC24V datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of SA1PUC24V?
IDEC Corporation
