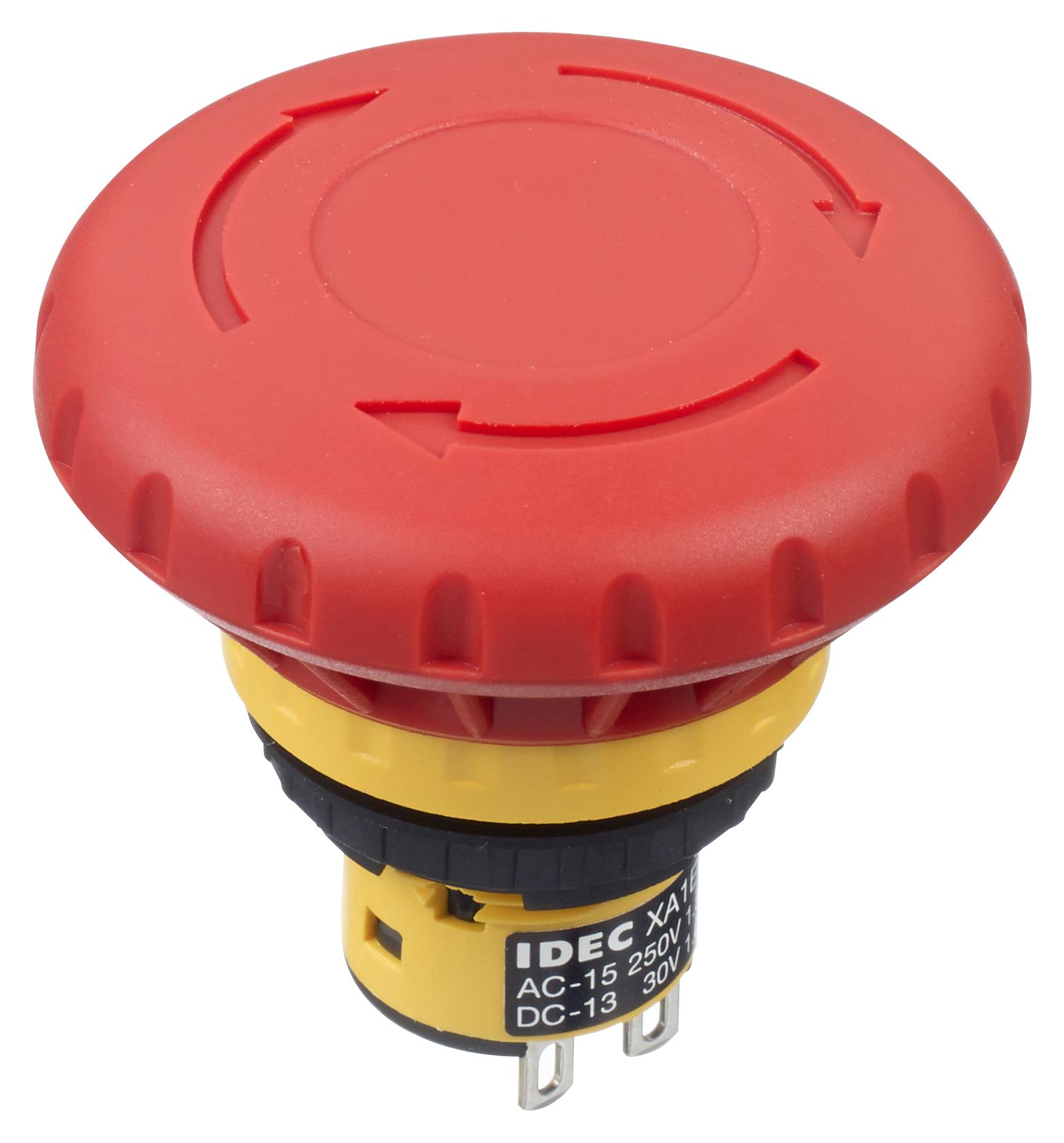

IDEC Corporation XA1EBV4U02R Emergency Stop Switch
The product is a compact emergency stop switch with IP65 protection, featuring a push-to-lock, pull or turn-to-reset operator. Designed for safety in industrial environments, it complies with IEC 60947-5-1 and EN standards, and is UL and CSA recognized. Available in 30mm and 40mm sizes, with gold-plated contacts and a safety lock mechanism, it supports both resistive and inductive loads up to 6A at 250V AC. The switch includes a rugged diecast shroud, a yellow or red button, and is suitable for panel mounting with a maximum panel thickness of 4.5mm.
IDEC Corporation XA1EBV4U02R Emergency Stop Switch Specifications:
- Operating Temperature: -25 to +60°C (no freezing)
- Storage Temperature: -45 to +80°C
- Operating Humidity: 45-85% RH (no condensation)
- Degree of Protection: IP65 (IEC 60529)
- Contact Material: Gold-plated silver contacts
- Rated Insulation Voltage: 250V
- Rated Thermal Current: 5A
- Rated Operating Voltage: 250V AC/DC
- Resistive Load: 5A, 250V AC
- Inductive Load: 5A, 250V AC
- Mechanical Life: 250,000 operations minimum
- Electrical Life: 100,000 operations minimum
- Terminal Style: M3.5 screw terminal
- Tightening Torque: 0.88 N-m
- Applicable Wire Size: 1.25 mm² maximum
- Dimensions: For 30mm button, panel cutout approx. 29mm; for 40mm button, approx. 40mm
- Material: Diecast aluminum, polyamide
- Standards: IEC 60947-5-1, EN 60947-5-1, UL508, CSA C22.2 No.14
- Available Options: Padlockable, with optional switch guards and nameplates
Buy the IDEC Series 040mm Emergency Stop Switch: XA1EBV4U02R
Purchase your IDEC emergency stop switch XA1EBV4U02R online today and enhance safety in your industrial environment. This rugged, IP65-rated switch features a push-to-lock, turn/reset mechanism with gold-plated contacts, compliant with IEC and UL standards. Available in 30mm or 40mm sizes, it supports resistive and inductive loads up to 5A at 250V AC. Easy to mount on panels with a maximum thickness of 4.5mm, ensuring reliable operation and safety locking for critical emergency shutdown procedures.
Order your IDEC Series 040mm emergency stop switch XA1EBV4U02R today and ensure maximum safety and reliability in your industrial applications.
Frequently Asked Questions
Where can I buy IDEC Corporation XA1EBV4U02R?
You can click on the BUY or RFQ button to purchase XA1EBV4U02R from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part XA1EBV4U02R?
You can download the XA1EBV4U02R datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of XA1EBV4U02R?
IDEC Corporation
