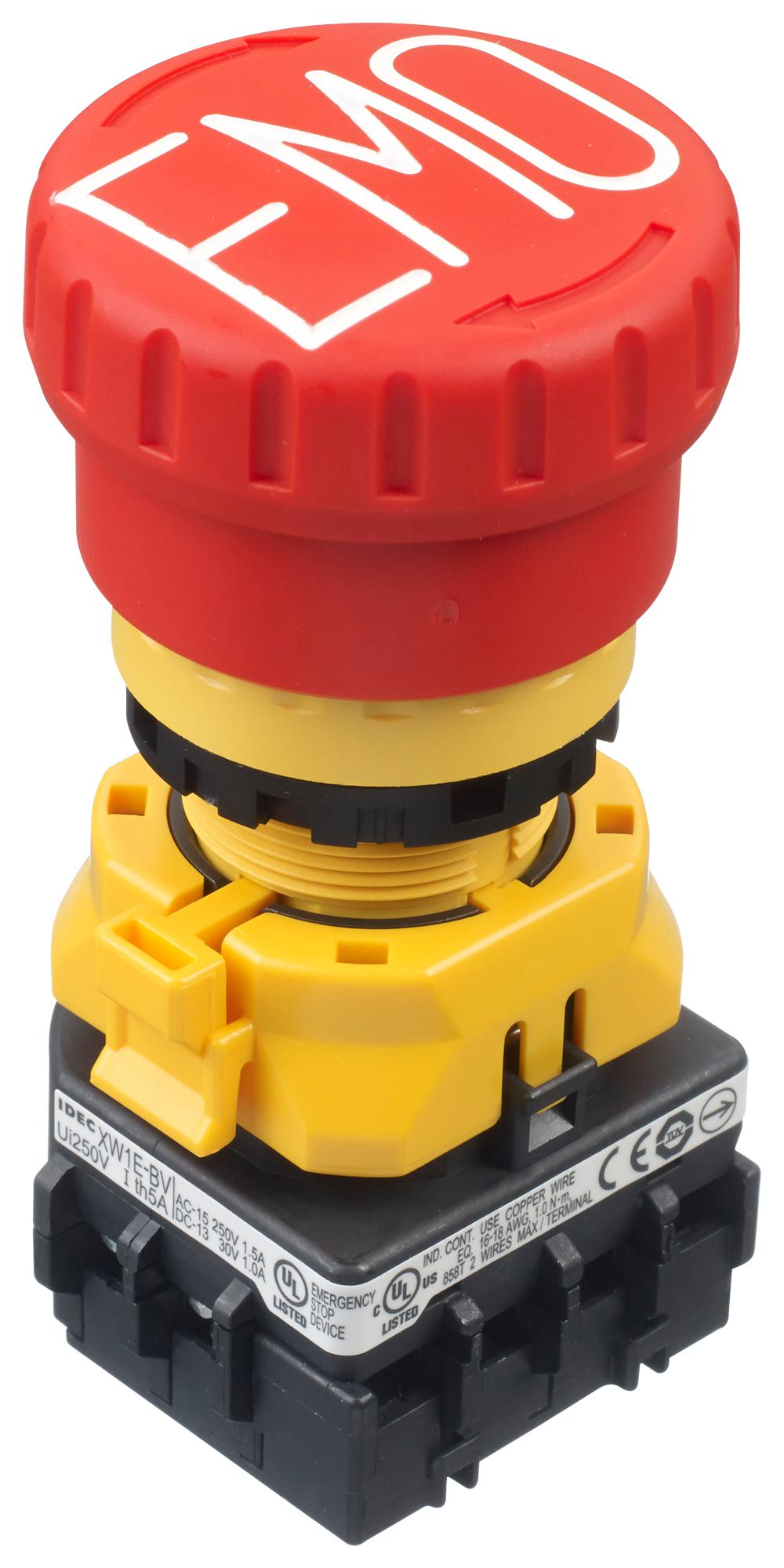

IDEC Corporation XW1EBV402MFRHEMO Emergency Stop Switch
The product is a compact emergency stop switch designed for safety and reliability in industrial applications. It features a durable unibody construction, complies with IEC 60947-5-5 standards, and offers flexible reset options via pulling or turning. The switch is IP65 rated, making it suitable for harsh environments. It includes gold-plated contacts, and the design ensures safe break action with reverse energy structure for enhanced safety. Available in various sizes with optional illuminated LED units, it allows for easy installation with panel mounting and optional accessories such as terminal covers and switch guards, ensuring compliance with SEMI and IEC safety requirements.
IDEC Corporation XW1EBV402MFRHEMO Emergency Stop Switch Specifications:
- Standards: IEC 60947-5-5, IEC 60947-5-1, UL508, CSA C22.2 No.14
- Insulation Voltage: 600V
- Rated Thermal Current: 10A
- Operating Temperature: -25°C to +60°C (non-freezing)
- Storage Temperature: -45°C to +80°C
- Operating Humidity: 45-85% RH (no condensation)
- Degree of Protection: IP65 (IEC 60529)
- Contact Ratings: AC-12 6A, DC-13 1A at specified voltages
- Operation Frequency: 900 operations/hour
- Shock Resistance: 1000 m/s², duration 30 ms
- Vibration Resistance: 10-500 Hz, amplitude 0.35 mm
- Mechanical Endurance: 250,000 operations
- Electrical Endurance: 100,000 operations
- Terminal Style: M3.5 screw, solder terminal options
- Minimum load: 5V AC/DC, 1mA
- Weights: approx. 13g for 030mm, 16g for 040mm models
- Optional accessories: terminal covers, switch guards, padlocks
Buy the Buy IDEC Emergency Stop Switch Part Number XW1EBV402MFRHEMO Online
Purchase the IDEC Emergency Stop Switch XW1EBV402MFRHEMO online today for fast delivery. This high-quality safety switch features IP65 protection, gold contacts, and flexible reset options. It is compliant with IEC, UL, and CSA standards, ensuring reliable performance in hazardous environments. Designed for easy panel mounting with optional accessories such as terminal covers and guards, this switch is perfect for safety-critical applications across industries. Enhance your safety system with this durable, UL-listed emergency stop switch for effective hazard control.
Order your IDEC Emergency Stop Switch XW1EBV402MFRHEMO today and ensure your safety systems meet the highest standards with reliable protection.
Frequently Asked Questions
Where can I buy IDEC Corporation XW1EBV402MFRHEMO?
You can click on the BUY or RFQ button to purchase XW1EBV402MFRHEMO from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part XW1EBV402MFRHEMO?
You can download the XW1EBV402MFRHEMO datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of XW1EBV402MFRHEMO?
IDEC Corporation
