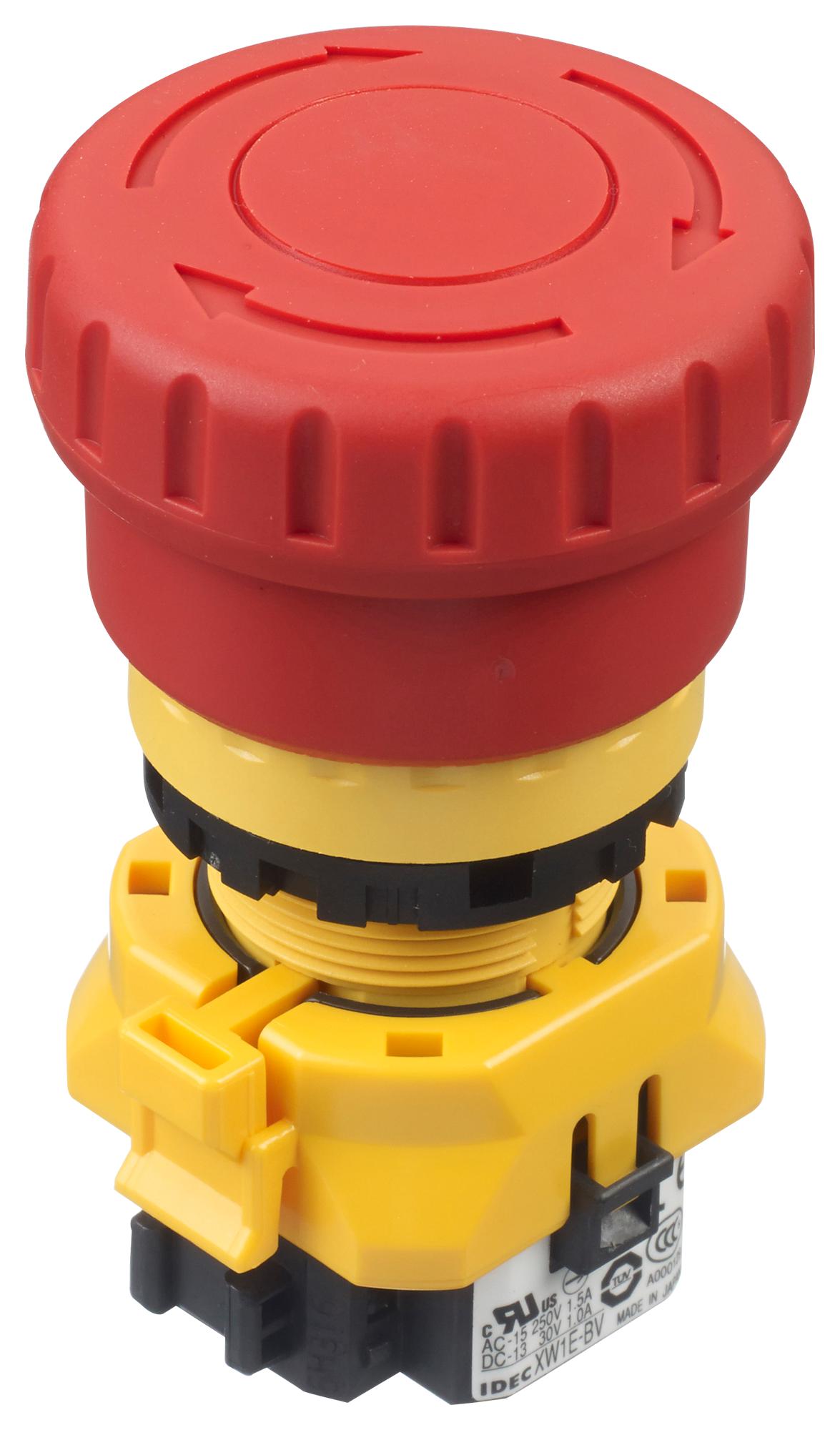

IDEC Corporation XW1EBV413R Emergency Stop Switch
The product is a compact, reliable emergency stop switch designed for industrial safety applications. It features a mushroom-shaped pushlock turn reset mechanism with a safety lock IEC 60947-5-5 compliance, IP65 protection, and gold-plated contacts. Suitable for small control panels, it offers direct opening action, robust construction, and various mounting options, including screw terminal and PC board styles. The switch is UL, c-UL listed, and EN compliant, providing high safety standards for manufacturing environments and semiconductor equipment. Its sturdy design ensures durability with a minimum life of 250,000 operations.
IDEC Corporation XW1EBV413R Emergency Stop Switch Specifications:
- Operation Temperature: -25 to +60°C (no freezing)
- Protection Degree: IP65 (IEC 60529)
- Contact Material: Gold-plated silver
- Rated Insulation Voltage: 600V
- Rated Thermal Current: 5A
- Contact Resistance: 50 mΩ maximum (initial)
- Insulation Resistance: 100 MΩ minimum (500V DC megger)
- Impact Resistance: Damage limits at 1000 m/s²
- Vibration Resistance: 10 to 500 Hz, amplitude 0.35 mm
- Electrical Life: 100,000 operations minimum
- Mechanical Life: 250,000 operations minimum
- Operating Force: 40 N for direct opening
- Terminal Style: Solder terminal, 1.25 mm² max wire size
- Tightening Torque: 0.88 N-m
- Weight: Approx. 16-21g depending on the model
- Standards: IEC 60947-5-5, UL508, CSA 22.2 No. 14, EN 60947-5-1
- Color Options: Red with mushroom shape, yellow background for EMO
- Operating mechanisms: Pushlock pull, turn reset; lock when pressed, reset by pulling or turning
Buy the IDEC Series Unibody Emergency Stop Switch: XW1E-BV413R
Purchase your IDEC Series Unibody Emergency Stop Switch XW1E-BV413R today and ensure your machinery complies with safety standards. Compact, durable, and equipped with gold-plated contacts, this industrial switch offers IP65 protection and reliable direct opening action. Easy to install with screw terminals or PC board styles, it guarantees high safety performance. Whether for semiconductor manufacturing or industrial machinery, this emergency stop switch is designed for long-lasting operation, minimum 250,000 cycles, and meets UL, c-UL, and EN standards. Secure your workspace today!
Order your IDEC Series Unibody Emergency Stop Switch XW1E-BV413R today and enhance safety with reliable industrial emergency stop solutions.
Frequently Asked Questions
Where can I buy IDEC Corporation XW1EBV413R?
You can click on the BUY or RFQ button to purchase XW1EBV413R from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part XW1EBV413R?
You can download the XW1EBV413R datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of XW1EBV413R?
IDEC Corporation
