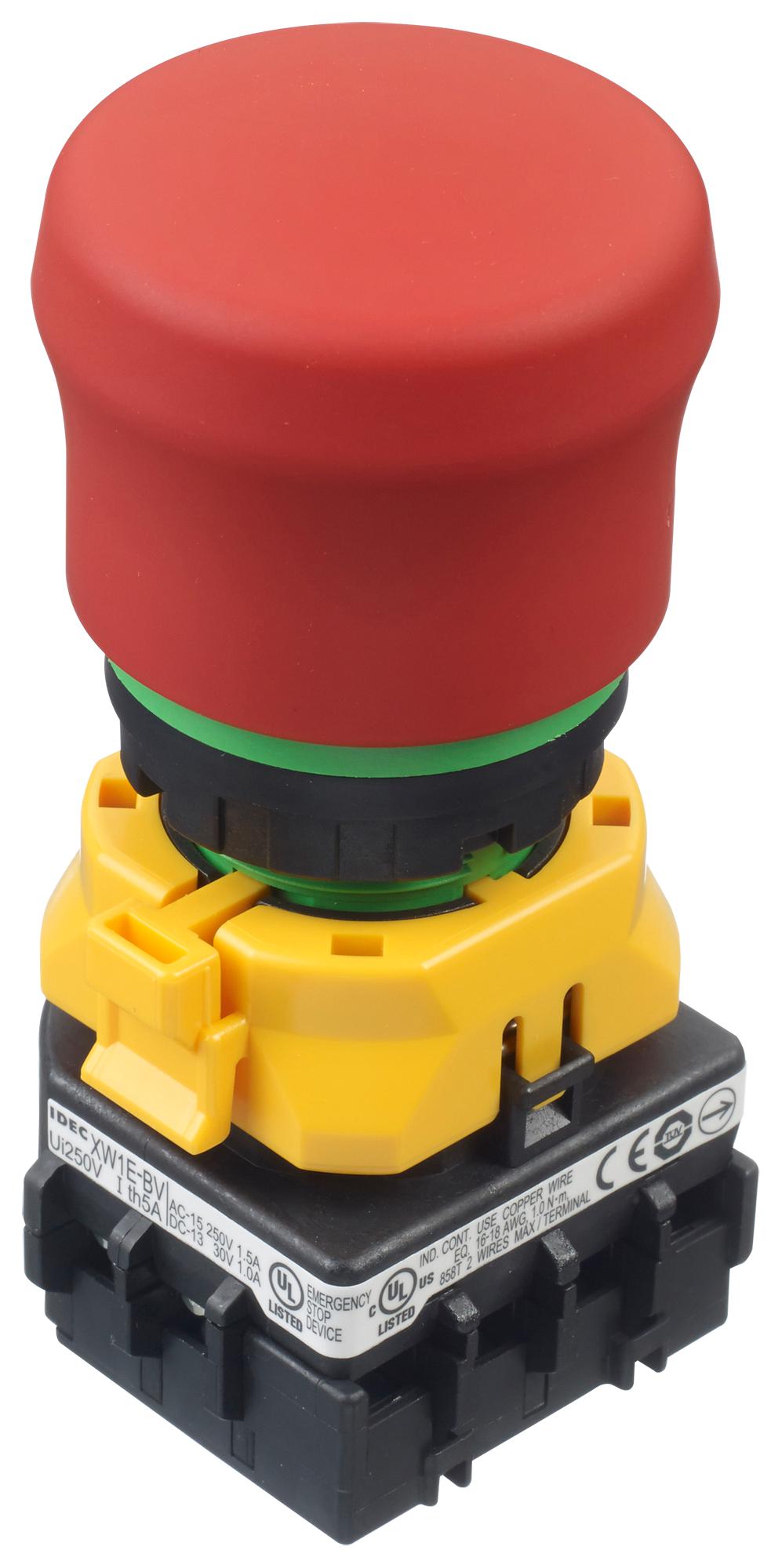

IDEC Corporation XW1EBV4TG02MFR Emergency Stop Switch
The XW1EBV4TG02MFR emergency stop switch features a mechanical indicator showing contact status, enhanced safety with Safe Break Action, and a durable design compliant with international standards. It includes a push-to-lock operator with pull or turn-to-reset functionality, and a direct opening contact mechanism for safety. The switch is IP65 protected, suitable for harsh environments, with gold-plated contacts and finger-safe structure. Available in illuminated and non-illuminated models, it offers reliable operation, easy mounting, and maintenance for industrial safety applications, with long electrical and mechanical life over 250,000 operations.
IDEC Corporation XW1EBV4TG02MFR Emergency Stop Switch Specifications:
- Standards: IEC 60947-5-5, EN 60947-5-5, UL508, CSA C22.2 No. 14
- Operating Temperature: Non-illuminated -25°C to +60°C, Illuminated -25°C to +55°C
- Storage Temperature: -45°C to +80°C
- Degree of Protection: IP65 (front), IP20 (terminals with cover)
- Electrical Life: Over 250,000 operations
- Mechanical Life: Minimum 250,000 operations
- Contact Ratings: 5A at 250V AC, 2A at DC
- Contact Resistance: 50mΩ maximum
- Contact Configuration: 2NC, 1NO, or 2NO monitor contacts
- Contact Opening: Direct, positive opening according to IEC standards
- Push-to-lock, Pull or Turn-to-reset operator
- Terminal Style: M3 screw terminals with tightening torque 0.6 to 1.0 N-m
- Panel Mounting Hole: 22 mm with securing lock ring
- Panel Thickness: 1 to 4 mm
- Protection Class: Finger-safe structure, IP20 terminal protection
- LED Operation: 24V DC, 15mA, non-replaceable LED lamp
- Mounting Dimensions: 185 mm height, 28 mm depth behind panel
Buy the IDEC Series Emergency Stop Switch: XW1EBV4TG02MFR
Purchase the IDEC Emergency Stop Switch XW1EBV4TG02MFR online today and enhance your safety system with durable, IP65-rated protection, a mechanical indicator, and Safe Break Action. This high-quality device features easy mounting, long-lasting contacts, and a direct opening mechanism compliant with IEC standards, ensuring reliable operation and prompt response during emergencies. Ideal for industrial environments requiring safety compliance, it provides effortless reset options with pull or turn-to-reset functions, reducing maintenance time and increasing operational efficiency. Get yours now for dependable safety performance.
Order your IDEC Series Emergency Stop Switches with mechanical indicator today and ensure your safety systems deliver reliable performance in harsh environments.
