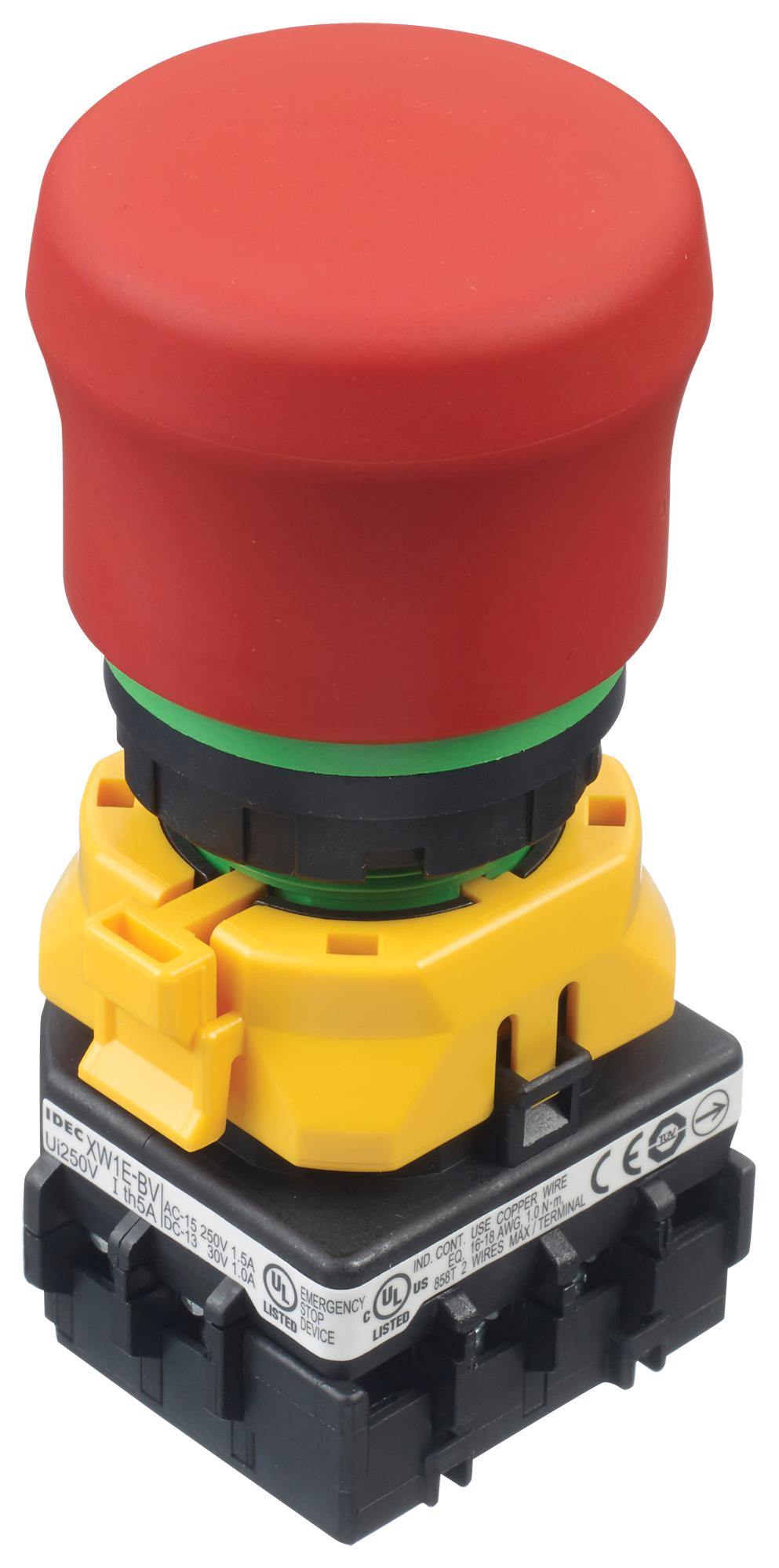

IDEC Corporation XW1EBV4TG04MFR Emergency Stop Switch
The emergency stop switch with mechanical indicator provides reliable safety features suitable for industrial automation. It features a durable design with a safety lock mechanism compliant with IEC standards, including direct opening action for NC contacts when detached. The switch offers visual contact status indication through a green or red indicator, helping operators monitor machine states easily. It supports easy mounting, has a compact profile with a depth of 46.4 mm, and includes protected screw terminals. The device is UL and CE certified, with high resistance to shocks, vibrations, and environmental factors, ensuring dependable emergency shutdown operations in manufacturing environments.
IDEC Corporation XW1EBV4TG04MFR Emergency Stop Switch Specifications:
- Standards: IEC 60947-5-5, IEC 60947-5-1, UL 508, UL 991, CSA C22.2 No.14
- Applicable Standards: JIS C8201-5-1, GB14048.5, EN60947-5-5
- Operating Temperature: Non-illuminated -25°C to +60°C, Illuminated -25°C to +55°C
- Storage Temperature: -45°C to +80°C
- Operating Humidity: 45% to 85% RH (no condensation)
- Degree of Protection: IP65 (front), IP20 (terminals with protection cover)
- Contact Ratings: 250V/10A, 5A AC-12, 3A AC-15, DC 1A-2A depending on contact type
- Electrical Life: 100,000 operations minimum, 250,000 operations with LED version
- Mechanical Life: 250,000 operations minimum
- Contact Resistance: 50 mΩ maximum
- Push Force: 32N, Pull To Reset: 21N, Turn To Reset: 0.27N
- Certification: UL, c-UL listed, EN compliant, CE approved
- Degree of Protection: IP65 front panel, IP20 terminal protection
- Connection: M3 screw terminal, wire size 0.75-1.25 mm²
- Mounting: Panel cut-out of 46.4 mm, locking ring with torque of 2.0 N-m
- Clamp Type: IP20 finger-safe structure, durable gold-plated contacts
- LED Ratings: 24V AC/DC, 15 mA, non-replaceable LED
- Compatible with: Non-illuminated and illuminated models, push-lock and pull/turn reset
- Accessories: Ring wrench MW9Z-T1, terminal cover, protection cover, nameplate options
Buy the IDEC XW1EBV4TG04MFR – Reliable Emergency Stop Switch with Mechanical Indicator for Industrial Applications
Purchase the IDEC emergency stop switch with mechanical indicator online today and ensure robust safety for your manufacturing process. This high-quality emergency stop device features a compact design with a depth of only 46.4 mm, making it perfect for panel mounting. Certified for safety and environmental standards, it supports easy installation and maintenance. The switch provides clear contact status indication through green and red indicators, along with reliable direct opening action. Improve your safety protocol with this UL and CE listed switch, suitable for critical industrial applications. Order now for dependable safety management in your facility.
Get IDEC XW1EBV4TG04MFR today—designed for reliable emergency shutdown and durable performance in industrial environments.
Frequently Asked Questions
Where can I buy IDEC Corporation XW1EBV4TG04MFR?
You can click on the BUY or RFQ button to purchase XW1EBV4TG04MFR from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part XW1EBV4TG04MFR?
You can download the XW1EBV4TG04MFR datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of XW1EBV4TG04MFR?
IDEC Corporation
