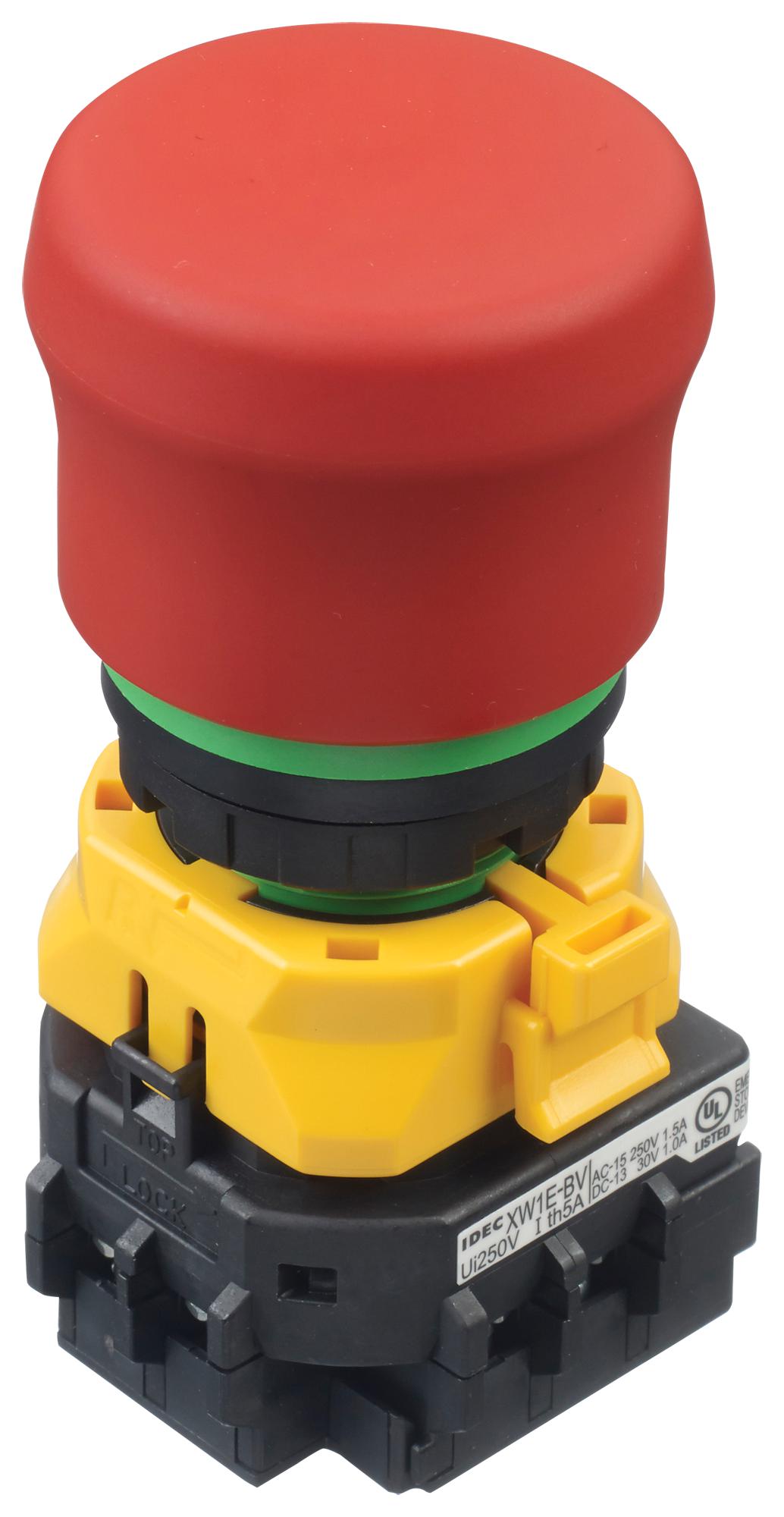

IDEC Corporation XW1EBV4TG13MFR Emergency Stop Switch
The XW1E series emergency stop switches feature mechanical indicators and Safe Break Action, ensuring high safety standards compliant with IEC 60947-5-5. They include a mechanical indicator that displays contact status, with options for illuminated models. The switch offers push-to-lock and pull or turn-to-reset functions, direct opening contacts, robust design with IP65 protection, and gold-plated contacts for durability. It is suitable for industrial safety applications, withstands mechanical shocks, and provides reliable operation with minimal maintenance, making it ideal for machinery emergency stop systems.
IDEC Corporation XW1EBV4TG13MFR Emergency Stop Switch Specifications:
- Standards: IEC 60947-5-5, EN60947-5-5, UL508, UL991
- Applicable Standards: JIS C8201-5-1, UL/CUL, CSA, GB14048.5
- Operating Temperature: Non-illuminated -25 to +60°C; Illuminated -25 to +55°C
- Storage Temperature: -45 to +80°C
- Operating Humidity: 45 to 85% RH (no condensation)
- Contact Ratings: 250V/10A fuse, 5A AC-12, 3A AC-15, 2A DC-12, 1A DC-13
- Electrical Life: 100,000 to 250,000 operations depending on model
- Mechanical Life: 250,000 operations minimum
- Degree of Protection: IP65 (front panel), IP20 (terminal protection)
- Push to Lock Force: 32N; Pull to Reset: 21N
- Operation Stroke: 4.0 mm (contact close), 4.5 mm (monitor contact)
- Terminal Style: M3 screw terminal, connectable wire: 0.75 to 1.25 mm² (AWG18-16)
- Rated Operating Voltage: 125V or 250V AC/DC
- Contact Resistance: 50 mΩ maximum
- Operating Frequency: 900 operations/hour
- Shock Resistance: 4600 m/s²
- Vibration Resistance: 10 to 500 Hz, amplitude 0.35 mm
- Protection Class: IP65 front panel, IP20 terminal cover
- LED Illumination: Built-in, 24V AC/DC, 15 mA
Buy the Buy IDEC Emergency Stop Switch Part Number XW1EBV4TG13MFR Online
Secure your safety requirements with the IDEC Emergency Stop Switch XW1EBV4TG13MFR, featuring robust IP65 protection, mechanical indicator for contact status, and compliant with international safety standards. Perfect for industrial machinery, it offers easy reset functions, durable gold-plated contacts, and reliable operation with minimal maintenance. The switch includes optional illuminated models, easy wiring, and a compact design with a depth of only 46.4 mm behind panels. Buy online today and enhance your safety systems with trusted quality and adherence to global safety standards.
Order your IDEC Emergency Stop Switch XW1EBV4TG13MFR today and ensure your machinery operates safely with reliable safety features and durable construction.
Frequently Asked Questions
Where can I buy IDEC Corporation XW1EBV4TG13MFR?
You can click on the BUY or RFQ button to purchase XW1EBV4TG13MFR from an authorized IDEC Corporation distributor.
How do I troubleshoot issues or seek technical support for part XW1EBV4TG13MFR?
You can download the XW1EBV4TG13MFR datasheet or visit the IDEC Corporation website for support.
Who is the manufacturer of XW1EBV4TG13MFR?
IDEC Corporation
