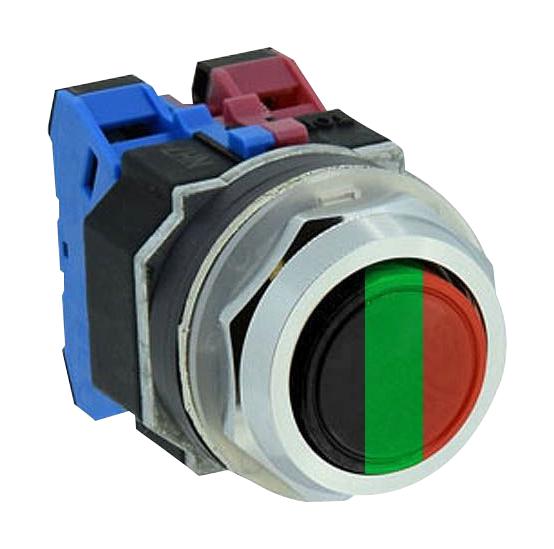

IDEC ABD110NUBGR Heavy Duty Pushbutton
The IDEC TWND series of switches provides a durable and versatile solution for industrial control panels and equipment. Built with a rugged construction including chrome-plated zinc locking rings and die-cast zinc mounting threads, these 30mm pushbuttons are designed to withstand demanding environments. The TWND series offers a variety of button sizes, LED illumination options, and contact configurations to meet diverse application needs. Available as assembled units or sub-components, they are UL Type 4X, 13, and IP65 rated, ensuring reliable performance and protection against dust and water ingress. The modular design allows for maximum flexibility in system integration, making the TWND series a dependable choice for long-lasting industrial strength quality.
IDEC ABD110NUBGR Heavy Duty Pushbutton Specifications:
- Standards: EN60947-5-1, UL508, CSA C22-2 No.14
- Operating Temperature: -25 to +50°C (illuminated), -25 to +70°C (non-illuminated)
- Storage Temperature: -40 to +80°C
- Vibration Resistance: 5 to 55Hz, 98m/sec
- Shock Resistance: 980m/sec
- Electric Shock Protection: Class 2
- Degree of Protection: IP65, UL Type 4X
- Mechanical Life: 5,000,000 operations (momentary), 500,000 (other)
- Pollution Degree: 3
- Rated Operational Characteristics: AC-15: A600
- Rated Insulation Voltage: 600V
- Rated Impulse Withstanding Voltage: 2.5kV AC
- Rated Thermal Current: 10 Amp
- Minimum Switching Capacity: 5 mA at 3V AC/DC
- Contact Operation: Slow break NC or NO
- Operating Force: 6.2±2N (momentary), 9.0±1.5N (extended)
- Terminal Torque: 1.0 to 1.3 Nm
- Contact Resistance: 50mΩ or less
- Contact Gap: 2mm
- LED Ratings: 6V: 8mA, 12V: 11mA, 24V: 11mA, 120V: 8.8mA, 240V: 8.6mA
- Contact Material: Silver
Buy the ABD110NUBGR IDEC Heavy Duty Pushbutton | myMectronic
Securely purchase the IDEC ABD110NUBGR 30mm Pushbutton Switch online for reliable industrial automation.
Buy Now
Frequently Asked Questions
Where can I buy IDEC ABD110NUBGR?
You can click on the BUY or RFQ button to purchase ABD110NUBGR from an authorized IDEC distributor.
How do I troubleshoot issues or seek technical support for part ABD110NUBGR?
You can download the ABD110NUBGR datasheet or visit the IDEC website for support.
Who is the manufacturer of ABD110NUBGR?
IDEC
