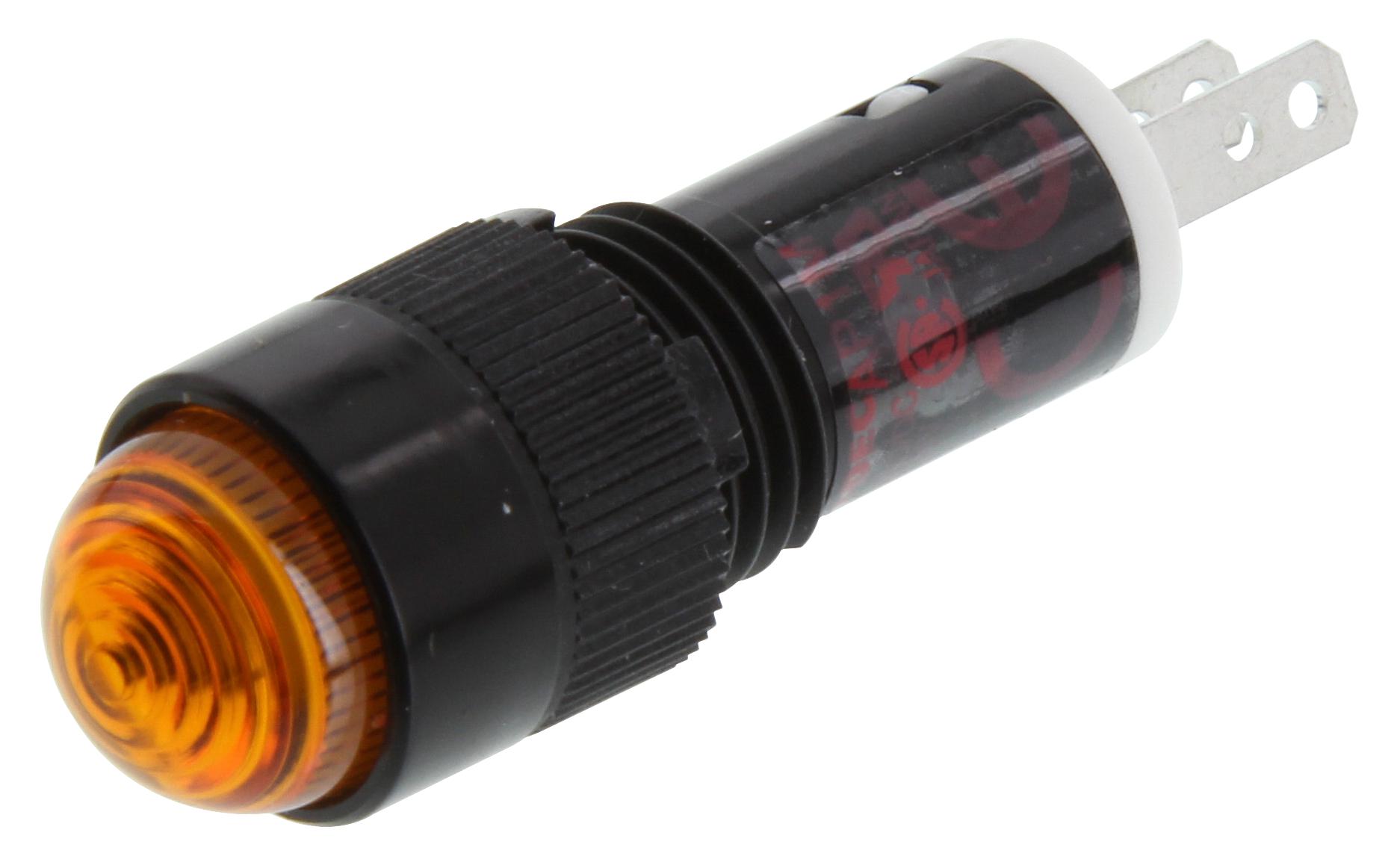

IDEC AP1M222A Miniature Pilot Light
The IDEC AP1M222-A is a miniature pilot light designed for a wide range of industrial applications. This compact light features a built-in LED with a current-limiting resistor, ensuring efficient and reliable illumination. Available in various voltage options (6, 12, 24VDC, 110/120, 220/240VAC, and 110VDC), it caters to diverse power requirements. The AP1M222-A offers a long service life, low maintenance, and space-saving design, making it ideal for applications where space is limited. It is also available with optional AC adaptors and DC-DC converters for added flexibility. Its IP65 rating provides protection against oil and dust, ensuring reliable operation in harsh environments.
IDEC AP1M222A Miniature Pilot Light Specifications:
- Lamp: Built-in LED with current limiting resistor
- Operational Voltage: 6, 12, 24VDC (full voltage), 110/120, 220/240VAC (transformer), 110VDC (with converter)
- Current Ratings: AP1: 6VDC/18mA, 12VDC/18mA, 24VDC/12mA
- Operating Temp: -20°C to +55°C
- Operating Humidity: 45 to 85% RH
- Insul Resistance: 100MΩmin. (500V DC megger) Between live and dead parts
- Rev Withstand Voltage: AP1: 200V
- Solder Terminal: Soldering 260°C maximum (5 sec.)
- Degree of Protection: AP8: IP40 (dustproof), Other Series: IP65 (oiltight)
- Power Consumption: 1.6 VA maximum (AC Adaptor), 1W maximum (DC-DC Converter)
- Insulation Voltage: 250 V AC (AC Adaptor), 140V DC (DC-DC Converter)
- Insulation Resistance: 10MΩmin. (500V DC megger) Between live and dead parts (AC Adaptor)
- Dielectric Strength: 2,000V AC, 1 minute Between live/dead parts (AC Adaptor), 2,000V AC, 1 minute Between terminals (AC Adaptor), 2,000V AC, 1 minute Between live/dead parts (DC-DC Converter), 1,500V AC, 1 minute Between terminals (DC-DC Converter)
- Key Features: Long service life, low maintenance, space-saving miniature style, dome or fat lens models, built-in current-limiting resistor and reverse polarity protection diode, five illumination colors (red, green, amber, yellow, and white), AC adaptor and DC-DC Converter options
Buy the AP1M222-A IDEC Miniature Pilot Light | myMectronic
Purchase the IDEC AP1M222-A Miniature Pilot Light securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy IDEC AP1M222A?
You can click on the BUY or RFQ button to purchase AP1M222A from an authorized IDEC distributor.
How do I troubleshoot issues or seek technical support for part AP1M222A?
You can download the AP1M222A datasheet or visit the IDEC website for support.
Who is the manufacturer of AP1M222A?
IDEC
