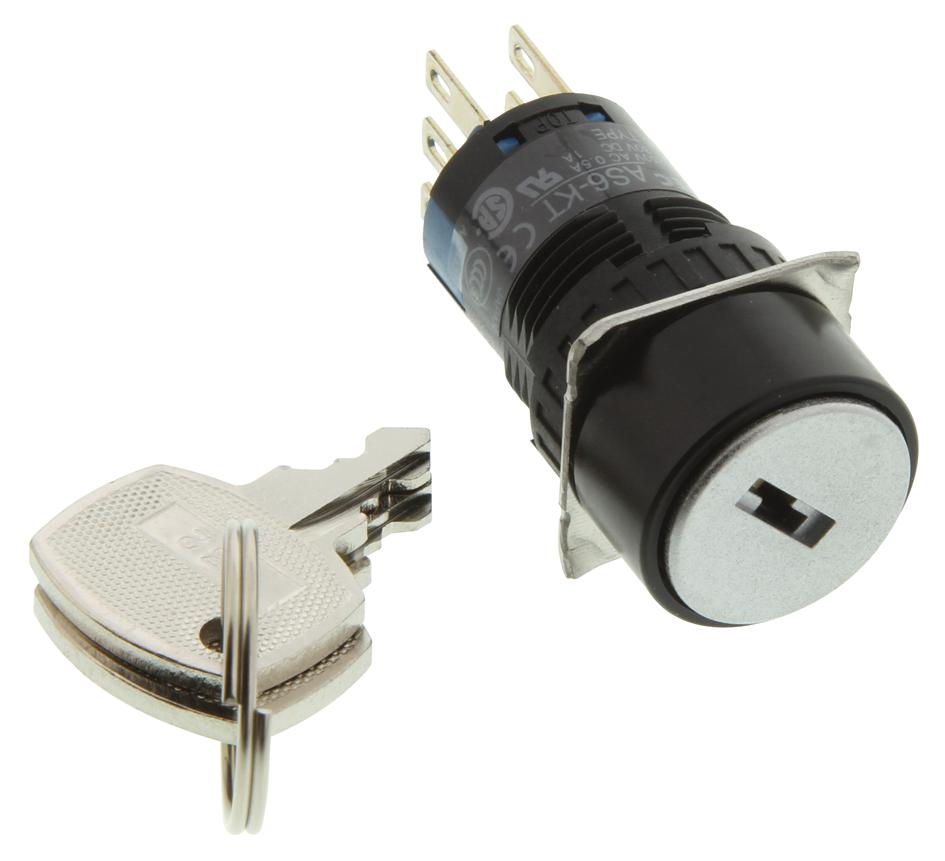

IDEC AS6M2KT2PA Miniature Pushbutton Switch
The IDEC A6 Series AS6M-2KT2PA is a versatile 16mm miniature pushbutton switch designed for space-constrained applications. Its key features include a compact footprint, snap-action contacts, and gold-clad silver contacts for enhanced reliability in low-level switching scenarios. Available in momentary, maintained, selector, and E-stop configurations, this switch caters to a wide range of industrial control needs. The switch offers IP40 (dustproof) or IP65 (oiltight) protection, ensuring durability in harsh environments. It is commonly used in industrial machinery, control panels, and other applications requiring robust and reliable pushbutton functionality.
IDEC AS6M2KT2PA Miniature Pushbutton Switch Specifications:
- Mounting Hole: 16mm (5/8")
- Illumination: LED
- Design: Compact
- Functions: Momentary, Maintained, Selectors, E-Stops
- Contacts: Gold-clad Silver
- Protection: IP40 (dustproof) or IP65 (oiltight)
- Maximum Voltage: 250V AC/DC
- Thermal Current: 3A
- Minimum Applicable Load: 5V AC/DC, 1mA
- Contact Resistance: 50mΩ maximum (initial value)
- Insulation Resistance: 100MΩ minimum (500V DC megger)
- Vibration Resistance: 10 to 55Hz, amplitude 1.5mm p-p
- Shock Resistance: Damage limits: 500m/sec2 (approx. 50G)
- Electrical Life: 100,000 operations minimum (at full rated load)
- Mechanical Life: Maintained: 100,000 operations minimum; Momentary: 1,000,000 operations minimum; Selector/Keylock: 250,000 operations minimum
- Dielectric Strength: Switch Unit: 2,000VAC, 1 min. between live/dead part and terminals of different poles; 1,000V AC, 1 minute between terminals of the same pole; 1,500V AC, 1 minute between contact and lamp terminals.
- Soldering Temperature: 20W/5 seconds or 260°C/3 seconds
