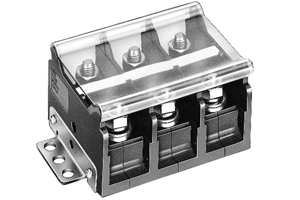

IDEC BN400NW2 Modular Terminal Block
The IDEC BN400NW2 is a modular terminal block designed for use in industrial automation and control systems. It mounts on a standard 35mm DIN rail and is constructed from UL94-V0 material, providing excellent flame and shock resistance. Key features include touch-down terminals with spring-loaded captive screws, available jumpers up to 50A models, and compatibility with fuse blocks. This terminal block is ideal for applications requiring reliable power distribution and control, such as machine lighting, safety circuits, and general-purpose power blocks.
IDEC BN400NW2 Modular Terminal Block Specifications:
- Insulation Voltage: 600V
- Dielectric Strength: 2,500V AC, 1 minute
- Insulation Resistance: 100MΩ minimum
- Operating Temperature: -25 to +55ºC
- Operating Humidity: 45 to 85% RH
- Mounting: 35mm standard DIN rail
- Wire Sizes: 22 to 16 AWG
- Terminal Type: Touch-down
- Terminal Torque: 0.6 - 1.0 N-m (5.3 - 8.9 in-lbs.)
