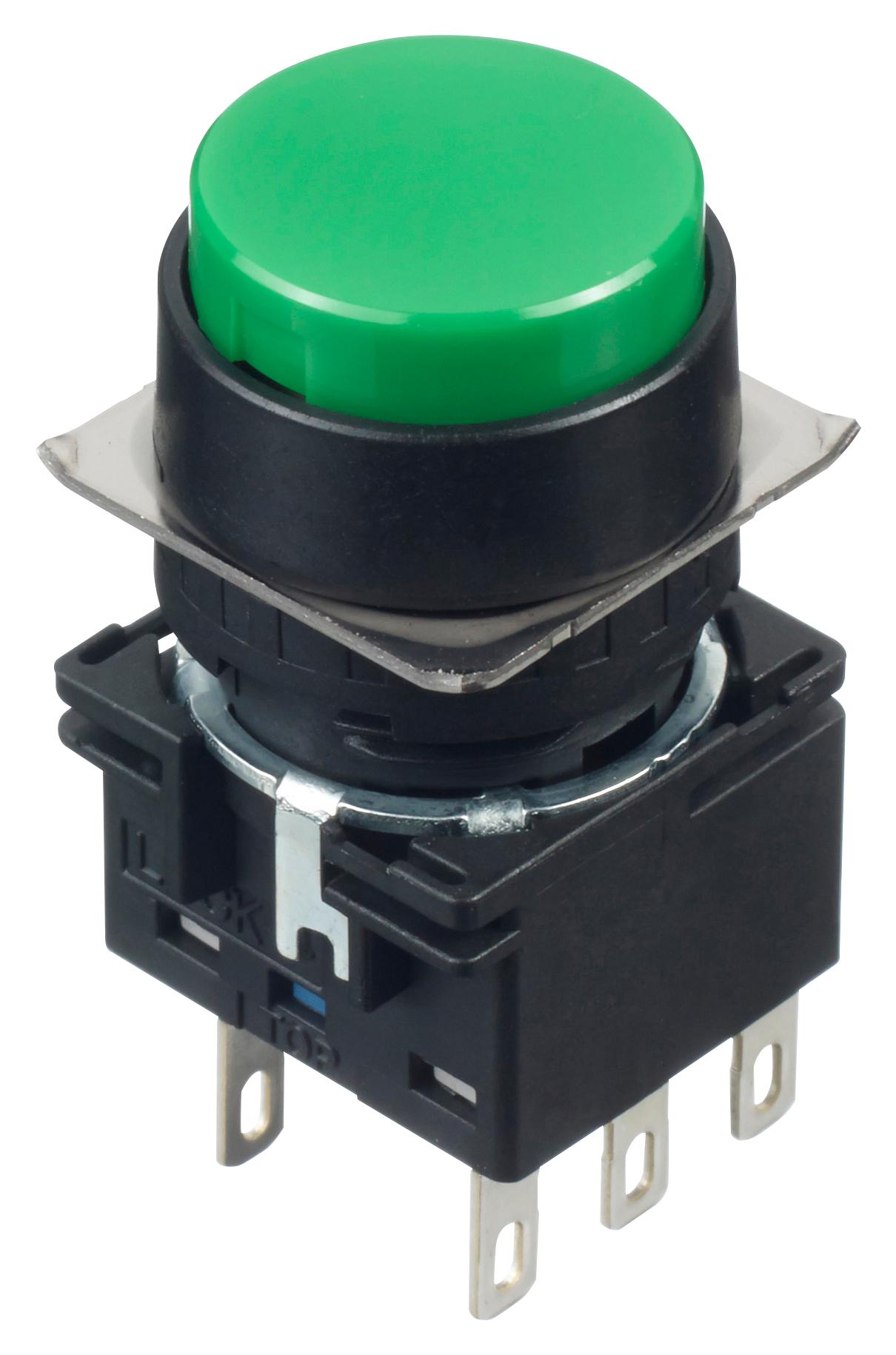

IDEC LB1BM1T6G Flush Mount Miniature Switch
The IDEC LB Series offers flush mount and 16mm miniature switches and pilot lights, ideal for applications requiring a stylish and space-saving design. The LB1B-M1T6G model provides a flush bezel that projects only 2mm from the panel surface and a compact depth of 27.9mm. It's suitable for environments needing IP65 protection, such as food and beverage processing. The switch features removable contact blocks for flexible mounting and offers a range of options including key selectors, illuminated pushbuttons, and various bezel colors. It's a versatile solution for industrial control panels and machinery.
IDEC LB1BM1T6G Flush Mount Miniature Switch Specifications:
- Operating Temperature: –25 to +60°C (no freezing)
- Storage Temperature: –30 to +80°C (no freezing)
- Operating Humidity: 45 to 85% RH (no condensation)
- Contact Resistance: 50 mW maximum (initial value)
- Insulation Resistance: 100 MW minimum (500V DC megger)
- Dielectric Strength: Switch: Between live part and ground: 2,000V AC, 1 min. Between terminals of different poles: 2,000V AC, 1 min. Between terminals of the same poles: 1,000V AC, 1 min. Illumination: Between live part and ground: 2,000V AC, 1 min.
- Vibration Resistance: Operating extremes/Damage limits: 5 to 55 Hz, amplitude 0.5mm
- Shock Resistance: Operating extremes: 100 m/s². Damage limits: 1,000 m/s²
- Mechanical Life: Momentary: 2,000,000 operations. Maintained: 250,000 operations. Selector switches: 250,000 operations. Key selector switches: 250,000 operations
- Electrical Life: Momentary: 50,000 / 100,000 operations. Maintained: 50,000 / 100,000 operations. Selector switches: 50,000 / 100,000 operations. Key selector switches: 50,000 / 100,000 operations
- Degree of Protection: IP65 (IEC 60529)
- Terminal Style: Solder/tab terminal #110, PC board terminal
- Bezel Weight (approx.): 11g (lever switch), 13g (pilot light, pushbutton), 14g (illuminated pushbutton, pushbutton with guard, buzzer), 15g (selector switch, illuminated pushbutton with guard), 27g (key selector switch)
