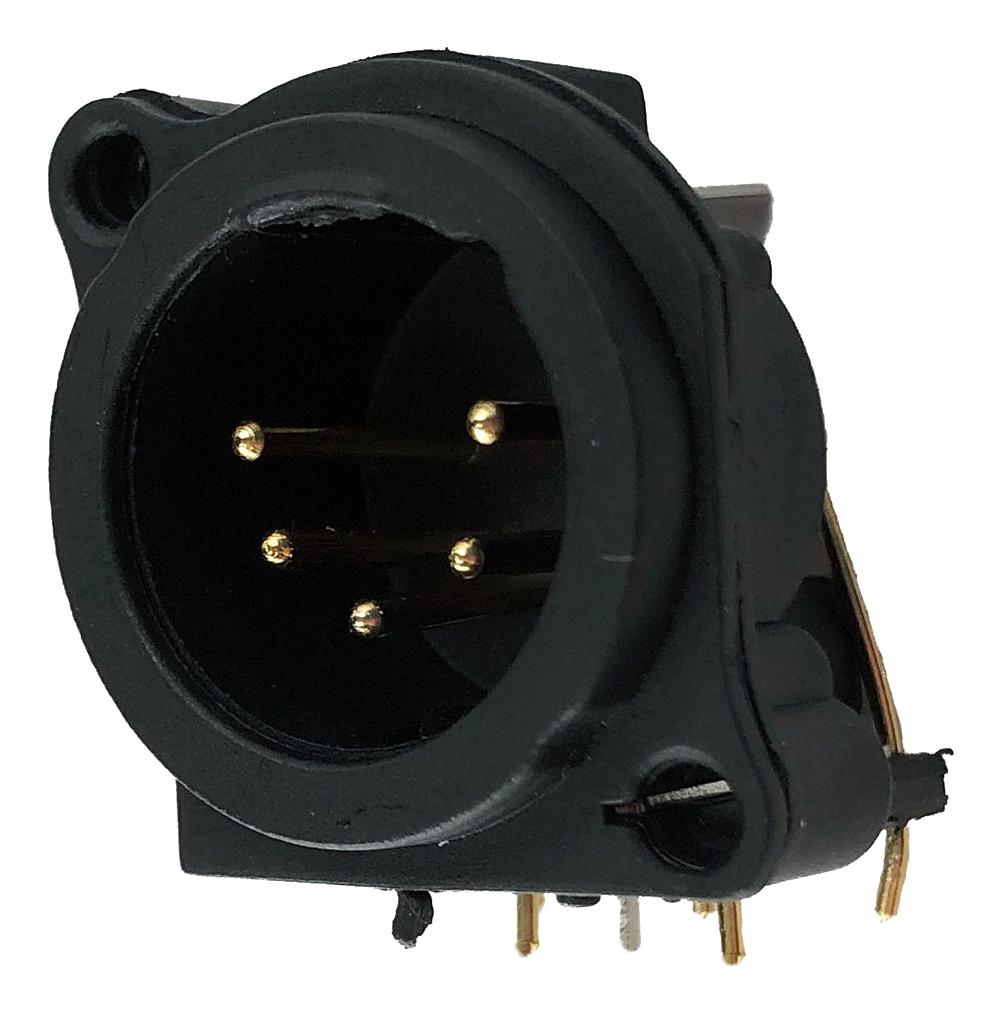

IO AUDIO TECHNOLOGIES IOXLR5MEH XLR Chassis Connector
The IOXLR5MEH is a horizontal PCB mount 5-pin XLR connector designed for audio and lighting control applications. Featuring a plastic body, gold-plated brass contacts, and a durable latch lock for secure connections, this male connector supports over 1000 mating cycles. It complies with IEC 61076-2-103 standards and UL flammability requirements. The connector operates within a temperature range of -40°C to +70°C, providing reliable performance in professional audio setups, broadcasting, and lighting installations where space-saving and high durability are essential.
IO AUDIO TECHNOLOGIES IOXLR5MEH XLR Chassis Connector Specifications:
- Gender: Male (IO-XLR5-M-EH)
- Contacts: 5
- Capacitance Between Contacts: 2 pF
- Capacitance Between Contact and Ground: 2 pF
- Contact Resistance: < 6 mΩ
- Insulation Resistance: 2500 MΩ
- Dielectric Strength: 1500V @ 60s
- Current Rating: 3 A/50 V AC
- Temperature Range: -40°C to +70°C
- Mechanical Lifetime: > 1000 Mating Cycles
- Housing Material: PA with black finish
- Contact Material: Brass with 0.05 μm gold plating
- Ground Terminal: Brass with Nickel finish
- Latch: Stainless Steel with Nickel finish
- Environmental: IEC 61076-2-103, UL 94 HB flammability
- Mounting: Horizontal PCB with rear mounting direction
- Operating Temperature: -40°C to +70°C
Buy the Audio Technologies Series XLR: IOXLR5MEH
Purchase the reliable and durable XLR chassis connector IOXLR5MEH online today. Perfect for audio, lighting, and control systems where space efficiency and high performance are essential. Featuring a compact plastic housing, gold-plated brass contacts, and a secure latch lock, this connector provides over 1000 mating cycles. Designed to operate between -40°C and +70°C, it complies with IEC standards and UL flammability requirements. Ensure your professional setups are connected with precision, durability, and confidence by ordering online now.
Order your Audio Technologies Series XLR connector IOXLR5MEH today and ensure reliable, space-saving connections for professional audio and lighting projects.
