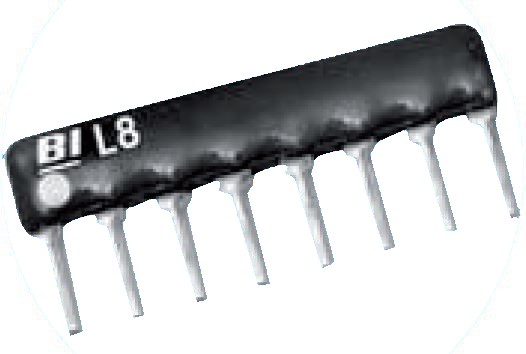

IRC L061C472 SIL Resistor Network
The IRC L061C472 is a SIL resistor network within the L Series, designed for applications requiring compact and reliable resistance solutions. It utilizes a thick film construction with a conformal epoxy resin body, providing environmental protection. The network is RoHS compliant and operates effectively across a wide temperature range (-55°C to +125°C). Typical applications include industrial control systems, instrumentation, and other electronic devices where space is limited and consistent performance is critical. The part offers various resistance ranges and tolerances to meet diverse circuit requirements.
IRC L061C472 SIL Resistor Network Specifications:
- Standard Resistance Range: 1%: 22R - 1M; 2%:10R - 5M6; 5%: 10R - 10M
- Resistance Tolerance: ±2% (Optional: ±1% (F Tol.), ±5% (J Tol.)
- Operating Temperature Range: -55°C to +125°C
- Temperature Coefficient of Resistance: ±100ppm/°C (<50 Ohms = ±250ppm/°C)
- Temperature Coefficient of Resistance, Tracking: ±50ppm/°C
- Power Rating per Resistor Element: Circuits -1 & -5: 125mW, circuit -3: 200mW
- Maximum Operating Voltage: 100Vdc or √PR
- Insulation Resistance: ≥10,000 Megohms
- Lead Finish: SnAgCu
- Substrate Material: Alumina
- Resistor Material: Cermet
- Body Material: Conformal Epoxy Resin, red or black
- Flammability: UL-94V-O Rated
