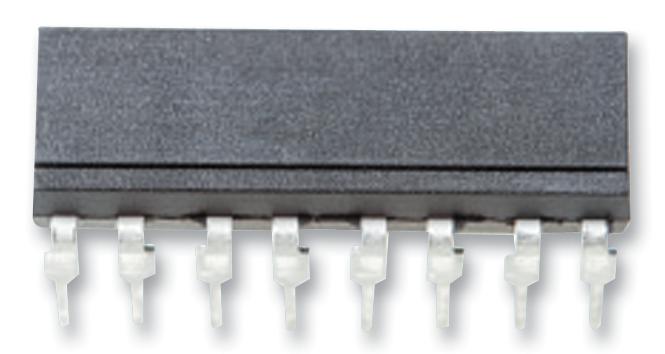

ISOCOM ISQ201X High-Density Optocoupler
The ISQ201X is a high-density, 4-channel optically coupled isolator with infrared LEDs and NPN silicon phototransistors, suitable for industrial and signal transmission applications. It offers a minimum BVCEO of 70V, a forward current of 50mA, and a reverse voltage of 6V, with all electrical parameters 100% tested for reliability. Its high isolation voltage of 5.3kVrms and 7.5kVpk ensures excellent electrical separation. Compact, dual in-line package design makes it ideal for industrial system controllers, computer interfaces, and signal processing, providing secure and efficient system isolation.
ISOCOM ISQ201X High-Density Optocoupler Specifications:
- High Isolation Voltage: 5.3kVrms, 7.5kVpk
- Input LED Forward Current: 50mA
- Reverse Voltage: 6V
- Collector-emitter Breakdown Voltage: 70V
- Emitter-collector Breakdown Voltage: 6V
- Power Dissipation: Total 170mW
- Storage Temperature: -40°C to +125°C
- Operating Temperature: -25°C to +100°C
- Lead Soldering Temperature: 260°C for 10 sec at 1.6mm from case
- Dimensions: Standard dual in-line package with 16 pins, pin pitch approximately 2.54mm
- Electrical Characteristics: CTR ranges from 10% to 125%, depending on model; Input voltage at 1.2V typical, max 1.65V; Dark current at 50nA; Saturation voltage around 0.2V at 10mA collector current.
Buy the ISOCOM Series Optocoupler: ISQ201X
Purchase the ISOCOM Series ISQ201X high-density optocoupler online now for precise, reliable signal isolation in industrial control and communication systems. Featuring infrared LEDs and silicon phototransistors, this component offers high isolation voltage up to 5.3kVrms and a maximum power dissipation of 170mW. Its compact dual in-line package with 16 pins ensures easy integration into various electronic assemblies, providing dependable electrical separation and safety across multiple applications including industrial controllers, computer interfaces, and signal transmission setups. Order today for fast delivery and optimal performance!
Get ISOCOM Series ISQ201X high-density optocoupler today—built for industrial signal isolation and reliable data transmission in demanding environments.
Frequently Asked Questions
Where can I buy ISOCOM ISQ201X?
You can click on the BUY or RFQ button to purchase ISQ201X from an authorized ISOCOM distributor.
How do I troubleshoot issues or seek technical support for part ISQ201X?
You can download the ISQ201X datasheet or visit the ISOCOM website for support.
Who is the manufacturer of ISQ201X?
ISOCOM
