ITT CANNON 0302492001 high-density connector
The Cannon DL series offers high-performance, cost-effective Zero Insertion Force connectors suitable for medical, industrial, computer, and peripheral applications. Designed for durability with a minimum rated life of 10,000 mating cycles, they feature effortless mate/unmate in under two seconds with up to 2496 contacts. Crafted from commercial-grade materials, these connectors support hand or machine termination, including crimp, PCB, and wrappable hermaphroditic contacts. They are ideal for high-density power and signal connections needing reliability and rapid operation in cost-sensitive environments.
ITT CANNON 0302492001 high-density connector Specifications:
- Material: Insulator: Plastic; Housing: Nylon; Contacts: Copper alloy; Finishes: Gold over nickel
- Number of Contacts: Up to 2496 signal contacts
- Wire Size: #18 AWG through #42 AWG
- Electrical Data: Max Voltage 5 A, 750 VAC RMS in general
- Mechanical Data: Actuation: Lever, Coupling: Dual latch, Contact Spacing: 2.54 mm square grid, Shell Styles: Plug and Receptacle
- Durability: Minimum 10,000 mating cycles, Contact Resistance: 15 mΩ max for crimp/square post, 20 mΩ max for crimp #30-#32 AWG, 30 mΩ max for PC/RC, Insulation Resistance: 5000 MΩ min
- Operating Temperature: -55°C to +105°C
- Compliance: RoHS compliant, Supports PCB through-hole and press-fit mounting

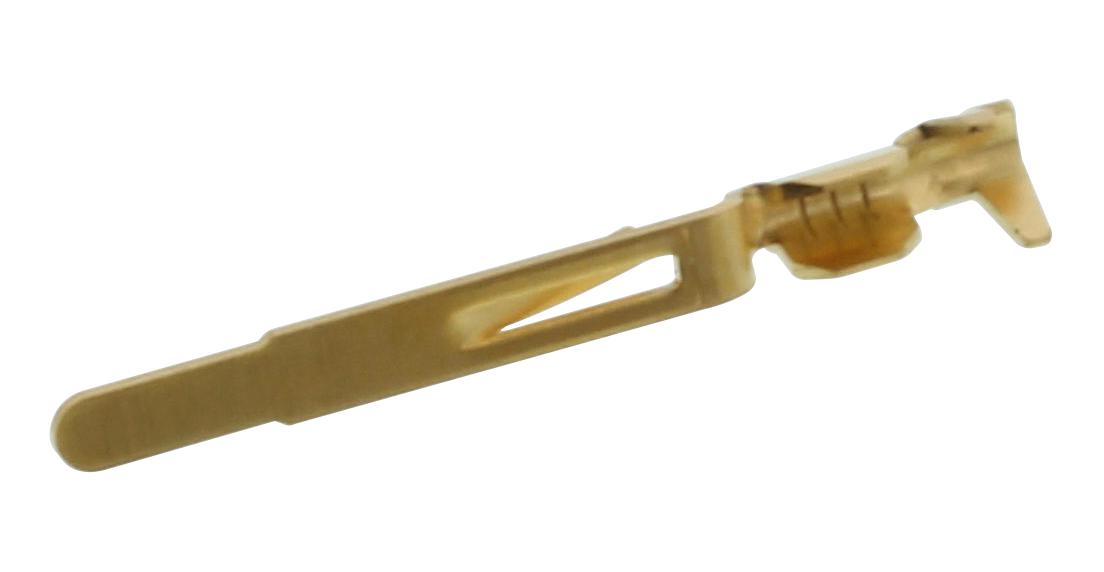

Buy the Buy Cannon DL Series Interconnect Connectors Part Number 0302492001 Online
Purchase the Cannon DL series high-performance ZIF connector online today. This cost-effective solution features up to 2496 contacts, rapid mating, and exceptional durability. Suitable for medical, industrial, and computer environments, the DL connector supports hand or machine termination with crimp, PCB, or wrappable hermaphroditic contacts. Its robust design ensures a minimum of 10,000 mating cycles, offering long-term reliability. Order now to benefit from fast delivery, comprehensive support, and a high-quality interconnect that meets stringent industry standards for performance and longevity.
Order your Cannon DL series high-density ZIF connector with up to 2496 contacts today and ensure reliable, cost-effective connections for your demanding applications.
Frequently Asked Questions
Where can I buy ITT CANNON 0302492001?
You can click on the BUY or RFQ button to purchase 0302492001 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part 0302492001?
You can download the 0302492001 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of 0302492001?
ITT CANNON
