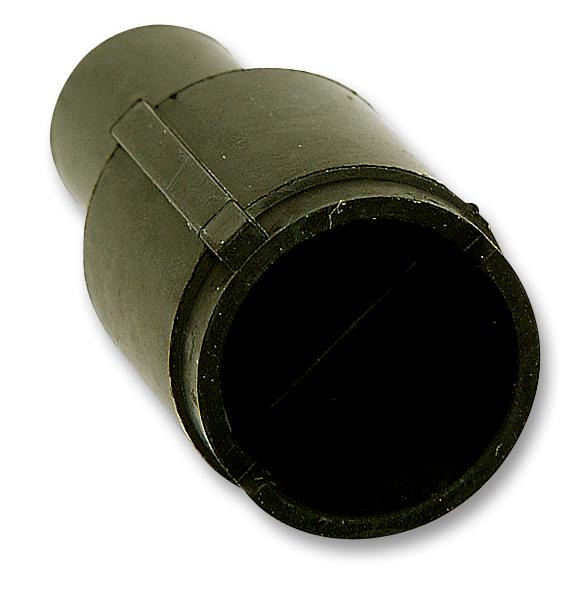

ITT CANNON 1208551007 Waterproof Connector
The Mini SURE-SEAL is a reliable waterproof connector suitable for demanding industrial environments. Crafted with stamped copper alloy contacts and nitrile-butadiene rubber seals, it offers excellent electrical performance with a maximum contact resistance of 10 milliohms. Its robust construction withstands temperatures from -40°C to 105°C and is rated for a voltage of 1200 VAC. Suitable for wire ranges from 0.4 to 1.5 mm² (AWG 20-14), it features IP67 sealing, durability of 50 mating cycles, and resistance to salt spray, humidity, and vibration, making it ideal for outdoor and harsh conditions.
ITT CANNON 1208551007 Waterproof Connector Specifications:
- Materials: Plug and receptacle made with Perbunan or Nitrile-Butadiene rubber
- Contacts: Stamped and machined copper alloy, tin plated or hard silver plated
- Contact resistance: 10 Milliohms max.
- Insulation resistance: 100 Mohms min.
- Dielectric withstanding voltage: 1200 VAC at sea level
- Wire range: 0.4-1.5 mm² (AWG 20-14)
- Sealing range: 2.4-3.3 mm and 1.8-2.8 mm diameter
- Insulation stripping length: 3.0-4.7 mm
- Temperature rating: -40°C to +105°C
- Sealing capability: IP67 according to DIN 40050
- Weather, ozone, UV resistance as per ASTM standards
- Durability: 50 mating cycles
- Salt spray test: MIL-STD-202D, Method 101 D
- Humidity resistance: 95% at 95°C for 1000 hours
- Vibration: 10-55 Hz, 0.06” DA, 1 hour per plane
- Shock: 50 g, 11 ms, 30 cycles
Buy the ITTCannon Series Mini SURE-SEAL Waterproof Connector: 1208551007
Purchase your ITTCannon Series Mini SURE-SEAL waterproof connector online today and benefit from its superior sealing, rugged durability, and excellent electrical performance. Engineered for harsh environments, this connector offers optimal protection with IP67 rating, resistances to salt spray, humidity, and UV exposure. Its compact design and robust copper contacts simplify installation and maintenance, making it perfect for outdoor and industrial applications. Secure your electrical connections with confidence—order now and enjoy fast delivery and trusted quality.
Order your ITTCannon Series Mini SURE-SEAL waterproof connector today and ensure reliable, weatherproof connections in your industrial projects.
