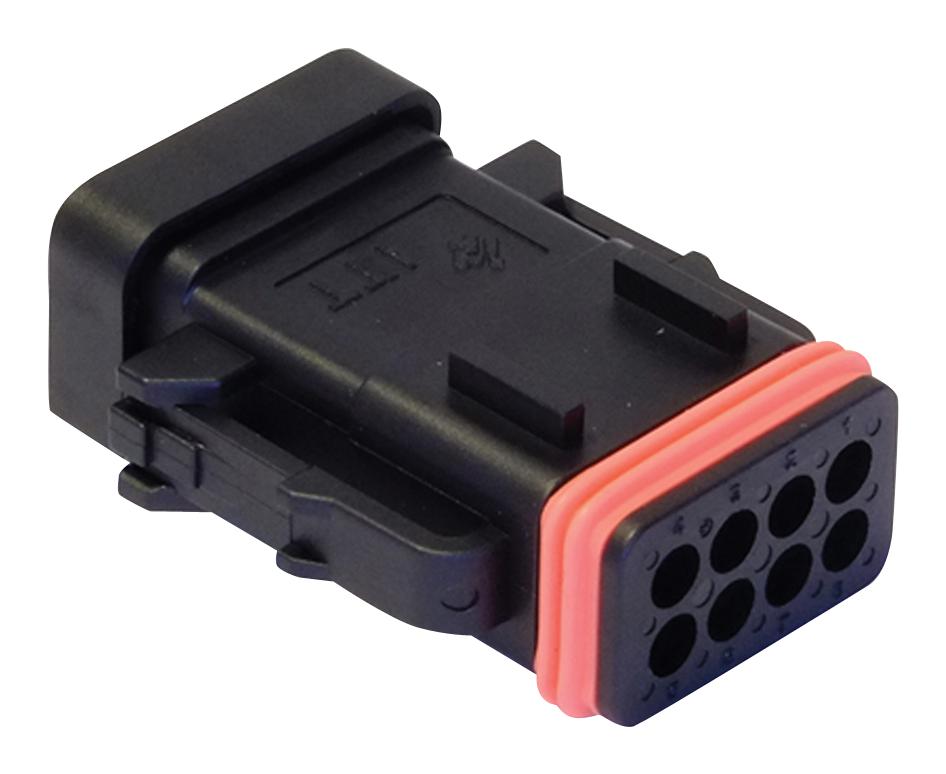

ITT CANNON 1320150134 Outdoor Power Connector
The ITT Cannon CTC Series is a robust, cost-effective connector designed for outdoor heavy equipment, agricultural machinery, trucks, buses, and industrial applications. Featuring high-performance Trident T2P and T3P contact technology, it offers sealing ratings up to IP69K without wedge locks. The rugged thermoplastic housing includes an integral coupling latch with tactile and audible feedback. Suitable for inline cable-to-cable connections, it accepts wires from 24 to 16 AWG (-0.20 to 1.50 mm²). Operating across -55°C to +105°C, it ensures reliable signal transmission in extreme conditions with up to 500 mating cycles.
ITT CANNON 1320150134 Outdoor Power Connector Specifications:
- Current Rating: Up to 13A, up to 16A with high conductivity contacts
- Operation Voltage: Up to 250V ac rms
- Wire Range: 24-16 AWG (0.20 to 1.50 mm²)
- Operating Temperature: -55°C to +105°C (-67°F to +221°F)
- Durability: 200 cycles (T2P) and up to 500 cycles (T3P)
- Sealing: Up to IP69K with end caps
- Flammability: UL 94 V-0
- Dielectric Voltage: 1550 V ac for 60 seconds
- Thermal Shock: -55°C to +125°C (-67°F to +257°F), 5 cycles
- Environmental Resistance: Fluid resistance, salt spray 48 hours, moisture resistance 1000 hours at 125°C
- Housing Material: Thermoplastic
- Seal Gasket Material: Silicone rubber
- Connectors include brass, copper alloy, stainless steel with tin, gold, silver plating
Buy the Buy ITT Cannon CTC Series Part Number 1320150134 Online
Order the ITT Cannon CTC Series connector online today to ensure reliable, waterproof signal transmission for heavy machinery and industrial equipment. Designed for demanding outdoor applications, it features IP69K sealing, rugged thermoplastic housing, and accepts wires from 24 to 16 AWG. Easy to install with an integral coupling latch providing tactile and audible feedback. Suitable for -55°C to +105°C environments, with up to 500 cycles, ensuring durability and performance in harsh conditions. Perfect for industrial, agricultural, and transportation needs.
Get ITT Cannon CTC Series Part Number 1320150134 today—built for reliability in demanding outdoor environments and industrial applications.
Frequently Asked Questions
Where can I buy ITT CANNON 1320150134?
You can click on the BUY or RFQ button to purchase 1320150134 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part 1320150134?
You can download the 1320150134 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of 1320150134?
ITT CANNON
