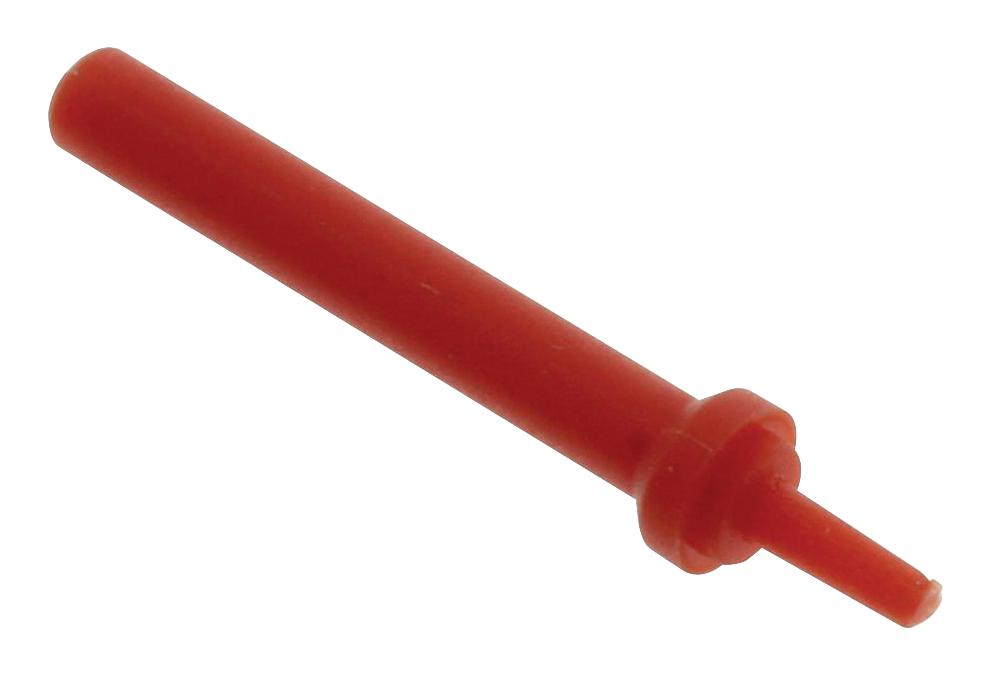

ITT CANNON 2251011000 Miniature Circular Connector
ITT CANNON's KPT, KPSE, and KPTC series miniature circular connectors are engineered for robust performance and versatility. Conforming to MIL-C-26482 and VG95328 standards, these connectors provide a reliable interconnect solution for a wide range of applications, including transportation, oil & gas, aerospace, computer, instrumentation, defense vehicles, and automotive industries. They feature a positive three-point bayonet coupling, five-keyway polarization, and high insert arrangement contact density, ensuring secure and efficient connections. Available with various plating options and contact termination methods (solder or crimp), these connectors offer flexibility for diverse design requirements.
ITT CANNON 2251011000 Miniature Circular Connector Specifications:
- Shell: Aluminum alloy, various RoHS compliant plating options
- Insulator: Polychloroprene
- Grommet and seal: Polychloroprene
- Contacts: Copper alloy, gold and tinplated (KPT), Copper alloy, gold and tinplated (KPSE), Copper alloy, hardgold and tinplated (KPTC)
- Shell styles: 00, 07, 01, 08, B, 06
- Shell size: 8 through 24
- Polarization / Coupling: Five keyways / 3-point bayonet
- Service classes: A, E, F, PG, ME
- Environmental sealing: According to VG95319 Part 2, Test No. 5.9.2
- Operating temperature: -55 / +125°C
- Durability: 500 mating cycles
- Vibration: 200 m/s² at 10 to 2000 Hz
- Number of contacts: 2 through 61
- Wire size AWG: 16 through 24 (KPT), 12 through 24 (KPSE/KPTC)
- Contact termination: Solder (KPT), Crimp/Solder (KPSE/KPTC)
- Contact rating: Size 20, 16, 7.5, 13.0
- Insulation resistance: ~ 5000 MΩ
Buy the 225-1011-000 ITT CANNON Miniature Circular Connector | myMectronic
Purchase the ITT CANNON 225-1011-000 Miniature Circular Connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy ITT CANNON 2251011000?
You can click on the BUY or RFQ button to purchase 2251011000 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part 2251011000?
You can download the 2251011000 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of 2251011000?
ITT CANNON
