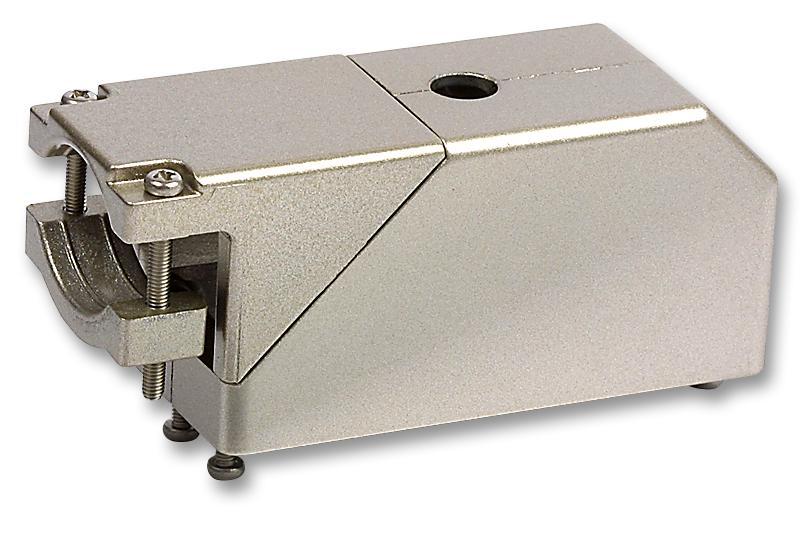

ITT CANNON 2494517000 connector backshell
The metal backshell for DL2 and DLM2 ZIF connectors is constructed from die-cast aluminum with a nickel plating, offering effective EMI/RFI shielding in various industrial, commercial, and agricultural applications. It features a shielded two-piece shell design, includes mounting hardware made of stainless steel, and accommodates cables up to 22.22 mm (.875 inches) in diameter. The backshell ensures secure attachment with provisions for straight or 90° cable entry and improves system integrity by preventing electromagnetic interference. Its durable finish and easy installation make it suitable for high-density connector systems requiring reliable electromagnetic shielding.
ITT CANNON 2494517000 connector backshell Specifications:
- Material: Die cast aluminum with nickel plating
- Applicable to: DL2, DLM2 connectors
- Cable entry: Straight or 90°
- Cable diameter: Up to 22.22 mm (.875 inches)
- Mounting hardware: Stainless steel screws
- Design: Two-piece shell with mounting provisions
- EMI/RFI shielding: Yes, nickel finish enhances shielding effectiveness
- Maximum length: 36.90 mm (1.453 inches)
- Width: 26.00 mm (1.024 inches)
- Overall length: 100.00 mm (3.937 inches) with tolerance of +/- 0.15 mm
- Finished: Nickel over die-cast aluminum
- Application: Suitable for industrial, commercial, agricultural sectors requiring electromagnetic interference shielding
Buy the Cannon 249-4517-000 – Reliable EMI/RFI Shielding Backshell for Industrial Applications
Order the Cannon 249-4517-000 backshell online for exceptional electromagnetic interference protection and durable, versatile design suitable for industrial, commercial, and agricultural projects. Its nickel-plated die-cast aluminum shell features a two-piece design with straight or 90° cable entry options, accommodating cables up to 22.22 mm in diameter. Includes stainless steel mounting hardware and ensures easy installation. Enhance your system’s performance with a shielded, high-quality backshell designed for demanding environments requiring robust EMI/RFI shielding and reliable attachment.
Get Cannon 249-4517-000 today—built for precision and long-lasting durability in high-density connector systems.
Frequently Asked Questions
Where can I buy ITT CANNON 2494517000?
You can click on the BUY or RFQ button to purchase 2494517000 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part 2494517000?
You can download the 2494517000 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of 2494517000?
ITT CANNON
