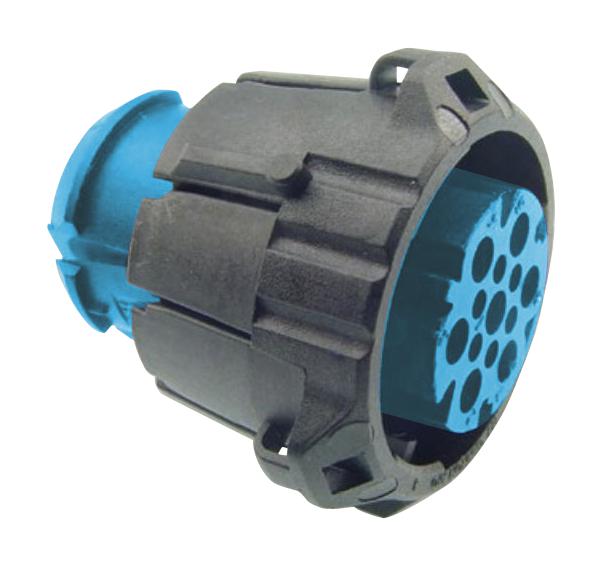

ITT CANNON APD14BS7 industrial connector
The APD-14BS7 is a highly reliable 7-way connector designed for transportation applications, featuring IP67 sealing, withstands temperatures from -40°C to 125°C, and offers a durability of 50 mating cycles. It supports 48 VDC operation with a maximum contact resistance of 5 mΩ and a voltage proof of 1000 V. Constructed with PBT GF housing and HNBR sealing material, it ensures optimal protection against moisture, vibration, and salt spray, making it ideal for harsh industrial environments and mobile equipment. Its robust design ensures long-lasting performance and secure connections.
ITT CANNON APD14BS7 industrial connector Specifications:
- Connector Type: Plug
- Gender: Socket
- Coding: Code 4 - blue (RAL 5012)
- Operating Voltage: 48 VDC
- Contact Resistance: 5 mΩ max.
- Voltage Proof: 1000 VAG, 60 seconds
- Insulator Resistance: 10 MΩ min.
- Durability: 50 Mating Cycles
- Coupling Torque: 4.2 Nm max
- Static Load: 350 N
- Temperature Range: -40°C to 125°C
- Sealing: IP 67
- Salt Spray Resistance: 96 hours at 35°C
- Vibration Resistance: Sine, 200 m/s², 3x 100h
- Housing Material: PBT GF
- Sealing Material: HNBR (or FKM)
- Coupling Nut Material: PA 66 GF
- Fluid Compatibility: Brake fluid, ATF, fuel
- Humidity Range: up to 95% relative humidity
Buy the Buy Cannon APD-14BS7 Part Number APD14BS7 Online
Enhance your project with the Cannon APD-14BS7 connector, designed for demanding transportation and industrial applications. With sealed IP67 protection, support for 48 VDC, and robust construction using PBT GF and HNBR materials, it ensures long-lasting, dependable connections even in challenging conditions. Its compact plug design provides easy mating, and the support for 50 mating cycles guarantees durability. Safety and performance are prioritized, making it ideal for harsh environments requiring reliable electrical connectivity, vibration resistance, and salt spray durability. Buy online today for professional-grade connection solutions.
Order your Cannon SeriesAPD14BS7 waterproof connector today and secure reliable, high-performance connections for harsh industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON APD14BS7?
You can click on the BUY or RFQ button to purchase APD14BS7 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part APD14BS7?
You can download the APD14BS7 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of APD14BS7?
ITT CANNON
