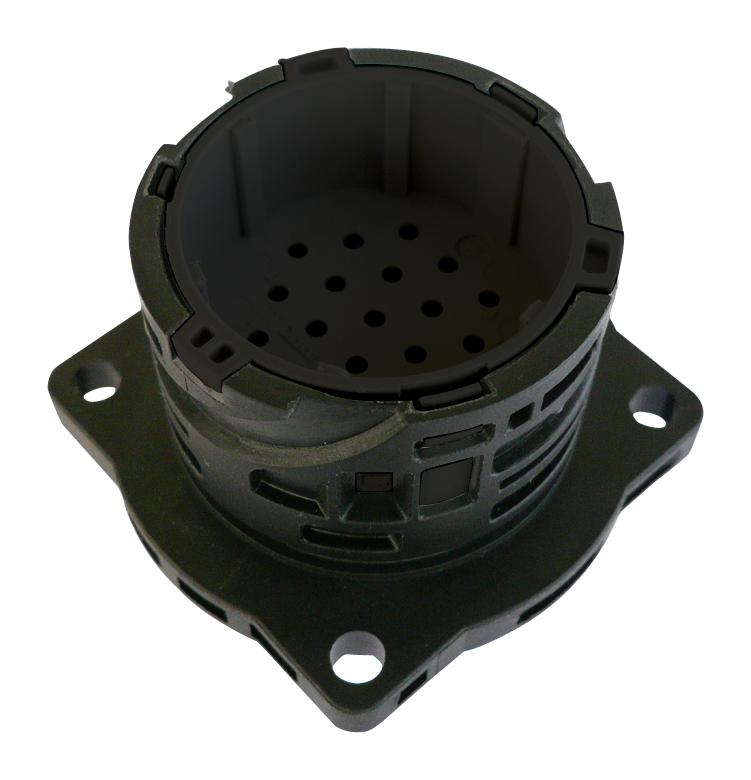

ITT CANNON APD1AP19SF 19-way flange receptacle connector
The APD 19-way flange receptacle connector from the Series APD is designed for harsh environments in transportation applications. It features a pin gender, front mounting method, and IP67 sealing for dust and water resistance. Operating at 48 VDC with a maximum voltage proof of 1000 V, it offers a durability of 50 mating cycles. Made with a PBT GF housing, FKM sealing material, and PA 46 GF coupling nut, it withstands temperatures from -40°C to 125°C, vibration, and salt spray, ensuring reliable performance in demanding conditions.
ITT CANNON APD1AP19SF 19-way flange receptacle connector Specifications:
- Connector Type: Flange Receptacle
- Gender: Pin
- Series: APD
- Number of Ways: 19
- Mounting Method: Front Mount
- Operating Voltage: 48 VDC
- Voltage Proof: 1000 VAG, 60 seconds
- Contact Resistance: 5 mΩ max.
- Insulator Resistance: 10 MΩ min.
- Durability: 50 Mating Cycles
- Sealing: IP 67
- Temperature Range: -40°C to 125°C
- Humidity Range: up to 95% r.h.
- Vibration Resistance: Sine, 300 m/s², 3x 100h
- Salt Spray: 96 hours at 35°C
- Housing Material: PBT GF
- Sealing Material: FKM
- Coupling Nut Material: PA 46 GF
- Mechanical Keying: Code 1 - black (RAL 9005)
Buy the Cannon Series APD 19-way Flange Receptacle Connector: APD1AP19SF
Secure your transportation systems with the 19-way flange receptacle connector from Cannon's APD Series. Designed for harsh environments, it features IP67 sealing, robust materials, and a durable 50 mating cycle lifespan. Operating at 48VDC, it withstands temperature extremes from -40°C to 125°C, vibrations, and salt spray, ensuring long-lasting performance. Its front mounting design facilitates easy installation, making it ideal for demanding transportation applications where reliability and durability are essential.
Buy Cannon APD 19-way flange receptacle connector now and experience unmatched reliability and performance in demanding transportation environments.
