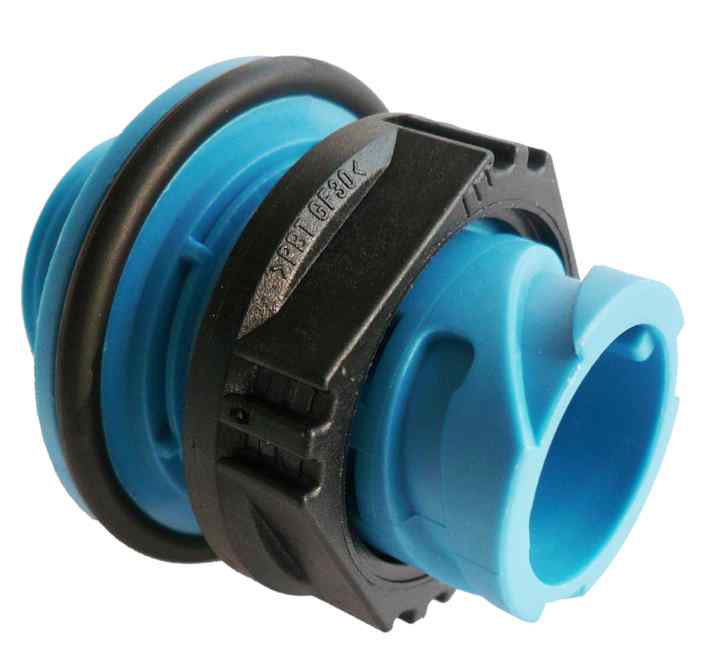

ITT CANNON APD5CPH High Power 1-way Connector
The ITT CANNON APD-5CP-H is a robust circular connector specifically engineered for use in transportation and industrial environments. This jam nut receptacle connector offers a secure connection with a pin gender configuration and is designed to withstand harsh conditions. It boasts an IP67 sealing rating, ensuring protection against dust and water ingress. The connector's wide operating temperature range (-40°C to 125°C) and resistance to vibration, fluids, and industrial climates make it suitable for a variety of demanding applications. Contact material must be ordered separately.
ITT CANNON APD5CPH High Power 1-way Connector Specifications:
- Series: APD High Power 1-way
- Connector Type: Jam Nut Receptacle
- Gender: Pin
- Coding: Code 5 - blue (RAL 5012)
- Operating Voltage: 48 VDC
- Operating Current: see derating curve (catalog)
- Contact Resistance: 0,4 mΩ max
- Voltage Proof: 1000 VAC, 60 seconds
- Insulator Resistance: 10 MΩ min.
- Durability: 50 Mating Cycles
- Coupling Torque: 2 Nm max
- Static Load: 350 N (ISO 15170-2, Sec. 4.6)
- Temperature Range: -40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)
- Humidity Range: up to 95 % r.h. (ISO 15170-2, Sec. 6.4)
- Sealing: IP 67 (DIN EN 60529)
- Salt Spray: 96 h, 35 °C (ISO 15170-2, Sec. 6.2)
- Industrial Climate: SO2, 0,67 % (ISO 15170-2, Sec. 6.3)
- Fluid Compatibility: Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
- Vibration Resistance: Sine, 100 m/s², 3 axis, 24h, RT (EN 60512)
- Housing Material: PBT GF
- Sealing Material: HNBR (alternative FKM)
- Coupling Nut Material: PA 66 GF
- Contacts Material: please order contact separately
