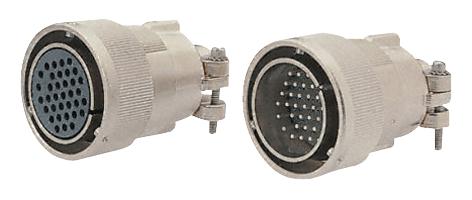

ITT CANNON CA06COME14S7PB01A176 Industrial bayonet connector
The CA COM-B series bayonet connector is a robust, straight shell plug designed for reliable industrial applications. It features a compact aluminium shell with nickel plating, high-quality copper alloy contacts with gold plating, and an IP67 safety rating when used with a grommet. This connector supports 3 contacts size 16S, with a contact resistance of GNA, and a maximum mating cycle of 500. Suitable for operating temperatures from -55°C to +125°C, it ensures durability against harsh environments with a test voltage of 1600 V and insulator resistance of 21000 MO. Easy to assemble and connect, it is ideal for demanding automation and control systems.
ITT CANNON CA06COME14S7PB01A176 Industrial bayonet connector Specifications:
- Shell Material: Aluminium alloy, Nickel plated
- Contact Material: Copper alloy, Gold plated 0.5 micron
- Contact Arrangement: 148-7, 3 contacts size 16S
- Contact Resistance: GNA
- Insulator Resistance: 21000 MO
- Test Voltage: 1600 Virms
- Operating Temperature: -55°C to +125°C
- IP Rating: IP67 (with grommet)
- Mating Cycles: Minimum 500
- Coupling Torque: Closing 3.0 Nm max, Opening 0.35 Nm min
- Wire Stripping Length: 6.2 mm
- Air and Creepage Path: Minimum 4.4 mm
- Dimensions and compatibility: Refer to catalog Gage VG95234, part 4
- Sealing and safety provisions: Valid with grommet, suitable for demanding industrial environments
- Assembly instructions available for contact cross-section and insulator diameter
Buy the Cannon Series CA COM-B Bayonet Connector: CA06COME14S-7PB01A176
Purchase the Cannon Series CA COM-B bayonet connector online today and enjoy efficient, secure connections for your industrial automation projects. Designed with durable aluminium shells and gold-plated contacts, this connector offers IP67 protection and supports 3 contacts for reliable signal and power transfer. Ideal for harsh environments, it withstands extreme temperatures from -55°C to +125°C and ensures long-lasting performance with a minimum of 500 mating cycles. Easy to install with clear instructions, making it perfect for control systems requiring durability and stability.
Buy Cannon Series CA COM-B bayonet connector now and experience unmatched reliability, durability, and quick connection in harsh industrial environments.
Frequently Asked Questions
Where can I buy ITT CANNON CA06COME14S7PB01A176?
You can click on the BUY or RFQ button to purchase CA06COME14S7PB01A176 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part CA06COME14S7PB01A176?
You can download the CA06COME14S7PB01A176 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of CA06COME14S7PB01A176?
ITT CANNON
