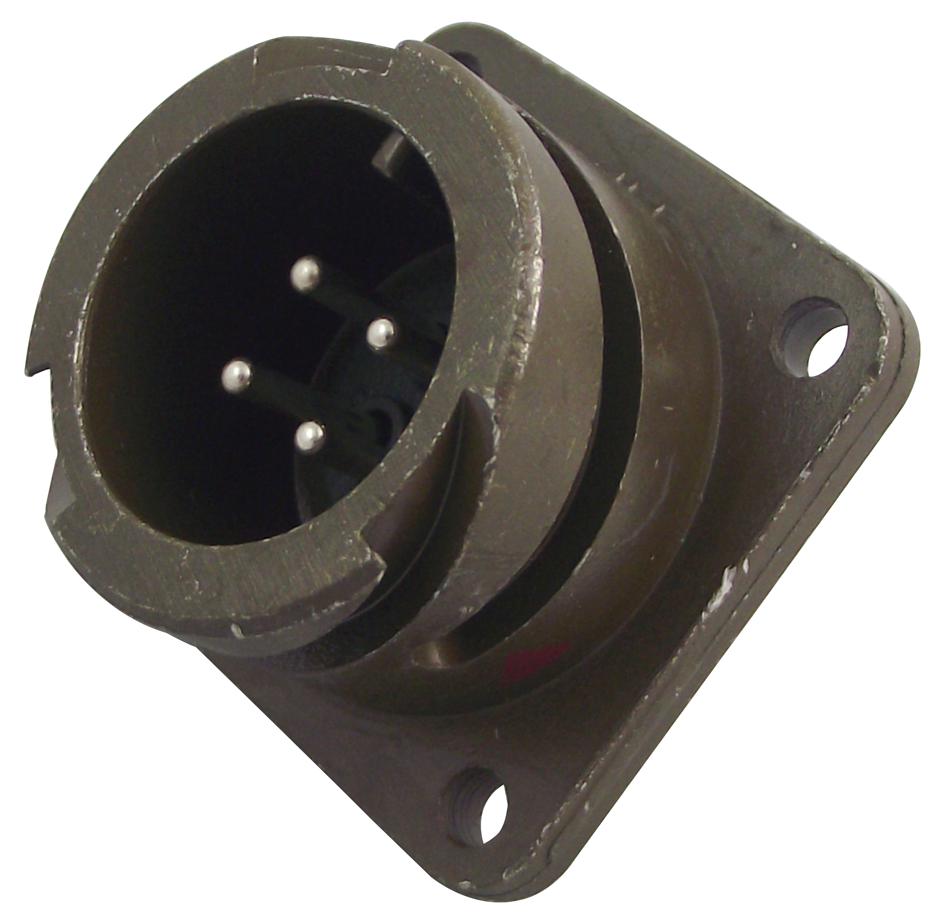

ITT CANNON CA3102E14S2PB Circular Bayonet Connector
The CA3102E14S2PB is a rugged circular bayonet connector featuring a box mounting receptacle with a pin gender design. It has a shell size of 148 and a contact arrangement of 148-2, accommodating 4 solder cup contacts made from copper alloy with hard silver plating. The connector is rated for operating voltages exceeding 50V in accordance with DIN VDE and IEC standards, with a minimum insulation resistance of over 1000 MΩ. Designed for outdoor and harsh environments, it offers IP67/IP68 sealing, salt spray resistance for 500 hours, and supports up to 500 mating cycles. The shell is made of aluminium alloy with olive drab chromate over cadmium plating, ensuring durability and conductivity.
ITT CANNON CA3102E14S2PB Circular Bayonet Connector Specifications:
- Shell Size: 148
- Contact Arrangement: 148-2
- Number of contacts: 4, size 16S
- Contact Type: Solder Cup
- Contact Material: Copper alloy
- Contact Plating: Hard silver
- Shell Material: Aluminium alloy
- Shell Plating: Olive drab chromate over cadmium
- Insulator and Grommet Material: CR-Elastomere
- Test Voltage: 1050 Vrms
- Operating Voltage: > 50V as per DIN VDE and IEC standards
- Insulation Resistance: > 1000 MΩ
- Air and Creepage Paths: Min 0.7 mm
- Ambient Temperature Range: -55°C to +125°C
- Sealing: IP67 and IP68 after 12 hours at 1 bar pressure
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Coupling Torque: Max 3.6 Nm (closing), Min 0.35 Nm (opening)
- Contact Retention Force: 35N
- Wire Stripping Length: 6.2 mm
- Ingress Protection: IP67/IP68
- Mating Force per Contact: 1.0N
Buy the Cannon Series CA Bayonet Connector: CA3102E14S2PB
Enhance your industrial or outdoor projects with the durable Cannon Series CA Bayonet Connector. Featuring IP67/IP68 sealing, salt spray resistance, and rugged aluminium construction, this connector supports high reliability in harsh environments. It supports 500 mating cycles with easy coupling torque, making installation straightforward. Designed with high-quality copper alloy contacts with silver plating, it ensures excellent conductivity and long-term performance. Perfect for use in demanding applications like automation, military, and outdoor equipment, ensuring safety and durability in every connection.
Order your Cannon Series CA Bayonet Connector CA3102E14S2PB today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy ITT CANNON CA3102E14S2PB?
You can click on the BUY or RFQ button to purchase CA3102E14S2PB from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part CA3102E14S2PB?
You can download the CA3102E14S2PB datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of CA3102E14S2PB?
ITT CANNON
