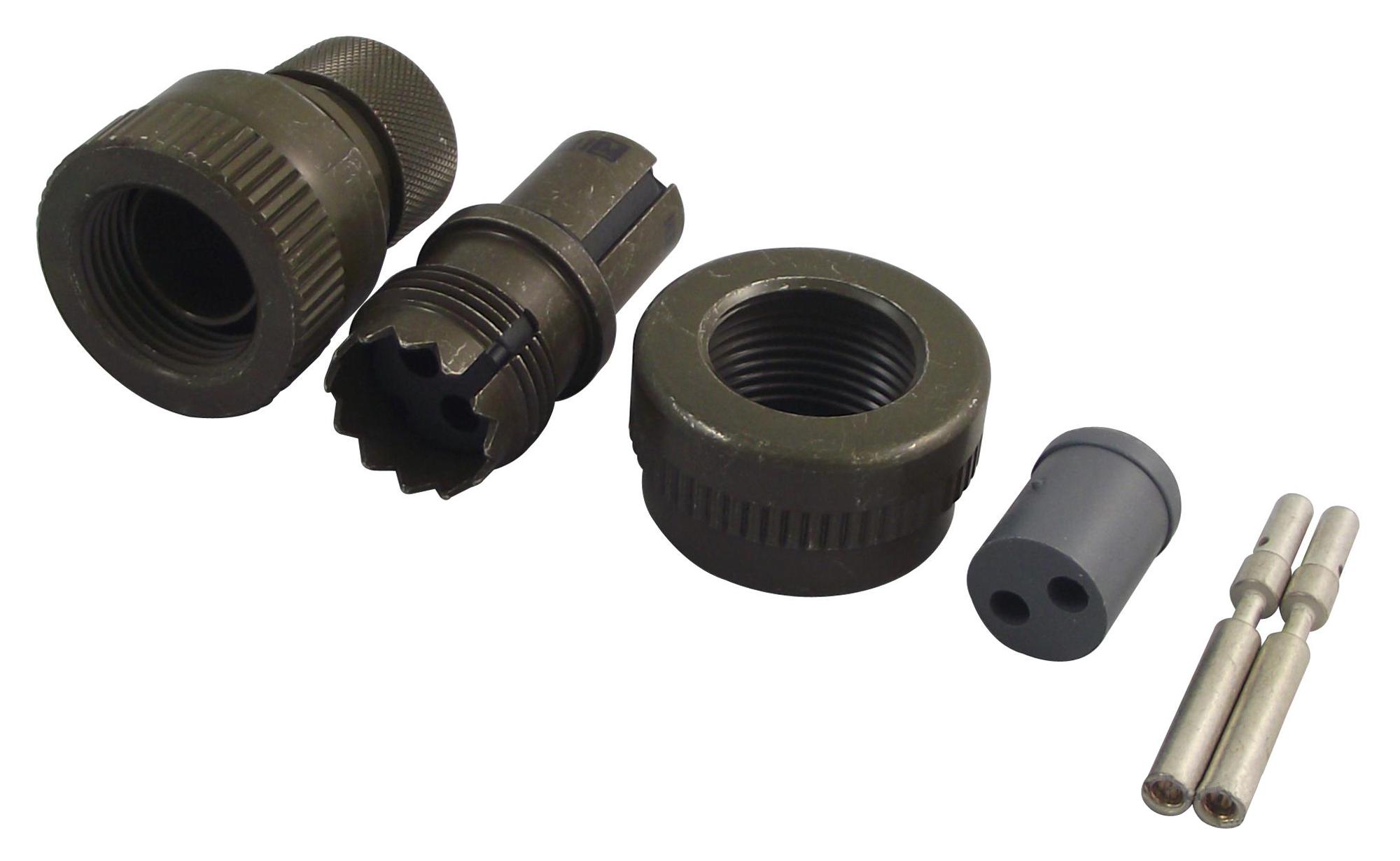

ITT CANNON CA3106E10SL4SF80DN Circular connector
The circular connector features a shell size of 10SL with 2 contacts of size 16S, designed for reliable connections in industrial applications. Made from durable aluminum alloy with olive drab chromate coating, it offers IP65 protection and resistance to salt spray for 500 hours. The connector supports up to 500 mating cycles and has a contact rating suitable for high performance at +20°C. It includes crimp-style contacts with hard silver plating, and the insulator is made from neoprene, ensuring excellent insulation and environmental resistance. Ideal for use in automation, communication, and control systems.
ITT CANNON CA3106E10SL4SF80DN Circular connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate coating
- Shell Size: 10SL
- Contact Arrangement: 10SL-4
- Number of contacts: 2 contacts, size 16S
- Contact Type: Crimp, AWG
- Contact Plating: Hard silver
- Contact Resistance: aan
- Operating Voltage: Suitable for voltages >50V when used per DIN VDE 410 and IEC 60364-4-41
- Insulator Resistance: >1000 MΩ according to VG95319 and VG95210 standards
- Test Voltage: 1600 Vrms
- Air and Creepage Paths: Min 1.4mm
- Ambient Temperature: -55°C to +125°C
- IP Rating: IP65 according to DIN 40050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500 min
- Coupling Torque (Closing): Max 1.7 Nm, (Opening): Min 0.15 Nm
- Shell Material: Aluminum alloy
- Shell Plating: Olive drab chromate over cadmium
- Insulator Material: Neoprene
- Contact Material: Copper alloy
- Wire Stripping Size: 6.2 mm
Buy the Buy Cannon Circular Connector Part Number CA3106E10SL4SF80DN Online
Secure reliable industrial connections with the Cannon circular connector featuring a durable aluminum shell, IP65 protection, and salt spray resistance for 500 hours. Designed with 2 crimp contacts of size 16S and a high-performance neoprene insulator, this connector supports up to 500 mating cycles, making it ideal for automation, control, and communication systems. Its rugged construction and precise coupling torque specifications ensure long-lasting, dependable performance in harsh environments. Order online now for fast delivery and professional-grade quality.
Order your Cannon Series CA3106E10SL4SF80DN today and ensure your industrial connections are secure, IP65 rated, salt spray resistant, and built for high performance.
Frequently Asked Questions
Where can I buy ITT CANNON CA3106E10SL4SF80DN?
You can click on the BUY or RFQ button to purchase CA3106E10SL4SF80DN from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part CA3106E10SL4SF80DN?
You can download the CA3106E10SL4SF80DN datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of CA3106E10SL4SF80DN?
ITT CANNON
