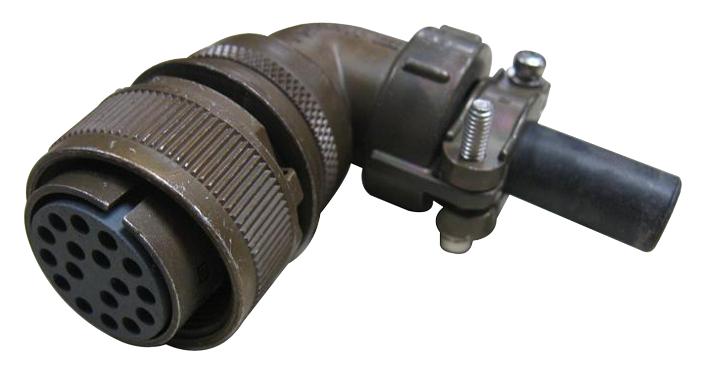

ITT CANNON CA3108E181P Circular Connector
The CA3108E18-1P from ITT Cannon is a MIL-DTL-5015 compliant right-angle circular connector with 10 solder cup contacts, designed for high durability and environmental resistance. Featuring a threaded coupling with quick mating for secure locking, this connector ensures reliable performance in shock, vibration, and harsh conditions. It supports up to 500 mating cycles and is rated IP67, IP68, and IP69k for water and dust resistance. Made with an aluminum alloy shell coated in olive drab chromate over cadmium plating, it withstands temperatures from -55°C to +125°C. Ideal for industrial automation, military, and aerospace applications, it offers high-performance connectivity in compact designs.
ITT CANNON CA3108E181P Circular Connector Specifications:
- Shell Material: Aluminium alloy with olive drab chromate coating over cadmium plating
- Contact Material: Copper alloy with silver plating
- Number of Contacts: 10
- Contact Type: Solder cup
- Contact Resistance: Not specified
- Operating Voltage: 50 VAC
- Insulator Resistance: > 1000 MΩ
- Test Voltage: 1600 Vrms
- Durability: 500 mating cycles
- Environmental Resistance: IP67, IP68, IP69k, salt spray resistant for 500 hours
- Temperature Range: -55°C to +125°C
- Coupling: Threaded with quick mating, coupling torque max 8 Nm
- Gage: See VG95234 catalog
- Wire Stripping: 6.2 mm
- Mating Cycles: 500 minimum
- Sealing: IP65
- Shell Style: Endbell with clamp and bushing
- Size: 18 shell size, thread style
Buy the ITT CA3108E18-1P – Reliable Circular Connector for Industrial Applications
Purchase the ITT CA3108E18-1P online today and ensure robust, high-performance connectivity for your industrial, military, or aerospace projects. This connector features a rugged aluminium shell with corrosion-resistant plating, 10 solder cup contacts, and a threaded coupling system, providing reliable locking and sealing against dust and water. Capable of withstanding 500 mating cycles and operating from -55°C to +125°C, it offers excellent durability. Ideal for high-density applications where secure and durable electrical connections are paramount, streamlining your assembly process with ease.
Buy ITT CA3108E18-1P now and experience unmatched durability, environmental resistance, and secure connections in demanding industrial and military settings.
Frequently Asked Questions
Where can I buy ITT CANNON CA3108E181P?
You can click on the BUY or RFQ button to purchase CA3108E181P from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part CA3108E181P?
You can download the CA3108E181P datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of CA3108E181P?
ITT CANNON
