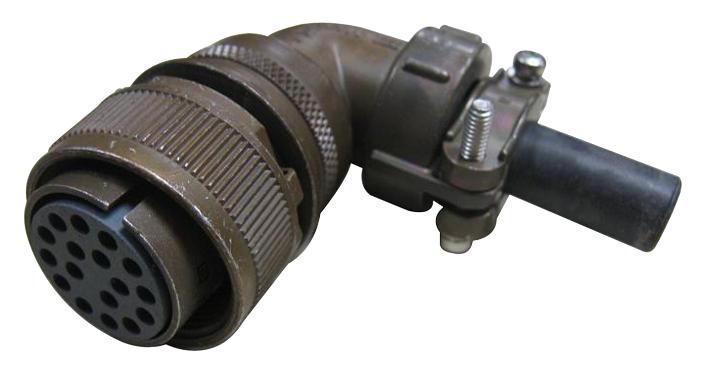

ITT CANNON CA3108E2411SBF80 Industrial Circular Connector
The CA3108E24-11SBF80 is a robust circular bayonet connector designed for industrial applications requiring reliable durability and water resistance. Featuring shell size 24 and a 24-11 contact arrangement, it includes a shell style plug with a 90° endbell with clamp and bushing. Made from aluminum alloy with olive drab chromate over cadmium plating, the connector offers IP67/IP68 safety ratings, salt spray resistance up to 500 hours, and specifications ideal for environments demanding high performance and longevity in electrical connections. Its copper alloy contacts are hard silver plated, ensuring stable electrical contact and low resistance over many mating cycles.
ITT CANNON CA3108E2411SBF80 Industrial Circular Connector Specifications:
- Shell Size: 24
- Contact Arrangement: 24-11
- Number of contacts: 3 contacts size 8, 6 contacts size 12
- Contact Type: AWG Crimp
- Contact Plating: Hard silver
- Shell Material: Aluminum alloy
- Shell Plating: Olive drab chromate over cadmium plating
- Wire Cross Section: AWG 8, AWG 14/12
- Operating Voltage: Corresponds to DIN VDE part 410, IEC 60364-4-41 at voltages >50V
- Insulator Resistance: >1000 MO
- Test Voltage: 2000 Vrms
- Air and Creepage Path: 1.4mm
- Ambient Temperature: -55°C to +125°C
- Safety Ratings: IP67 and IP68 (1 bar pressure for 12 hrs)
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Separation Force: 1.5N per contact for sizes 25/12, 3.0N for others
- Coupling Torque: Closing 14 Nm max, Opening 0.8 Nm min
- Contact Retention: 55N for sizes 25/12, 80N for sizes 60/100/8
- Gasket: CR-Elastomere
- Wire Stripping: 6.2mm for size 25/12, 14.8mm for size 60/100/8
Buy the Buy Cannon CA3108E24-11SBF80 Part Number CA3108E24-11SBF80 Online
Order the Cannon CA3108E24-11SBF80 online today to ensure your industrial systems are equipped with high-quality, corrosion-resistant, and durable circular connectors. This connector features a rugged aluminum shell with olive drab chromate over cadmium plating, providing excellent environmental resistance, IP67/IP68 safety ratings, and salt spray tolerance. It offers reliable crimp contacts, a high number of mating cycles, and easy wire stripping, making it ideal for demanding industrial, automation, and control applications where performance and longevity are critical.
Get Cannon CA3108E24-11SBF80 today—designed for industrial durability, high resistance to corrosion, and reliable electrical connections.
