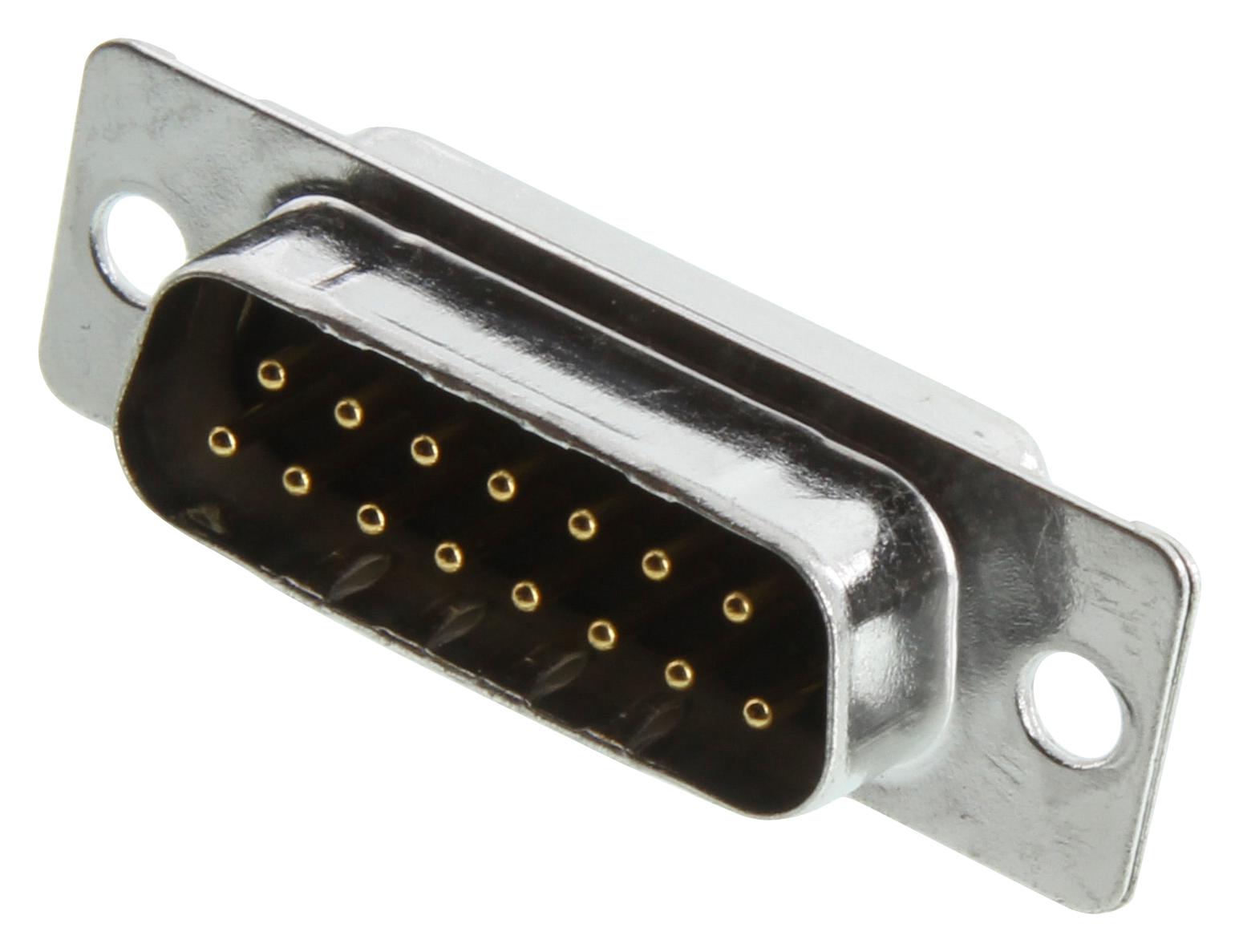

ITT CANNON DA15PA191K87 D Sub Connector
The DA-15P-A191-K87 is a high-quality, reliable 15-pin male D Sub connector designed for robust industrial applications. It features a copper alloy contact with gold over nickel finish, solder pot termination, and a thermoplastic insulator rated UL 94V-0. The shell is made of steel with tin finish, ensuring durability and corrosion resistance. Suitable for various electronics and automation systems, it withstands up to 200 mating cycles, operates between -55°C to +125°C, and supports a current rating of 7.5 A at 85°C and 5 A at 105°C, making it ideal for demanding environments.
ITT CANNON DA15PA191K87 D Sub Connector Specifications:
- Number of contacts: 15
- Contact size: 20 AWG
- Contact material: Copper alloy
- Contact finish: Gold over nickel
- Contact resistance: 10 milli Ohm max
- Mating cycles: 200
- Voltage rating: 1200 VAC at sea level
- Current rating: 7.5 A at 85°C and 5 A at 105°C
- Operating temperature: -55°C to +125°C
- Shell material: Steel
- Shell finish: Tin
- Insulator material: Thermoplastic, UL 94V-0
- Insulator color: Black
- Mounting method: Through hole, 120 inch (3.05mm)
- Dielectric withstanding voltage: 1200 VAC
Buy the Cannon DA-15P-A191-K87 – Reliable D Sub Connector for Industrial Applications
Purchase the Cannon DA-15P-A191-K87 D Sub connector online today and ensure reliable connectivity for your electronic and industrial projects. This 15-pin male connector features durable copper contacts with gold over nickel finish, solder pot termination, and steel shell with tin finish, guaranteeing resistance to corrosion and mechanical stress. Designed to withstand extreme temperatures from -55°C to +125°C and up to 200 mating cycles, it supports a 7.5 A current rating at 85°C, making it perfect for demanding industrial and automation applications. Order now for fast delivery and lasting performance.
Get Cannon DA-15P-A191-K87 today—built for precision and long-lasting durability in demanding industrial environments.
