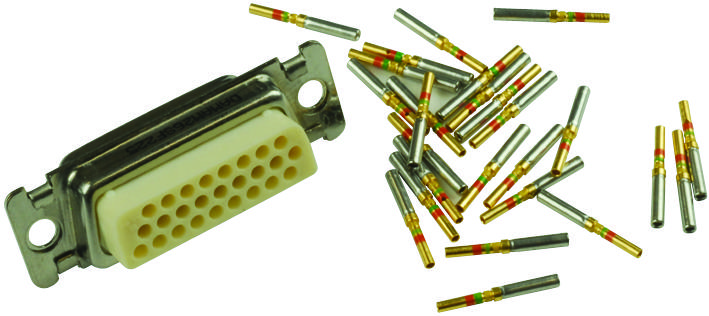

ITT CANNON DAMAM26SF225 D-Sub Connector
The product is a high-reliability D-Sub connector designed for crimp termination with excellent durability and corrosion resistance. It features 26 contacts, compatible with wire gauges AWG 20-28, and supports up to 500 mating cycles. The stainless steel shell has passivated surface finish for enhanced durability, and the thermoplastic insulator is UL 94V-0 rated, providing reliable insulation and mechanical support. Suitable for demanding electrical and electronic applications, it withstands voltages up to 1000 VAC and temperatures from -55°C to +150°C, ensuring long-lasting performance.
ITT CANNON DAMAM26SF225 D-Sub Connector Specifications:
- Contact Arrangement: 26 contacts, size 20 high density or 22 high density
- Wire Gauge Range: AWG 20-28 (standard), AWG 22-28 (high density)
- Mating Cycles: 500
- Contact Resistance: 10 milli Ohm max
- Current Rating: 7.5 A max
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Operating Temperature: -55°C to +150°C
- Shell Material: Passivated stainless steel
- Shell Finish: Stainless steel
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel (Performance Class 2)
- Hardware: 120 inch (3.05mm) through hole
- Salt Spray Resistance: 48 hours (96 hours for stainless steel)
Buy the Cannon Series D*MA D-Sub Connector: DAMAM26SF225
Purchase the Cannon Series D-Sub Connector DAMAM26SF225 online today for dependable high-performance connections. Featuring 26 crimp contacts made of copper alloy with gold over nickel finish, it supports wire gauges AWG 20-28 and withstands up to 500 mating cycles. The stainless steel shell provides excellent durability and corrosion resistance, ideal for demanding environments. With a dielectric withstand voltage of 1000 VAC and operating temperature up to 150°C, this connector ensures safety and longevity in industrial, military, and aerospace applications. Buy now for quality you can trust!
Order your Cannon Series D*MA D-Sub connector DAMAM26SF225 today and ensure reliable, high-performance electrical connections for your projects.
Frequently Asked Questions
Where can I buy ITT CANNON DAMAM26SF225?
You can click on the BUY or RFQ button to purchase DAMAM26SF225 from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DAMAM26SF225?
You can download the DAMAM26SF225 datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DAMAM26SF225?
ITT CANNON
