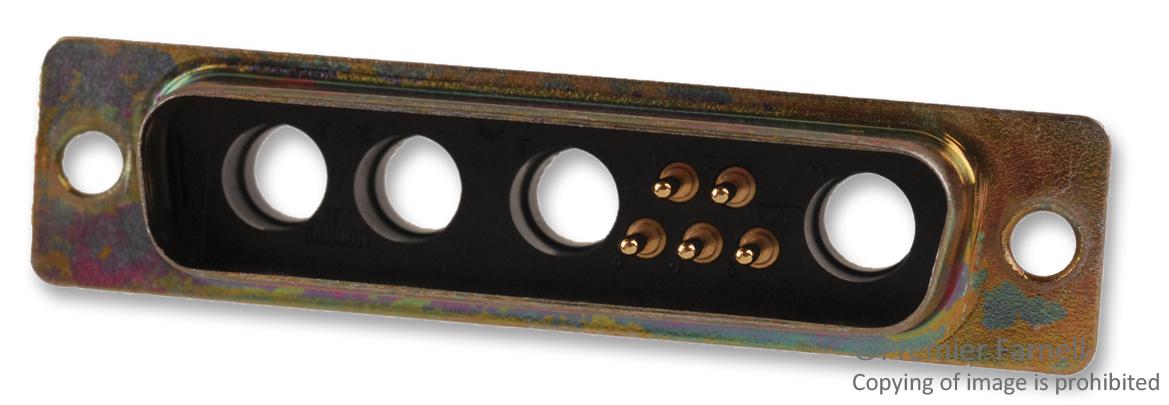

ITT CANNON DBM9W4PK87 D-Subminiature Connector
The Cannon Combo D Series DBM-9W4P-K87 is a reliable D-Subminiature connector featuring mixed layouts with 9W4 contact arrangement, including 5 contacts size 20 and 4 empty cavities size 8. Designed for durability, it has a steel shell with pure tin over nickel finish, thermoplastic insulators rated UL 94V-0, and operates within -55°C to +125°C. The connector supports wire gauge from AWG 8 to 26, with a dielectric withstand voltage of 500 VAC, making it ideal for various industrial and electronic applications requiring secure, high-quality connections.
ITT CANNON DBM9W4PK87 D-Subminiature Connector Specifications:
- Contact Arrangement: 9W4 (5 contacts size 20, 4 empty cavities size 8)
- Wire Gauge Range: AWG 8-26
- Dielectric Withstanding Voltage: 500 VAC at sea level
- Current Rating Signal Contacts: 7.5 A maximum
- Operating Temperature: -55°C to +125°C
- Shell Material: Steel
- Shell Finish: Pure tin over nickel
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Mounting Method: -120" (3.05mm) Through Hole
- Gender: Pin
- Delivery includes: Without size 8 contacts, order separately
Buy the Buy Cannon D-Sub Series Combo D Part Number DBM-9W4P-K87 Online
Discover the reliable Cannon D-Subminiature Connector with mixed layouts, steel shell, and thermoplastic insulators, rated for operating temperatures from -55°C to +125°C. Ideal for industrial and electronic applications, it features a contact arrangement of 9W4 with mixed contact sizes, supporting wire gauge ranges from AWG 8 to 26, and withstanding dielectric voltage of 500 VAC. Secure your connection needs by ordering this durable connector online for enhanced performance and long-lasting use.
Buy Cannon DBM-9W4P-K87 now and experience reliable high-performance connections suitable for industrial wiring and electronic systems.
