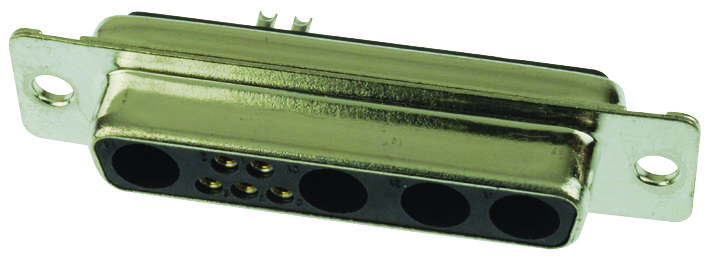

ITT CANNON DBM9W4SA197 D-Sub Connector
The DBM9W4SA197 is a 5-way solder type D-sub receptacle designed for reliable electrical connections in industrial environments. It features a black thermoplastic insulator and a tin-plated steel shell for durability and corrosion resistance. Compatible with the Combo D series, it supports wire gauges from 26 to 8 AWG, ensuring versatile wiring options. Rated for a dielectric withstand voltage of 500VAC at sea level, it functions effectively within a temperature range of -55°C to +125°C. Ideal for applications demanding high voltage and robust performance.
ITT CANNON DBM9W4SA197 D-Sub Connector Specifications:
- Wire Gauge Range: 26-8 AWG
- Contact Arrangement: 5 contacts (size 20) with 4 empty cavities
- Dielectric Withstanding Voltage: 500 VAC at sea level
- Operating Temperature: -55°C to +125°C
- Shell Material: Steel
- Shell Finish: Tin
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Mounting Method: Through Hole, 3.05 mm
- Gender: Socket
- Flammability Rating: UL 94V-0
- Salt Spray Test Duration: 20 hours
Buy the Cannon Series COMBO D D-Sub Connector: DBM9W4SA197
Purchase the Cannon DBM9W4SA197 D-Sub connector online today to ensure reliable performance in industrial environments. Featuring a durable steel shell with a tin finish and a thermoplastic insulator, this 5-way solder receptacle offers excellent electrical insulation and corrosion resistance. Its support for wire gauges from 26 to 8 AWG makes it versatile for various wiring needs. With a dielectric withstand voltage of 500VAC at sea level and a broad temperature range of -55°C to +125°C, it is ideal for demanding industrial applications demanding high voltage and robust durability.
Get Cannon DBM9W4SA197 today—built for precision and long-lasting durability in electrical connectivity and industrial applications.
