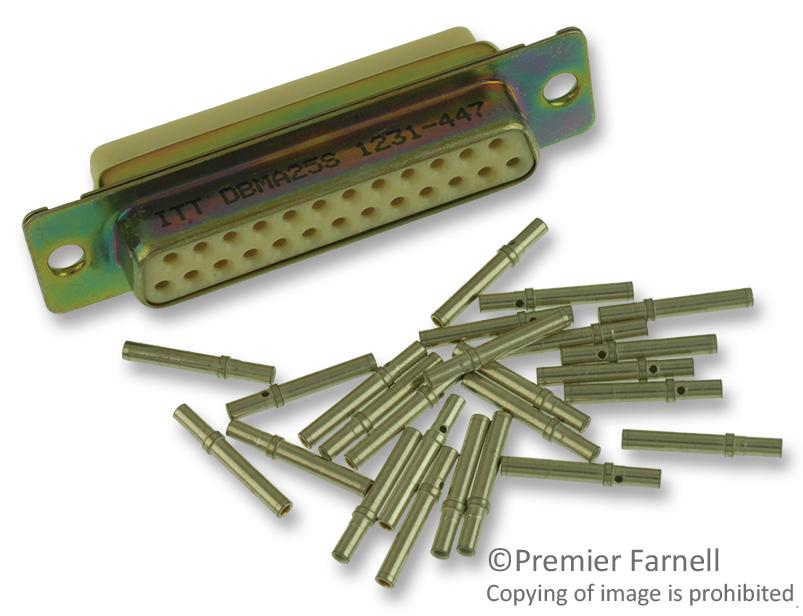

ITT CANNON DBMA25S D-Sub Connector
The DBMA25S is a robust 25-contact D-sub receptacle designed for reliable electrical connections in industrial environments. Featuring gold-plated copper alloy contacts for excellent conductivity, it has a durable tin-plated steel shell for enhanced protection. The black thermoplastic insulator with UL 94V-0 rating ensures safety and insulation. Compatible with wire gauges from 20 to 28 AWG, it supports up to 7.5 A current, withstands voltages of 1000 VAC at sea level, and operates across a wide temperature range from -55°C to +125°C. This high-reliability connector is suitable for demanding control and instrumentation applications.
ITT CANNON DBMA25S D-Sub Connector Specifications:
- Contact Quantity: 25 contacts, size 20
- Contact Material: Copper alloy with gold over nickel finish
- Shell Material: Steel with tin plating
- Wire Range: AWG 20-28 (standard), AWG 22-28 (high density)
- Current Rating: 7.5 A maximum
- Dielectric Withstanding Voltage: 1000 VAC at sea level
- Operating Temperature: -55°C to +125°C
- Mating Cycles: 200
- Insulator Material: Thermoplastic, UL 94V-0 rated
- Insulator Color: Black
- Hardware: 120-inch (3.05mm) through hole
- Shell Finish: Tin
- Gender: Socket
- Contact Type: Crimp
- Salt Spray Test: 24 hours
Buy the Cannon Series D*MA D-Sub: DBMA25S
Experience reliable industrial connectivity with the Cannon D-Sub connector, DBMA25S. Featuring gold-plated contacts and a durable steel shell, it ensures high-performance connections. Accepts 20-28 AWG wires, supports 7.5 A current, withstands 1000 VAC, and operates across -55°C to +125°C temperatures. Perfect for control systems, instrumentation, and automation, this connector provides superior durability, precise crimps, and excellent electrical isolation, making it an essential choice for demanding industrial applications requiring long-lasting performance.
Get Cannon DBMA25S today—built for precision, durability, and reliable performance in industrial environments.
