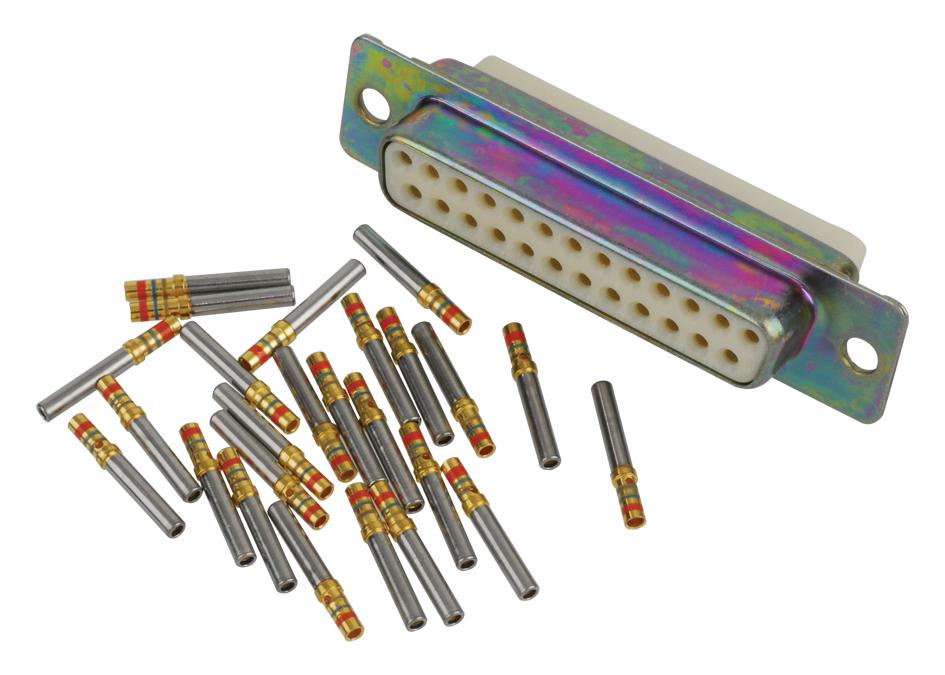

ITT CANNON DBMAM25S D-Sub Connector
The DBMAM25S is a 25-way crimp D-sub connector with gold-plated copper alloy contacts, a durable steel shell with yellow chromate finish, and a black thermoplastic insulator. Designed for high reliability in industrial environments, it supports wire gauges from AWG 20 to 28 and withstands dielectric voltage of 1000VAC at sea level. Rated for 500 mating cycles, it features a compact design, MIL-C-24308 compliance, and UL94V-0 flammability rating, making it ideal for electronic equipment, industrial control, and communication systems.
ITT CANNON DBMAM25S D-Sub Connector Specifications:
- Contact arrangement: 25 contacts size 20
- Wire Gauge Range: AWG 20-28
- Mating cycles: 500
- Dielectric withstand voltage: 1000 VAC at sea level
- Current Rating: 7.5 A maximum
- Contact Resistance: 10 milli Ohm max
- Operating Temperature: -55°C to +150°C
- Shell Material: Steel with yellow chromate over zinc finish
- Insulator Material: Thermoplastic, UL 94V-0
- Insulator Color: Black
- Contact Material: Copper alloy
- Contact Finish: Gold over nickel
- Hardware: 120'' (3.05mm) Through Hole
- Salt Spray Test Duration: 48 hours (96 hours for stainless steel)
- Certifications: Meets MIL-C-24308 standards
- Flammability Rating: UL94V-0
Buy the Cannon Series D*MA D-Sub Connector: DBMAM25S
Order the Cannon DBMAM25S high-reliability 25-way crimp D-Sub connector online today. Featuring gold-plated contacts, a steel shell with corrosion-resistant finish, and a thermoplastic insulator, it ensures durable performance in demanding industrial environments. With support for wire gauges from AWG 20 to 28, withstands dielectric voltage of 1000VAC, and rated for 500 mating cycles, this connector is ideal for industrial control, communication, and electronic systems. Purchase now for fast delivery and trusted quality.
Buy Cannon DBMAM25S now and experience unmatched reliability and performance in industrial electronic connections.
Frequently Asked Questions
Where can I buy ITT CANNON DBMAM25S?
You can click on the BUY or RFQ button to purchase DBMAM25S from an authorized ITT CANNON distributor.
How do I troubleshoot issues or seek technical support for part DBMAM25S?
You can download the DBMAM25S datasheet or visit the ITT CANNON website for support.
Who is the manufacturer of DBMAM25S?
ITT CANNON
